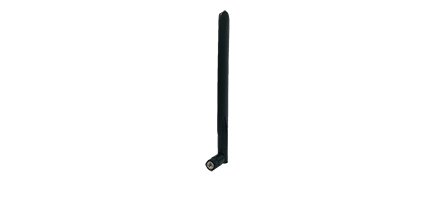

ANT-LTEUS-ASM-01
GSM/GPRS/EDGE/UMTS/HSPA/LTE, 1 dBi, omni-directional, rubber duck antenna
Datasheet Link : ANT-LTEUS-ASM-01
- Small size for compact fit
- Lightweight for portable deployment
- Tilt and swivel design
- Flexible installation
- SMA connector (male) supported
| • Antenna Characteristics | |
| Frequency | 700/850/900/1700/1900/2600 MHz |
| Antenna Type | Omni-directional |
| Typical Antenna Gain | 1 dBi @ 698 to 960 MHz 2 dBi @ 1710 to 1990 MHz 2 dBi @ 2300 to 2400 MHz 2 dBi @ 2500 to 2700 MHz |
| Connector | SMA (male) |
| Impedance | 50 ohms |
| Polarization | Linear, vertical |
| HPBW/horizontal | 360° |
| V.S.W.R. | < 3 |
| • Physical Characteristics | |
| Weight | 26 g |
| Length | 205 mm |
| Radome Color | Black |
| Radome Material | Plastic |
| Installation | Straight mount |
| • Environmental Limits | |
| Operating Temperature | -30 to 75°C (-22 to 167°F) |
| Storage Temperature | -30 to 75°C (-22 to 167°F) |
| Ambient Relative Humidity | 5 to 95% (30°C, non-condensing) |
| • Warranty | |
| Warranty Period | 1 year |
