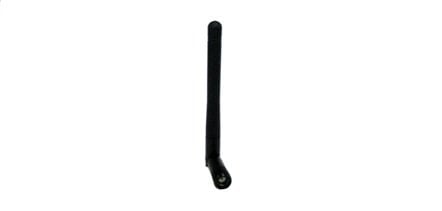

ANT-WDB-ARM-02
2.4/5.5 GHz 2 dBi dual-band antenna, RP-SMA (male) connector
ANT-WDB-ARM-02
2.4/5.5 GHz 2 dBi dual-band antenna, RP-SMA (male) connector
Datasheet Link: ANT-WDB-ARM-02
- Small size for compact fit
- Lightweight for portable deployment
- Tilt and swivel design
- Flexible installation
- RP-SMA connector (male) supported
| • Antenna Characteristics | |
| Frequency | 2.4 to 2.5 and 5.2 to 5.8 GHz |
| Antenna Type | Omni-directional |
| Typical Antenna Gain | 2 dBi at 2.4 GHz, 2 dBi at 5 GHz |
| Connector | RP-SMA (male) |
| Impedance | 50 ohms |
| Polarization | Linear, vertical |
| HPBW/horizontal | 360° |
| HPBW/vertical | 80° |
| V.S.W.R. | 2.0 max |
| • Physical Characteristics | |
| Weight | 10 g |
| Dimensions | Length=108 mm |
| Radome Color | Black |
| Radome Material | Plastic |
| Installation | Straight mount |
| • Environmental Limits | |
| Operating Temperature | -40 to 80°C (-40 to 176°F) |
| Storage Temperature | -40 to 80°C (-40 to 176°F) |
| Ambient Relative Humidity | 5 to 95% (30°C, non-condensing) |
| • Warranty | |
| Warranty Period | 1 year |
