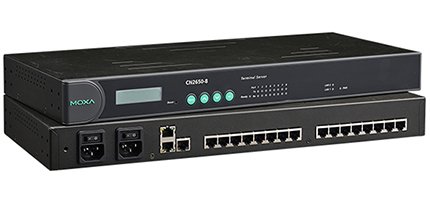

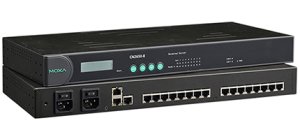

CN2610-16
8 and 16-port RS-232/422/485 terminal servers with dual-LAN redundancy
- LCD panel for easy IP address configuration (excluding wide temperature range models)
- Dual-LAN cards with two independent MAC addresses and IP addresses
- Redundant COM function available when both LANs are active
- Dual-host redundancy can be used to add a backup PC to your system
- Dual-AC-power inputs (for AC models only)
- Real COM/TTY drivers for Windows and Linux
- Universal high-voltage range: 100 to 240 VAC or 88 to 300 VDC
|
Dual-LAN terminal server with 8 RS-232 ports |
|
|
Dual-LAN, dual-AC-power terminal server with 8 RS-232 ports |
|
|
Dual-LAN terminal server with 16 RS-232 ports |
|
|
Dual-LAN, dual-AC-power terminal server with 16 RS-232 ports |
|
|
Dual-LAN terminal server with 8 RS-232/422/485 ports |
|
|
Dual-LAN, dual-AC-power terminal server with 8 RS-232/422/485 ports |
|
|
Dual-LAN, dual-AC-power terminal server with 8 RS-232/422/485 ports, -40 to 75°C operating temperature |
|
|
Dual-LAN terminal server with 16 RS-232/422/485 ports |
|
|
Dual-LAN, dual-AC-power terminal server with 16 RS-232/422/485 ports |
|
|
Dual-LAN, dual-AC-power terminal server with 16 RS-232/422/485 ports, -40 to 75°C operating temperature |
|
|
Dual-LAN terminal server with 8 RS-232/422/485 ports and 2 KV optical isolation |
|
|
Dual-LAN, dual-AC-power terminal server with 8 RS-232/422/485 ports and 2 KV optical isolation |
|
|
Dual-LAN terminal server with 8 RS-232/422/485 ports and 2 kV optical isolation, 88 to 300 VDC power input, -40 to 85°C operating temperature |
|
|
Dual-LAN terminal server with 16 RS-232/422/485 ports and 2 KV optical isolation |
|
|
Dual-LAN, dual-AC-power terminal server with 16 RS-232/422/485 ports and 2 KV optical isolation |
|
|
Dual-LAN terminal server with 16 RS-232/422/485 ports and 2 kV optical isolation, 88 to 300 VDC power input, -40 to 85°C operating temperature |
| • Ethernet Interface | |
| Number of Ports | 2 (2 IPs) |
| Speed | 10/100 Mbps, auto MDI/MDIX |
| Connector | 8-pin RJ45 |
| Magnetic Isolation | 1.5 kV built-in |
| • Serial Interface | |
| Number of Ports | 8 or 16 |
| Serial Standards | CN2610: RS-232 CN2650/2650I: RS-232/422/485 |
| Connector | CN2610/2650: 8-pin RJ45 CN2650I: DB9 male |
| Serial Line Protection | 2 kV optical isolation (CN2650I) |
| RS-485 Data Direction Control | ADDC® (Automatic Data Direction Control) |
| Console Port | Dedicated RS-232 console port on rear panel (8-pin RJ45) |
| • Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, DTR/DSR, XON/XOFF |
| Baudrate | 50 bps to 921.6 kbps |
| Pull High/Low Resistor for RS-485 | 1 kΩ, 150 kΩ |
| Terminator for RS-485 | 120 Ω |
| • Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| • Software | |
| Network Protocols | ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP, HTTP, SMTP, ARP, PPPoE, DDNS |
| Security Protocols | RADIUS, HTTPS, SSH, PAP, CHAP |
| Configuration Options | Web Console, Serial Console, Telnet Console, Windows Utility |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Fixed TTY Drivers | SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Linux Real TTY Drivers | Linux 2.4.x, 2.6.x, 3.x, 4.x |
| Android API | Android 3.1.x and later |
| Management | SNMP MIB-II |
| IP Routing | Static, RIP-I, RIP-II |
| • Operation Modes | |
| Standard | Real COM, TCP Server, TCP Client, UDP, RFC2217, Terminal, Reverse Telnet, PPP, DRDAS, Redundant COM, Disabled |
| • Applications | |
| Terminal Sessions | 8 sessions per port |
| • Physical Characteristics | |
| Housing | Metal |
| Weight | CN2610-8-2AC: 2,560 g (5.64 lb) CN2610-16-2AC: 2,640 g (5.82 lb) CN2650-8: 2,410 g (5.31 lb) CN2650-16: 2,460 g (5.42 lb) CN2650-8-2AC: 2,560 g (5.64 lb) CN2650-16-2AC: 2,640 g (5.82 lb) CN2650I-8: 3,666 g (8.08 lb) CN2650I-16: 3,776 g (8.32 lb) CN |
| Dimensions | Without ears: 440 x 198 x 45.5 mm (17.32 x 7.80 x 1.77 in) With ears: 480 x 198 x 45.5 mm (18.9 x 7.80 x 1.77 in) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) High-Voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F) |
| Storage Temperature | Standard Models: -40 to 75°C (-40 to 167°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) High-Voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Power Requirements | |
| Input Voltage | AC Models: 100 to 240 VAC, 47 to 63 Hz DC Models: 110 VDC (88 to 300 VDC) |
| Input Current | CN2600 AC models: 130 mA @ 110 VAC, 47 to 63 Hz CN2650I HV models: 200 mA @ 88 VDC |
| • Standards and Certifications | |
| Safety | UL 60950-1 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | AC models: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2.5 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m |
| Freefall | IEC-68-2-34, IEC-68-2-32 |
| Vibration | IEC-68-2-6 |
| Green Product | RoHS, CRoHS, WEEE |
| • Reliability | |
| Alert Tools | Built-in buzzer and RTC (real-time clock) |
| Automatic Reboot Trigger | Built-in WDT (watchdog timer) |
| • MTBF (mean time between failures) | |
| Time | CN2610-8: 831,925 hrs CN2610-16: 639,332 hrs CN2610-8-2AC: 773,268 hrs CN2610-16-2AC: 604,346 hrs CN2650-8 series: 657,123 hrs CN2650-16 series: 457,175 hrs CN2650-8-2AC: 773,268 hrs CN2650-16-2AC: 442,699 hrs CN2650I-8 series: 190,562 hrs CN2650I-16 |
| Standard | Telcordia (Bellcore) Standard TR/SR |
| • Warranty | |
| Warranty Period | 5 years |
