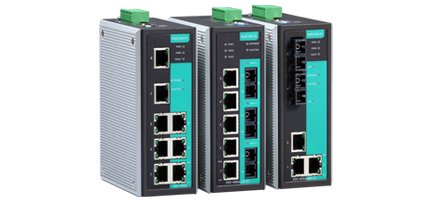

EDS-405A-SS-SC-T
5-port entry-level managed Ethernet switches
EDS-405A serisi, özellikle endüstriyel uygulamalar için tasarlanmış giriş seviyesi 5 portlu yönetilebilir ethernet anahtarlardır. Turbo Ring, Turbo Chain, Port Mirroring, Ring Coupling, IGMP, IEEE 802.1Q VLAN, port tabanlı VLAN, QoS, RMON, bant genişliği yönetimi gibi çeşitli yönetim fonksiyonlarını destekler. Kullanıma hazır Turbo Ring, web tabanlı yönetim arabirimi kullanılarak veya EDS-405A anahtarlarının üst panelinde bulunan DIP Switch kullanılarak kolayca kurulabilir.
- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
- IGMP Snooping, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
- Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
- PROFINET or EtherNet/IP enabled by default (PN or EIP models)
- Supports MXstudio for easy, visualized industrial network management
ÜRÜN SİPARİŞ KODLARI :
|
Entry-level managed Ethernet switch with 5 10/100BaseT(X) ports, 0°C to 60°C operating temperature |
|
|
Entry-level managed Ethernet switch with 5 10/100BaseT(X) ports, -40 to 75°C operating temperature |
|
|
Entry-level managed Ethernet switch with 3 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with SC connectors, 0 to 60°C operating temperature |
|
|
Entry-level managed Ethernet switch with 3 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with SC connectors, -40 to 75°C operating temperature |
|
|
Entry-level managed Ethernet switch with 3 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with ST connectors, 0 to 60°C operating temperature |
|
|
Entry-level managed Ethernet switch with 3 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with ST connectors, -40 to 75°C operating temperature |
|
|
Entry-level managed Ethernet switch with 3 10/100BaseT(X) ports, and 2 100BaseFX single-mode ports with SC connectors, 0 to 60°C operating temperature |
|
|
EDS-405A-SS-SC-T |
Entry-level managed Ethernet switch with 3 10/100BaseT(X) ports, and 2 100BaseFX single-mode ports with SC connectors, -40 to 75°C operating temperature |
| Toplam Port Sayısı | : | 5 |
| Çalışma Sıcaklığı | : | -40/+75C |
| 10/100BaseT(X) | : | 3 |
| 100BaseFX SFP | : | 2 |
| • Technology | |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for Flow Control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid STP IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging |
| • Software Features | |
| Management | IPv4/IPv6, SNMP v1/v2c/v3, LLDP, Port Mirror, RMON, DHCP Server/Client, DHCP Option 66/67/82, BootP, TFTP, SMTP, RARP, Telnet, Syslog, SNMP Inform, Flow Control, Back Pressure Flow Control |
| Filter | 802.1Q VLAN, Port-Based VLAN, GVRP, IGMP v1/v2, GMRP |
| Redundancy Protocols | STP, RSTP, Turbo Ring v1/v2, Turbo Chain |
| Time Management | SNTP, NTP Server/Client |
| Industrial Protocols | EtherNet/IP, Modbus/TCP |
| MIB | MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9 |
| • Switch Properties | |
| MAC Table Size | 2 K (EDS-405A), 8 K (EDS-408A) |
| Packet Buffer Size | 1 Mbit |
| • Interface | |
| RJ45 Ports | 10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection |
| Fiber Ports | 100BaseFX ports (SC/ST connector) |
| Console Port | RS-232 (RJ45 connector) |
| DIP Switches | Turbo Ring, Master, Coupler, Reserve |
| Alarm Contact | 1 relay output with current carrying capacity of 1 A @ 24 VDC |
| • Optical Fiber | |
| Table | |
| • Power Requirements | |
| Input Voltage | 24 VDC, redundant dual inputs |
| Operating Voltage | 12 to 45 VDC |
| Input Current | EDS-405A, EDS-405A-EIP, EDS-405A-PN: 0.20 A @ 24 V EDS-405A-MM/SS: 0.28 A @ 24 V EDS-408A, EDS-408A-EIP, EDS-408A-PN: 0.22 A @ 24 V EDS-408A-MM/SS: 0.31 A @ 24 V EDS-408A-3M/3S/2M1S/1M2S: 0.32 A @ 24 V |
| Overload Current Protection | Present |
| Connection | 1 removable 6-contact terminal block |
| Reverse Polarity Protection | Present |
| • Physical Characteristics | |
| Housing | Metal |
| IP Rating | IP30 protection |
| Dimensions | 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in) |
| Weight | EDS-405A, EDS-405A-MM, EDS-405A-SS, EDS-405A-PN, EDS-405A-EIP: 650 g (1.44 lb) EDS-408A, EDS-408A-MM, EDS-408A-SS, EDS-408A-PN, EDS-408A-EIP: 650 g (1.44 lb) EDS-408A-3M/3S/2M1S/1M2S: 890 g (1.97 lb) |
| Installation | DIN-rail mounting, wall mounting (with optional kit) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Standards and Certifications | |
| Safety | UL 508, UL 60950-1*, CSA C22.2 No. 60950-1, EN 60950-1** |
| Hazardous Location | UL/cUL Class 1 Division 2 Groups A/B/C/D*, ATEX Zone 2 Ex nA nC IIC T4 Gc***, ATEX Zone 2 Ex nA nC op is IIC T4 Gc**** |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 |
| Traffic Control | NEMA TS2 |
| Rail Traffic | EN 50121-4** |
| Marine | EDS-405A/408A, EDS-405A/408A 2 Fiber series: DNV, GL EDS-408A 3 Fiber series: DNV, GL, LR, ABS, NK |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| *EDS-405A/408A, EDS-405A/408A 2 Fiber series only**EDS-408A only ***EDS-405A, EDS-405A 2 Fiber series only ****EDS-408A, EDS-408A 2 Fiber series only Note | Please check Moxa’s website for the most up-to-date certification status. |
| • MTBF (mean time between failures) | |
| Time | EDS-405A Series: 852,421 hrs EDS-408A Series: 1,102,845 hrs |
| Standard | Telcordia (Bellcore), GB |
| • Warranty | |
| Warranty Period | 5 years |
