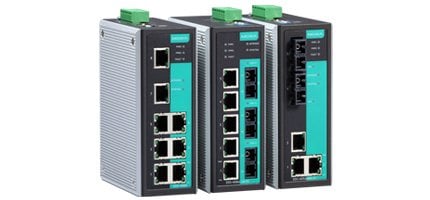

EDS-508A-MM-SC-T
8-port managed Ethernet switches
- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches)
- RSTP/STP, and MSTP for network redundancy
- TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
- Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
- Supports MXstudio for easy, visualized industrial network management
|
Managed Ethernet switch with 8 10/100BaseT(X) ports, 0 to 60°C operating temperature |
|
|
Managed Ethernet switch with 8 10/100BaseT(X) ports, -40 to 75°C operating temperature |
|
|
Managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with SC connectors, 0 to 60°C operating temperature |
|
|
Managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with SC connectors, -40 to 75°C operating temperature |
|
|
Managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with ST connectors, 0 to 60°C operating temperature |
|
|
Managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with ST connectors, -40 to 75°C operating temperature |
|
|
Managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX single-mode ports with SC connectors, 0 to 60°C operating temperature |
|
|
Managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX single-mode ports with SC connectors, -40 to 75°C operating temperature |
|
|
Managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX single-mode ports with SC connectors for 80 km transmission, 0 to 60°C operating temperature |
|
|
Managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX single-mode ports with SC connectors for 80 km transmission, -40 to 75°C operating temperature |
| Toplam Port Sayısı | : | 8 |
| Çalışma Sıcaklığı | : | -40/+75C |
| 10/100BaseT(X) | : | 6 |
| 100BaseFX SFP | : | 2 |
| • Technology | |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for Flow Control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid STP IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.1X for Authentication IEEE 802.3ad for Port Trunk with LACP |
| • Software Features | |
| Management | IPv4/IPv6, SNMP v1/v2c/v3, LLDP, Port Mirror, DDM, RMON, DHCP Server/Client, DHCP Option 66/67/82, BootP, TFTP, SMTP, RARP, Telnet, Syslog, SNMP Inform, Flow Control, Back Pressure Flow Control |
| Filter | 802.1Q VLAN, Port-Based VLAN, GVRP, IGMP v1/v2, GMRP |
| Redundancy Protocols | STP, RSTP, MSTP, Turbo Ring v1/v2, Turbo Chain, Link Aggregation |
| Time Management | SNTP, NTP Server/Client, IEEE 1588v2 PTP (software-based) |
| Industrial Protocols | EtherNet/IP, Modbus/TCP |
| MIB | MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9 |
| • Switch Properties | |
| Priority Queues | 4 |
| Max. Number of VLANs | 64 |
| VLAN ID Range | VID 1 to 4094 |
| IGMP Groups | 256 |
| MAC Table Size | 8 K |
| Packet Buffer Size | 1 Mbit |
| • Interface | |
| RJ45 Ports | 10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection |
| Fiber Ports | 100BaseFX ports (SC/ST connector) |
| Console Port | RS-232 (RJ45 connector) |
| DIP Switches | Turbo Ring, Master, Coupler, Reserve |
| Alarm Contact | 2 relay outputs with current carrying capacity of 1 A @ 24 VDC |
| Digital Inputs | 2 inputs with the same ground, but electrically isolated from the electronics. • +13 to +30 V for state '1” • -30 to +3 V for state '0” • Max. input current: 8 mA |
| • Optical Fiber | |
|
|
|
| • Power Requirements | |
| Input Voltage | 24 VDC, redundant dual inputs |
| Operating Voltage | 12 to 45 VDC |
| Input Current | EDS-505A: 0.21 A @ 24 VEDS-505A-MM/SS: 0.3 A @ 24 V EDS-508A: 0.22A @ 24 V EDS-508A-MM/SS: 0.31 A @ 24 V |
| Overload Current Protection | Present |
| Connection | 2 removable 6-contact terminal blocks |
| Reverse Polarity Protection | Present |
| • Physical Characteristics | |
| Housing | Metal |
| IP Rating | IP30 protection |
| Dimensions | .2 x 135 x 105 mm (3.16 x 5.31 x 4.13 in) |
| Weight | 1040 g (2.30 lb) |
| Installation | DIN-rail mounting, wall mounting (with optional kit) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Standards and Certifications | |
| Safety | UL 508, UL 60950-1, CSA C22.2 No. 60950-1, EN 60950-1 |
| Hazardous Location | UL/cUL Class 1 Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nA nC IIC T4 Gc |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kVIEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 |
| Marine | DNV, GL |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 Note: Please check Moxa’s website for the most up-to-date certification status. |
| • MTBF (mean time between failures) | |
| Time | EDS-505A Series: 352,000 hrs EDS-508A Series: 339,000 hrs |
| Standard | Telcordia (Bellcore), GB |
| • Warranty | |
| Warranty Period | 5 years |
