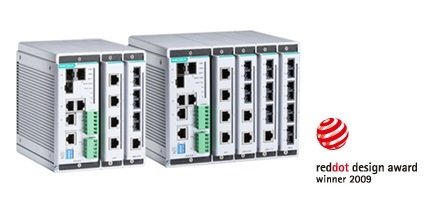

EDS-608-T
8-port compact modular managed Ethernet switches
- Up to 19 optical fiber connections in a compact switch (EDS-619)
- Modular design with 4-port copper/fiber combinations
- Hot swap media modules for continuous operation
- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy
- TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
- Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
- Supports MXstudio for easy, visualized industrial network management
|
Compact managed Ethernet switch system with 2 slots for 4-port fast Ethernet interface modules, for a total of up to 8 ports, 0 to 60°C operating temperature |
|
|
Compact managed Ethernet switch system with 2 slots for 4-port fast Ethernet interface modules, for a total of up to 8 ports, -40 to 75°C operating temperature |
|
|
Compact managed Ethernet switch system with 2 slots for 4-port fast Ethernet interface modules, for a total of up to 8+3G ports, 0 to 60°C operating temperature |
|
|
Compact managed Ethernet switch system with 2 slots for 4-port fast Ethernet interface modules, for a total of up to 8+3G ports, -40 to 75°C operating temperature |
|
|
Compact managed Ethernet switch system with 4 slots for 4-port fast Ethernet interface modules, for a total of up to 16 ports, 0 to 60°C operating temperature |
|
|
Compact managed Ethernet switch system with 4 slots for 4-port fast Ethernet interface modules, for a total of up to 16 ports, -40 to 75°C operating temperature |
|
|
Compact managed Ethernet switch system with 4 slots for 4-port fast Ethernet interface modules, for a total of up to 16+3G ports, 0 to 60°C operating temperature |
|
|
Compact managed Ethernet switch system with 4 slots for 4-port fast Ethernet interface modules, for a total of up to 16+3G ports, -40 to 75°C operating temperature |
|
ÜRÜNLER (-40/+75oC) |
Port Interface |
|||
|
10/100 BaseT(X) |
100BaseFX |
|||
|
Multi-Mode, SC Connector |
Multi-Mode, ST Connector |
Single-Mode, SC Connector |
||
|
4 |
||||
|
4 |
||||
|
4 |
||||
|
4 |
||||
|
4 |
||||
|
4 |
||||
|
1 |
3 |
|||
|
1 |
3 |
|||
|
1 |
3 |
|||
|
2 |
2 |
|||
|
2 |
2 |
|||
|
2 |
2 |
|||
|
Industrial network management software with a license for 50 nodes (by IP address) |
|
|
Industrial network management software with a license for 100 nodes (by IP address) |
|
|
Industrial network management software with a license for 250 nodes (by IP address) |
|
|
Industrial network management software with a license for 500 nodes (by IP address) |
|
|
Industrial network management software with a license for 1000 nodes (by IP address) |
|
|
Industrial network management software with a license for 2000 nodes (by IP address) |
|
|
License expansion of MXview industrial network management software by 50 nodes (by IP address) |
| Toplam Port Sayısı | : | 8 |
| Çalışma Sıcaklığı | : | -40/+75C |
| • Technology | |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3x for Flow Control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid STP IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.1X for Authentication IEEE 802.3ad for Port Trunk with LACP |
| • Software Features | |
| Management | IPv4/IPv6, SNMP v1/v2c/v3, LLDP, Port Mirror, DDM, RMON, DHCP Server/Client, DHCP Option 66/67/82, BootP, TFTP, SMTP, RARP, Telnet, Syslog, SNMP Inform, Flow Control, Back Pressure Flow Control |
| Filter | 802.1Q VLAN, Port-Based VLAN, GVRP, IGMP v1/v2, GMRP |
| Redundancy Protocols | STP, RSTP, MSTP, Turbo Ring v1/v2, Turbo Chain, Link Aggregation |
| Security | RADIUS, TACACS+, SSL, SSH, Broadcast Storm Protection, Port Lock |
| Time Management | SNTP, NTP Server/Client, IEEE 1588v2 PTP (software-based) |
| Industrial Protocols | EtherNet/IP, Modbus/TCP |
| MIB | MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9 |
| • Switch Properties | |
| Priority Queues | 4 |
| Max. Number of VLANs | 64 |
| VLAN ID Range | VID 1 to 4094 |
| IGMP Groups | 256 |
| MAC Table Size | 8 K |
| Packet Buffer Size | 1 Mbit |
| • Interface | |
| Fast Ethernet | 2 or 4 slots for any combination of 4-port interface modules, 10/100BaseT(X) or 100BaseFX |
| Gigabit Ethernet | 3 10/100/1000BaseT(X) with 100/1000BaseSFP combo slots (EDS-611 and EDS-619 only) |
| Console Port | RS-232 (RJ45 connector) |
| DIP Switches | Turbo Ring, Master, Coupler, Reserve |
| System LED Indicators | PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, G1/G2/G3 (EDS-611 and EDS-619 only) |
| Alarm Contact | 1 relay output with current carrying capacity of 1 A @ 24 VDC |
| Digital Inputs | 1 input with the same ground, but electrically isolated from the electronics. • +13 to +30 V for state '1” • -30 to +3 V for state '0” • Max. input current: 8 mA |
| • Power Requirements | |
| Input Voltage | 12/24/48 VDC, redundant dual inputs |
| Input Current | (without CM-600 modules installed) EDS-608: 0.16 A @ 24 V EDS-611: 0.31 A @ 24 V EDS-616: 0.25 A @ 24 V EDS-619: 0.31 A @ 24 V |
| Overload Current Protection | Present |
| Connection | 1 removable 5-contact and 1 removable 6-contact terminal block |
| Reverse Polarity Protection | Present |
| • Physical Characteristics | |
| IP Rating | IP30 protection |
| Dimensions | EDS-608/611 Series: 124.9 x 151 x 157.2 mm (4.92 x 5.95 x 6.19 in) EDS-616/619 Series: 185 x 151 x 157.2 mm (7.28 x 5.95 x 6.19 in) |
| Weight | EDS-608: 2080 g (4.59 lb) EDS-611: 2260 g (4.99 lb) EDS-616: 2780 g (6.13 lb) EDS-619: 2950 g (6.51 lb) |
| Installation | DIN-rail mounting, wall mounting (with optional kit) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Standards and Certifications | |
| Safety | UL 508, UL 60950-1, EN 60950-1 |
| Hazardous Location | UL/cUL Class 1 Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nA nC IIC T4 Gc |
| EMC | EN 55032/24, EN 61000-6-2/6-4 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: Signal: 10 V IEC 61000-4-8 |
| Traffic Control | NEMA TS2 |
| Rail Traffic | EN 50121-4 |
| Marine | DNV, GL, LR, ABS, NK |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 Note: Please check Moxa’s website for the most up-to-date certification status. |
| • MTBF (mean time between failures) | |
| Time | EDS-608: 596,219 hrs EDS-611: 483,344 hrs EDS-616: 546,937 hrs EDS-619: 475,816 hrs |
| Standard | Telcordia (Bellcore), GB |
| • Warranty | |
| Warranty Period | 5 years |
