MOXA

ICF-1150-M-SC-IEX

Stokta 0 Adet Var

366,00 EUR + KDV

Kategori

Seri-Fiber Çeviriciler , Tüm Ürünler

Datasheet

Döküman indir

Gelince Haber Ver

Fiyatı Düşünce Haber Ver

Karşılaştır

Ürün Bilgisi

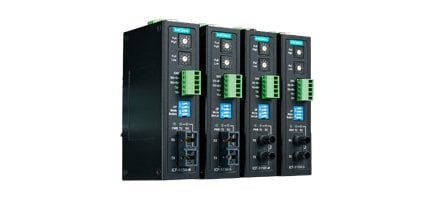

ICF-1150-M-SC-IEX

Industrial RS-232/422/485 to fiber converters

Moxa Seri-Fiber Dönüştürücü Karşılaştırma Tablosu

ICF-1150 serisi, RS-232 iletişimi için bir DB9 konnektörü ve RS-422 veya RS-485 iletişimi için çıkarılabilir terminal bloğu olmak üzere 2 seri bağlantı noktasını destekler. 3 port (2 seri port ve 1 fiber port) tamamen bağımsızdır. Bir ICF-1150 dönüştürücü herhangi bir porttan veri aldığında, verileri diğer 2 port üzerinden gönderir. Örneğin, ICF-1150 dönüştürücüsü fiber port üzerinden bir komut aldığında, sinyali dönüştürecek ve bu komutu RS-232 ve RS-422/485 portları üzerinden aynı anda gönderecektir. Kullanıcı bir RS-485 ağı üzerinde çalışan bir sistemi izliyorsa, dizüstü bilgisayarın seri portunu RS-485 portuna bağlamak için ek bir RS-232'den RS-485 dönüştürücüye ihtiyaç duymaz.

3-way communication: RS-232, fiber, and RS-422/485
Rotary switch to change the pull high/low resistor value
Extend RS-232/422/485 transmission up to:
40 km with single-mode
5 km with multi-mode
3-way isolation protection (for "I” models only)
-40 to 85°C wide temperature models available
C1D2, ATEX, and IECEx certified for harsh industrial environments

ÜRÜN SİPARİŞ KODLARI :

ICF-1150I-M-SC	Industrial RS-232/422/485 to multimode fiber converter, SC connector, 2 KV isolation, 0 to 60°C operating temperature
ICF-1150I-M-SC-T	Industrial RS-232/422/485 to multimode fiber converter, SC connector, 2 KV isolation, -40 to 85°C operating temperature
ICF-1150I-M-ST	Industrial RS-232/422/485 to multimode fiber converter, ST connector, 2 KV isolation, 0 to 60°C operating temperature
ICF-1150I-M-ST-T	Industrial RS-232/422/485 to multimode fiber converter, ST connector, 2 KV isolation, -40 to 85°C operating temperature
ICF-1150I-S-SC	Industrial RS-232/422/485 to single mode fiber converter, SC connector, 2 KV isolation, 0 to 60°C operating temperature
ICF-1150I-S-SC-T	Industrial RS-232/422/485 to single mode fiber converter, SC connector, 2 KV isolation, -40 to 85°C operating temperature
ICF-1150I-S-ST	Industrial RS-232/422/485 to single mode fiber converter, ST connector, 2 KV isolation, 0 to 60°C operating temperature
ICF-1150I-S-ST-T	Industrial RS-232/422/485 to single mode fiber converter, ST connector, 2 KV isolation, -40 to 85°C operating temperature
ICF-1150-M-SC	Industrial RS-232/422/485 to multimode fiber converter, SC connector, 0 to 60°C operating temperature
ICF-1150-M-SC-T	Industrial RS-232/422/485 to multimode fiber converter, SC connector, -40 to 85°C operating temperature
ICF-1150-M-ST	Industrial RS-232/422/485 to multimode fiber converter, ST connector, 0 to 60°C operating temperature
ICF-1150-M-ST-T	Industrial RS-232/422/485 to multimode fiber converter, ST connector, -40 to 85°C operating temperature
ICF-1150-S-SC	Industrial RS-232/422/485 to single mode fiber converter, SC connector, 0 to 60°C operating temperature
ICF-1150-S-SC-T	Industrial RS-232/422/485 to single mode fiber converter, SC connector, -40 to 85°C operating temperature
ICF-1150-S-ST	Industrial RS-232/422/485 to single mode fiber converter, ST connector, 0 to 60°C operating temperature
ICF-1150-S-ST-T	Industrial RS-232/422/485 to single mode fiber converter, ST connector, -40 to 85°C operating temperature
ICF-1150-M-SC-IEX	Industrial RS-232/422/485 to multimode fiber converter, SC connector, IECEx, 0 to 60°C operating temperature
ICF-1150-M-ST-IEX	Industrial RS-232/422/485 to multimode fiber converter, ST connector, IECEx, 0 to 60°C operating temperature
ICF-1150-S-SC-IEX	Industrial RS-232/422/485 to single mode fiber converter, SC connector, IECEx, 0 to 60°C operating temperature
ICF-1150-S-ST-IEX	Industrial RS-232/422/485 to single mode fiber converter, ST connector, IECEx, 0 to 60°C operating temperature
ICF-1150I-M-SC-IEX	Industrial RS-232/422/485 to multimode fiber converter, SC connector, 2 kV isolation, IECEx, 0 to 60°C operating temperature
ICF-1150I-M-ST-IEX	Industrial RS-232/422/485 to multimode fiber converter, ST connector, 2 kV isolation, IECEx, 0 to 60°C operating temperature
ICF-1150I-S-SC-IEX	Industrial RS-232/422/485 to single mode fiber converter, SC connector, 2 kV isolation, IECEx, 0 to 60°C operating temperature
ICF-1150I-S-ST-IEX	Industrial RS-232/422/485 to single mode fiber converter, ST connector, 2 kV isolation, IECEx, 0 to 60°C operating temperature
ICF-1150-M-SC-T-IEX	Industrial RS-232/422/485 to multimode fiber converter, SC connector, IECEx, -40 to 85°C operating temperature
ICF-1150-M-ST-T-IEX	Industrial RS-232/422/485 to multimode fiber converter, ST connector, IECEx, -40 to 85°C operating temperature
ICF-1150-S-SC-T-IEX	Industrial RS-232/422/485 to single mode fiber converter, SC connector, IECEx, -40 to 85°C operating temperature
ICF-1150-S-ST-T-IEX	Industrial RS-232/422/485 to single mode fiber converter, ST connector, IECEx, -40 to 85°C operating temperature
ICF-1150I-M-SC-T-IEX	Industrial RS-232/422/485 to multimode fiber converter, SC connector, 2 kV isolation, IECEx, -40 to 85°C operating temperature
ICF-1150I-M-ST-T-IEX	Industrial RS-232/422/485 to multimode fiber converter, ST connector, 2 kV isolation, IECEx, -40 to 85°C operating temperature
ICF-1150I-S-SC-T-IEX	Industrial RS-232/422/485 to single mode fiber converter, SC connector, 2 kV isolation, IECEx, -40 to 85°C operating temperature
ICF-1150I-S-ST-T-IEX	Industrial RS-232/422/485 to single mode fiber converter, ST connector, 2 kV isolation, IECEx, -40 to 85°C operating temperature

TEKNİK

• Optical-Fiber Side
Fiber Connector	SC or ST
Fiber Cable Requirements
Ring Transmission	Half-duplex
Point-to-Point Transmission	Half-duplex or full-duplex
• RS-232/422/485 Side
RS-232 Signals	TxD, RxD, GND
RS-422 Signals	TxD+, TxD-, RxD+, RxD-, GND
RS-485-4w Signals	TxD+, TxD-, RxD+, RxD-, GND
RS-485-2w Signals	Data+, Data-, GND
Baudrate	50 bps to 921.6 kbps
Isolation	2 kV RMS isolation per I/O port for 1 minute
• Physical Characteristics
Housing	Metal
Dimensions	30.3 x 70 x 115 mm (1.19 x 2.76 x 4.53 in)
Weight	330 g (0.73 lb)
• Environmental Limits
Operating Temperature	Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
• Power Requirements
Input Voltage	12 to 48 VDC
Input Current	ICF-1150: 156 mA @ 12 VDC ICF-1150I: 195 mA @ 12 VDC
Voltage Reversal Protection	Protects against V+/V- reversal
Overcurrent Protection	1.1 A (protects against two signals shorted together)
• Standards and Certifications
Safety	UL 508, EN 62368
Hazardous Location	UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 EEx nC IIC, IECEx
EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class B
EMS	EN 61000-4-2 (ESD): Contact: 8 kV; Air: 15 kV EN 61000-4-3 (RS): 80 MHz to 1 GHz: 3 V/m EN 61000-4-4 (EFT): Power: 4 kV; Signal: 2 kV EN 61000-4-5 (Surge): Power: 4 kV; Signal: 1 kV EN 61000-4-6 (CS): 150 kHz to 80 MHz: 3 V/m EN 61000-4-8 (PFMF)
Green Product	RoHS, CRoHS, WEEE
Freefall	IEC 60068-2-32
• MTBF (mean time between failures)
Time	792,085 hrs
Standard	Telcordia (Bellcore), GB
Water and Dust Proof	IP30
• Warranty
Warranty Period	5 years
