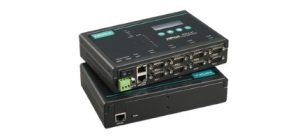

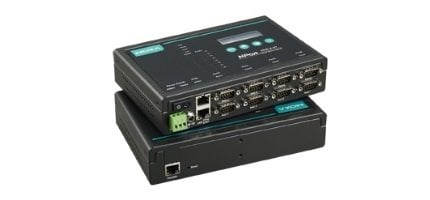

NPort 5610-8-DT
8-port RS-232/422/485 desktop serial device servers
NPort® 5600-8-DT cihaz sunucuları, 8 seri cihazı bir Ethernet hattına rahat ve şeffaf bir şekilde bağlayabilir ve mevcut seri cihazlarınızı sadece temel konfigürasyonlarla ağınıza bağlamanızı sağlar. Hem seri cihazlarınızın yönetimini merkezileştirebilir hem de ana yönetim bilgisayarlarını ağ üzerinden dağıtabilirsiniz.
- 8 serial ports supporting RS-232/422/485
- Compact desktop design
- 10/100M auto-sensing Ethernet
- Built-in 15 KV ESD protection for all serial signals
- Easy IP address configuration with LCD panel
- Choice of configuration methods: Web console, Telnet console, and Windows utility
- Versatile socket operation modes, including TCP Server, TCP Client, UDP, and Real COM
- SNMP MIB-II for network management
- Supports Moxa's MXview industrial network management software via the MXview Plug-in
ÜRÜN SİPARİŞ KODLARI :
|
8-port desktop device server, 2 10/100M Ethernet, RS-232 DB9, 12-48VDC |
|
|
8 port desktop mode device server, RS-232, DB9 male, 12-48VDC, w/o adaptor |
|
|
8-port desktop device server, 2 10/100M Ethernet, RS-232 RJ-45, 12-48VDC |
|
|
8 port desktop mode device server, RS-232, RJ-45 8pin, 12-48VDC, w/o adaptor |
|
|
8-port desktop device server, 2 10/100M Ethernet, RS-232/422/485 DB9, 12-48VDC |
|
|
8 port desktop mode device server, 3 in 1, DB9 male, 12-48VDC, w/o adapter |
|
|
8-port desktop device server, 2 10/100M Ethernet, RS-232/422/485 RJ-45, 12-48VDC |
|
|
8 port desktop mode device server, 3 in 1, RJ-45 8pin, 12-48VDC, w/o adaptor |
|
|
8-port desktop device server, 2 10/100M Ethernet, RS-232/422/485 DB9 Isolation, 12-48VDC |
|
|
8 port desktop modedevice server, 3 in 1, RJ-45 8pin, 12-48VDC, with isolation, w/o adaptor |
| Çalışma Sıcaklığı | : | 0/+55C |
| Toplam Port Sayısı | : | 8 |
| Konnektör Tipi | : | DB9 Male |
| • Ethernet Interface | |
| Number of Ports | 2 (1 IP) |
| Speed | 10/100 Mbps, auto MDI/MDIX |
| Connector | 8-pin RJ45 |
| Magnetic Isolation Protection | 1.5 kV built-in |
| • Serial Interface | |
| Number of Ports | 8 |
| Serial Standards | NPort 5610-8-DT: RS-232 NPort 5650-8-DT: RS-232/422/485 |
| Connector | NPort 5610-8-DT/5650-8-DT/5650I-8-DT: DB9 male NPort 5610-8-DT-J/5650-8-DT-J: RJ45 (8 pins) |
| Serial Line Protection | 2 kV isolation protection (NPort 5650I-8-DT only) |
| RS-485 Data Direction Control | ADDC® (automatic data direction control) |
| Pull High/Low Resistor for RS-485 | 1 kΩ, 150 kΩ |
| Terminator for RS-485 | 120 Ω |
| • Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | DSR/DTR and RTS/CTS (RS-232 only), XON/XOFF |
| Baudrate | Supports standard baudrates (unit=bps):50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k |
| • Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| • Software | |
| Network Protocols | ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP, Rtelnet, ARP, RFC2217 |
| Configuration Options | Web Console, Telnet Console, Serial Console, Windows Utility |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8 x86/x64, 2012 x64, Embedded CE 5.0/6.0, XP Embedded |
| Fixed TTY Drivers | SCO Unix, SCO OpenServer, UnixWare 7, UnixWare 2.1, SVR 4.2, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i |
| Linux Real TTY Drivers | Linux kernel 2.4.x, 2.6.x, 3.x, 4.x |
| Android API | Android 3.1.x and later |
| • Mini Screen with Push Buttons | |
| LCD Panel | Liquid Crystal Display on the case |
| Push Buttons | Four push buttons for convenient on-site configuration |
| • Physical Characteristics | |
| Housing | Metal, IP30 protection |
| Weight | NPort 5610-8-DT: 1760 g NPort 5610-8-DT-J: 1710 g NPort 5650-8-DT: 1770 g NPort 5650-8-DT-J: 1710 g NPort 5650I-8-DT: 1850 g |
| Dimensions | Without ears: 197 x 44 x 125 mm (7.76 x 1.73 x 4.92 in) With ears: 229 x 46 x 125 mm (9.01 x 1.81 x 4.92 in) With DIN rail kit on bottom panel: 197 x 53 x 125 mm (7.76 x 2.09 x 4.92 in) |
| • Environmental Limits | |
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Power Requirements | |
| Input Voltage | 12 to 48 VDC |
| Power Consumption | NPort 5610-8-DT: 611 mA @ 12 V, 300 mA @ 24 V, 140 mA @ 48 V NPort 5610-8-DT-J: 611 mA @ 12 V, 300 mA @ 24 V, 140 mA @ 48 V NPort 5650-8-DT: 615 mA @ 12 V, 300 mA @ 24 V, 156 mA @ 48 V NPort 5650I-8-DT: 1066 mA @ 12 V, 510 mA @ 24 V, 20 |
| • Standards and Certifications | |
| Safety | UL 60950-1, EN 60950-1 |
| EMC | CE, FCC |
| EMI | EN 55022 Class A, FCC Part 15 Subpart B Class A |
| EMS | EN 55024 |
| • Reliability | |
| Alert Tools | Built-in buzzer and RTC (real-time clock) |
| Automatic Reboot Trigger | Built-in WDT (watchdog timer) |
| MTBF (mean time between failures) | 163,356 hrs |
| • Warranty | |
| Warranty Period | 5 years |
