MOXA

NPort IA-5150I-S-SC

Stokta 0 Adet Var

687,00 EUR + KDV

Kategori

Seri Aygıt Sunucuları , Tüm Ürünler

Datasheet

Döküman indir

Gelince Haber Ver

Fiyatı Düşünce Haber Ver

Karşılaştır

Ürün Bilgisi

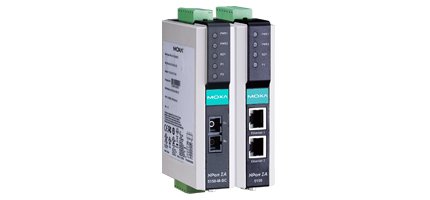

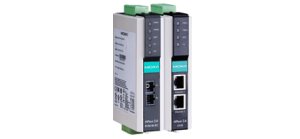

NPort IA-5150I-S-SC

1-port serial device servers for industrial automation

NPort® IA cihaz sunucuları, endüstriyel otomasyon uygulamaları için kolay ve güvenilir seri-ethernet bağlantısı sağlar. Aygıt sunucuları herhangi bir seri aygıtı bir ethernet ağına bağlayabilir ve ağ yazılımı ile uyumluluğundan emin olmak için TCP Server, TCP İstemcisi ve UDP dahil çeşitli bağlantı noktası işlem modlarını destekler. NPort® IA cihaz sunucularının sağlam güvenilirliği, PLC'ler, sensörler, sayaçlar, motorlar, sürücüler, barkod okuyucular ve operatör ekranları gibi RS-232/422/485 seri cihazlara ağ erişimi kurmak için ideal bir seçimdir. Tüm modeller DIN rayına monte edilebilen kompakt, sağlam bir muhafazaya yerleştirilmiştir.

Socket modes: TCP server/TCP client/UDP
Patented ADDC® (automatic data direction control) for 2-wire and 4-wire RS-485
Cascading Ethernet ports for easy wiring (applies only to RJ45 connectors)
Redundant DC power inputs
Warning by relay output and e-mail
10/100BaseTX (RJ45) or 100BaseFX (single mode or multi-mode with SC connector)
IP30-rated housing

ÜRÜN SİPARİŞ KODLARI :

NPort IA-5150	1-port RS-232/422/485 serial device server, 10/100MBaseT(X) (RJ45)
NPort IA-5150-T	1-port RS-232/422/485 serial device server, 10/100MBaseT(X) (RJ45), -40~75℃
NPort IA-5150-M-SC	1-port RS-232/422/485 serial device server, 100M Multi mode Fiber, SC connector
NPort IA-5150-M-SC-T	1-port RS-232/422/485 serial device server, 100M Multi mode Fiber, SC connector, -40~75℃
NPort IA-5150-S-SC	1-port RS-232/422/485 serial device server, 100M Single mode Fiber, SC connector
NPort IA-5150-S-SC-T	1-port RS-232/422/485 serial device server, 100M Single mode Fiber, SC connector, -40~75℃
NPort IA-5150-M-SC-IEX	1-port RS-232/422/485 to 1 100BaseF(X) multi-mode port, SC, 0 to 55°C, IECEx
NPort IA-5150-M-SC-T-IEX	1-port RS-232/422/485 to 1 100BaseF(X) multi-mode port, SC, -40 to 75°C, IECEx
NPort IA-5150-S-SC-IEX	1-port RS-232/422/485 to 1 100BaseF(X) single-mode port, SC, 0 to 55°C, IECEx
NPort IA-5150-S-SC-T-IEX	1-port RS-232/422/485 to 1 100BaseF(X) single-mode port, SC, -40 to 75°C, IECEx
NPort IA-5150I	1-port RS-232/422/485 serial device server with 2 KV isolation, 10/100MBaseT(X) (RJ45)
NPort IA-5150I-T	1-port RS-232/422/485 serial device server with 2 KV isolation, 10/100MBaseT(X) (RJ45), -40~75℃
NPort IA-5150-IEX	1-port RS-232/422/485 to 2-ports 10/100BaseT(X), 0 to 55°C, IECEx
NPort IA-5150-T-IEX	1-port RS-232/422/485 to 2-ports 10/100BaseT(X), -40 to 75°C, IECEx
NPort IA-5150I-IEX	1-port RS-232/422/485 to 2-ports 10/100BaseT(X), 2KV isolation, 0 to 55°C, IECEx
NPort IA-5150I-T-IEX	1-port RS-232/422/485 to 2-ports 10/100BaseT(X), 2KV isolation, -40 to 75°C, IECEx
NPort IA-5150I-M-SC	1-port RS-232/422/485 serial device server with 2 KV isolation, 100M Multi mode Fiber, SC connector
NPort IA-5150I-M-SC-IEX	1-port RS-232/422/485 to 1 100BaseF(X) multi-mode port, SC, 2KV isolation, 0 to 55°C, IECEx
NPort IA-5150I-M-SC-T	1-port RS-232/422/485 serial device server with 2 KV isolation, 100M Multi mode Fiber, SC connector, -40~75℃
NPort IA-5150I-M-SC-T-IEX	1-port RS-232/422/485 to 1 100BaseF(X) multi-mode port, SC, 2KV isolation, -40 to 75°C, IECEx
NPort IA-5150I-S-SC	1-port RS-232/422/485 serial device server with 2 KV isolation, 100M Single mode Fiber, SC connector
NPort IA-5150I-S-SC-IEX	1-port RS-232/422/485 to 1 100BaseF(X) single-mode port, SC, 2KV isolation, 0 to 55°C, IECEx
NPort IA-5150I-S-SC-T	1-port RS-232/422/485 serial device server with 2 KV isolation, 100M Single mode Fiber, SC connector, -40~75℃
NPort IA-5150I-S-SC-T-IEX	1-port RS-232/422/485 to 1 100BaseF(X) single-mode port, SC, -40 to 75°C, IECEx

Çalışma Sıcaklığı	:	0/+55C
Toplam Port Sayısı	:	1
RS-232/422/485	:	1
Konnektör Tipi	:	DB9 Male

TEKNİK

• Ethernet Interface (NPort IA5150/5150I/5250)
Number of Ports	2
Speed	10/100 Mbps, auto MDI/MDIX
Connector	8-pin RJ45
Magnetic Isolation Protection	1.5 kV built-in
• Optical Fiber Interface (-M-SC and -S-SC models)

• Serial Interface
Number of Ports	NPort IA5150: 1 NPort IA5250: 2
Serial Standards	RS-232/422/485
Connector	NPort IA5150: DB9 male for RS-232, terminal block for RS-422/485 NPort IA5250: DB9 male for RS-232/422/485
Serial Line Protection	2 kV isolation protection (NPort IA5150I, NPort 5150I-M-SC, NPort 5150I-S-SC)
RS-485 Data Direction Control	ADDC® (Automatic Data Direction Control)
• Serial Communication Parameters
Data Bits	5, 6, 7, 8
Stop Bits	1, 1.5, 2
Parity	None, Even, Odd, Space, Mark
Flow Control	RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF
Baudrate	Supports standard baudrates (unit=bps): 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k
• Serial Signals
RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422	Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w	Data+, Data-, GND
• Software
Network Protocols	ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, Rtelnet, DNS, SNMP V1, HTTP, SMTP, SNTP, ARP
Configuration Options	Web Console, Serial Console, Telnet Console, Windows Utility
Windows Real COM Drivers	Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 x86/x64, 2012 x64, Embedded CE 5.0/6.0, XP Embedded
Fixed TTY Drivers	SCO Unix, SCO OpenServer, UnixWare 7, UnixWare 2.1, SVR 4.2, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i
Linux Real TTY Drivers	Linux 2.4.x, 2.6.x, 3.x, 4.x
Android API	Android 3.1.x and later
• Physical Characteristics
Housing	Plastic, IP30 protection
Weight	NPort IA5150: 360 g (0.79 lb) NPort IA5250: 380 g (0.84 lb)
Dimensions	29 x 89.2 x 118.5 mm (0.82 x 3.51 x 4.57 in)
• Environmental Limits
Operating Temperature	Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature	-40 to 75°C (-40 to 167°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
• Power Requirements
Input Voltage	12 to 48 VDC
Input Current	NPort IA5150: 238 mA @ 12 VDC NPort IA5150I: 257 mA @ 12 VDC NPort IA5250: 238 mA @ 12 VDC NPort IA5150-S-SC: 328 mA @ 12 VDC NPort IA5150I-S-SC: 333 mA @ 12 VDC NPort IA5150-M-SC: 315 mA @ 12 VDC NPort IA5150I-M-SC: 339 mA @ 12 VDC
• Standards and Certifications
Safety	UL 508, UL 60950-1
Hazardous Location	UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2, IECEx Zone 2
EMI	CISPR 22, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m IEC 61000-4-8
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
Marine	DNV
Shock	IEC 60068-2-27
• Reliability
Alert Tools	Built-in buzzer and RTC (real-time clock)
Automatic Reboot Trigger	Built-in WDT (watchdog timer)
Water and Dust Proof	IP30
• MTBF (mean time between failures)
Time	NPort IA5150 Series: 183,747 hrs NPort IA5150I Series: 195,614 hrs NPort IA5250 Series: 194,765 hrs
Standard	NPort IA5250I Series: Telcordia (Bellcore) Standard TR/SR
• Warranty
Warranty Period	5 years
