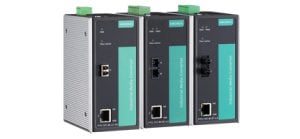

PTC-101-M-LC-HV
IEC 61850-3 and railway Ethernet-to-fiber media converters
- 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
- Link Fault Pass-Through (LFP)
- Power failure alarm by relay output (LV model only)
- -40 to 85°C operating temperature range
- Redundant dual DC power inputs (LV model only)
- Integrated high-reliability power supply eliminates the need for external power transformer
- Compliant with EN 50121-4
- Complies with all EN 50155 mandatory test items*
|
Industrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode with LC connector, 1 isolated power supply (88-300 VDC or 85-264 VAC), -40 to 85°C operating temperature |
|
|
Industrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode with LC connector, dual redundant power inputs (20-70 VDC), -40 to 85°C operating temperature |
|
|
Industrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode with SC connector, 1 isolated power supply (88-300 VDC or 85-264 VAC), -40 to 85°C operating temperature |
|
|
Industrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode with SC connector, dual redundant power inputs (20-70 VDC), -40 to 85°C operating temperature |
|
|
Industrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode with ST connector, 1 isolated power supply (88-300 VDC or 85-264 VAC), -40 to 85°C operating temperature |
|
|
Industrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode with ST connector, dual redundant power inputs (20-70 VDC), -40 to 85°C operating temperature |
|
|
Industrial 10/100BaseT(X) to 100BaseFX media converter, single-mode with LC connector, 1 isolated power supply (88-300 VDC or 85-264 VAC), -40 to 85°C operating temperature |
|
|
Industrial 10/100BaseT(X) to 100BaseFX media converter, single-mode with LC connector, dual redundant power inputs (20-70 VDC), -40 to 85°C operating temperature |
|
|
Industrial 10/100BaseT(X) to 100BaseFX media converter, single-mode with SC connector, 1 isolated power supply (88-300 VDC or 85-264 VAC), -40 to 85°C operating temperature |
|
|
Industrial 10/100BaseT(X) to 100BaseFX media converter, single-mode with SC connector, dual redundant power inputs (20-70 VDC), -40 to 85°C operating temperature |
|
|
Industrial 10/100BaseT(X) to 100BaseFX media converter, single-mode with ST connector, 1 isolated power supply (88-300 VDC or 85-264 VAC), -40 to 85°C operating temperature |
|
|
Industrial 10/100BaseT(X) to 100BaseFX media converter, single-mode with ST connector, dual redundant power inputs (20-70 VDC), -40 to 85°C operating temperature |
| • Technology | |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X), 100BaseFX |
| • Interface | |
| RJ45/M12 Ports | 10/100BaseT(X) |
| Fiber Ports | 100BaseFX (SC/ST/LC connectors) |
| LED Indicators | PWR1, PWR2, Fiber Link, 10/100M (TP port) |
| DIP Switches | |
| Alarm Contact | One relay output with current carrying capacity of 1 A @ 24 VDC (LV model only) |
| • Optical Fiber | |
| • Physical Characteristics | |
| Housing | Metal, IP30 protection |
| Dimensions | 152.15 x 123.46 x 66.65 mm (5.99 x 4.86 x 2.62 in) |
| Weight | Product only: 690 g (1.52 lb) Packaged: 875 g (1.92 lb) |
| • Environmental Limits | |
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Conformal Coating | Available upon request |
| • Power Requirements | |
| Input Voltage | |
| Input Current | LV-DC: 170 mA @ 20 VDC max. HV-AC: 73 mA @ 85 VDC max. HV-DC: 47 mA @ 88 VDC max. |
| Connection | Removable terminal block |
| Overload Current Protection | 1.6 A (protects against two signals shorted together) |
| Reverse Polarity Protection | Protects against V+/V- reversal |
| • Standards and Certifications | |
| Safety | UL 60950-1 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | EN 61000-4-2 (ESD): Contact: 8 kV; Air: 15 kV EN 61000-4-3 (RS): 80 MHz to 1 GHz: 3 V/m EN 61000-4-4 (EFT): Power: 4 kV; Signal: 4 kV EN 61000-4-5 (Surge): Power: 4 kV; Signal: 4 kV EN 61000-4-6 (CS): 150 kHz to 80 MHz: 3 V/m EN 61000-4-8 (PFMF) EN 6 |
| Green Product | RoHS, CRoHS, WEEE Note: Refer to the ''Environmental Type Tests” table below for more detailed information. |
| Freefall | IEC 60068-2-32 |
| Power Automation | IEC 61850-3, IEEE 1613 |
| Rail Traffic | EN 50121-4 *Please contact Moxa or a Moxa distributor for details. |
| Vibration | IEC-61850-3, IEC-60870-2-2, EN 50125-3 (M12 models only) |
| • MTBF (mean time between failures) | |
| Time | 1,211,613 hrs |
| Standard | Telcordia (Bellcore), GB |
| • Warranty | |
| Warranty Period | 5 years |
