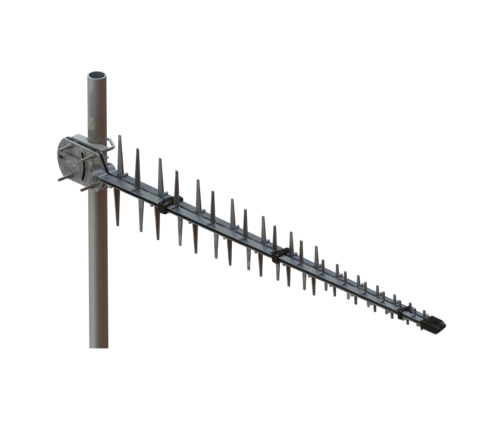

A-LPDA-0092 (LDPA-92)
CELLULAR DIRECTIONAL HIGH GAIN OUTDOOR ANTENNA 698MHZ-3000MHZ
LPDA-92, GSM900 / GSM1800 / UMTS / LTE / WiMax şebekelerini destekleyen yüksek kazançlı geniş bant anten çözümüdür. Ürün Afrika gibi zor koşullar içeren coğrafi bölgelerde neredeyse sıfır arıza oranı ile kullanılmaktadır. LTE / HSPA / 3G / EDGE / GPRS şebekelerini kullanan herhangi bir uygulama için idealdir.
- Maksimum 12dBi
- 4G/3G/2G uyumlu
- Darbe korumalı muhafaza
- Zor hava koşulları
|
Electrical Specifications |
|
|
Frequency Bands: |
698-3000MHz |
|
Gain (Max): |
12dBi |
|
VSWR: |
<2.0:1 |
|
Feed Power Handling: |
10W |
|
Input Impedance: |
50Ohm (nominal) |
|
Polarisation: |
Linear |
|
Cable loss: |
0.35dB/m @900 MHz |
|
0.53dB/m @ 2000 MHz |
|
| 0.6dB/m @ 2500 MHz | |
|
DC Short: |
Yes |
|
Mechanical Specifications |
|
|
Product Dimensions (L x W x D): |
1100 mm x 180 mm x 60 mm |
|
Packaged Dimensions: |
1140 mm x 435 mm x 330 mm |
|
Weight: |
1.63 kg |
|
Packaged Weight: |
192 g |
|
Radome Material: |
Nylon6 |
|
Plastic Colour: |
Pantone - Black |
|
RAL - Black |
|
| Frame Materials | Passivated ADC12 |
| Frame Colour |
Aluminium grey |
|
Environmental Specifications |
|
|
Wind Survival: |
<160 km/h |
|
Temperature Range (Operating): |
-40°C / +70°C |
|
Environmental Conditions: |
Outdoor |
|
Operating Relative Humidity: |
Up to 98% |
|
Storage Humidity: |
5% to 95% - non condensing |
|
Storage Temperature: |
-40°C / +70°C |
|
Certification Approvals and Standards |
|
|
Flammability rating: |
UL 94-V0 |
|
EN 13823 |
|
|
Water Ingress Protection Ratio/Standard: |
IP 65 (NEMA 4X) |
|
Impact resistance: |
IK 08 |
|
Salt Spray: |
MIL-STD 810F/ASTM B117 |
|
Product Safety: |
Complies with UL, CE, EN, CSA and IEC standards |
