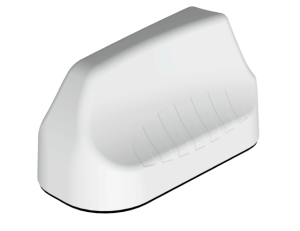

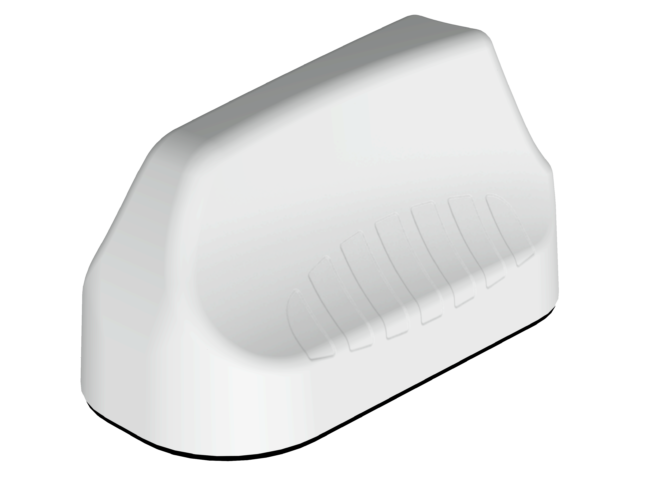

A-MIMO-0003-02 (MIMO-3-02)
2 IN 1 FUTUREPROOF HIGH PERFORMANCE MULTI FREQUENCY ANTENNA 450MHZ-470MHZ, 698MHZ-960MHZ, 1710MHZ–2700MHZ
MAX GAIN: 6.0 DBI
MIMO-3-02, 2x Cellular sağlayan tek anten muhafazasında 2 anten içerir. 2x Hücresel MIMO antenleri (2G / 3G / 4G için), 698MHz - 2700MHz bandını ve LTE için çeşitli uluslararası ağ operatörleri için popüler hale gelen 450MHz bandını kapsamaktadır. Bu anten, geniş bant yetenekleri sayesinde, 5G gibi geleceğin hücresel teknolojilerini kullanabiliyor ve farklı operatörler ve teknolojiler için kullanılabilen çok yönlü bir anten sunuyor.
- 2G ve 3G uyumlu
- 2 x MIMO LTE
- Robust anten
- Darbe ve Suya dayanıklı
- Kararlılığı arttırılmış güvenilir bağlantı
|

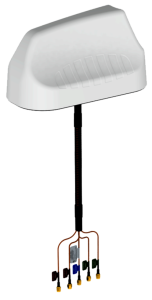

MIMO-3 |
High Performance Multifunctional 5-in-1 MIMO Antenna - includes: 2 * LTE 450-2700 + 2 * Dual Band WI-FI (2.4-5.8) + 1 * GPS/Glonass - max. Gain: 6.5 dBi - 0.3 M Fire Retardant High Quality Cable - SMA-M - IP65 |
|
|
MIMO-3-01 |
High Performance Robust Multifunctional 3-in-1 MIMO Antenna: 2 * LTE 450-2700 (max. Gain: 4.2 dBi) + 1 * GPS/Glonass -0.3 M Fire Retardant High Quality Cable - SMA-M - IP65 |
|
|
MIMO-3-02 |
A-MIMO-0003-02 |
High Performance Robust Multifunctional 2-in-1 MIMO OMNI-Directional LTE Antenna: 2 * LTE 450-2700 (max. Gain: 4.5 dBi) - 0.3 M Fire Retardant High Quality Cable - SMA-M - IP65 |
Electrical Specifications
GSM/3G/LTE electrical specifications
|
Frequency Band 1 |
450 - 470MHz |
|
Frequency Band 2 |
690 - 960MHz |
|
Frequency Band 3 |
1710 - 2700MHz |
|
Gain (Max) |
6.0 dBi |
|
VSWR |
< 3:1 |
|
Feed power handling |
10 W |
|
Input impedance |
50 Ohm (nominal) |
|
Polarisation |
Linear Vertical x 2 |
|
Cable loss |
0.8dB/m @1000MHz 2.6dB/m@3000MHz |
|
Cable |
2 x 0.3m EF_316_D |
|
Connector |
2 x SMA male |
|
DC Short |
Yes |
Mechanical Specifications
|
Product Dimensions (L x W x D) |
252 mm x 130 mm x 140 mm |
|
Packaged Dimensions |
270 mm x 140 mm x 185 mm |
|
Weight |
900 g |
|
Packaged Weight |
1150 g |
|
Radome Material |
ABS (Halogen Free) |
|
Base Material |
Passivated ADC12 |
|
Radome Colour |
Cool Grey (1C) |
|
End Cap Colour |
Pantone - Cool Grey (1C) RAL - Cool Grey (1C) |
Environmental Specifications
|
Wind Survival |
220 km/h |
|
Temperature Range (Operating) |
-40°C to +70°C |
|
Environmental Conditions |
Outdoor/Indoor |
|
Operating Relative Humidity |
Up to 98% |
|
Storage Humidity |
5% to 95% - non condensing |
|
Storage Temperature |
-40°C to +70°C |
Certification Approvals and Standards
|
Cable Flammability rating |
UL 94 HB ECE R118.02 |
|
Certified Water Ingress Protection Ratio/Standard |
IP 65 (NEMA 4X) |
|
Impact resistance |
IK 08 |
|
Salt Spray |
MIL-STD 810F/ASTM B117 |
|
Product Safety |
Complies with UL, CE, EN, CSA and IEC standards |
