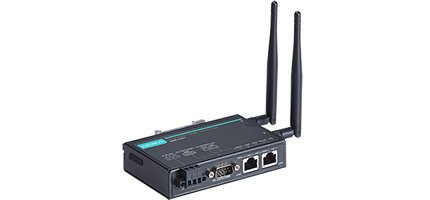

AWK-1137C-EU-T
Industrial 802.11a/b/g/n wireless client
AWK-1137C, endüstriyel kablosuz haberleşme uygulamaları için en uygun istemci çözümüdür. AWK-1137C, çalışma sıcaklık aralığı, giriş voltaj aralığı, aşırı gerilim, ESD ve titreşim gibi endüstriyel standartların gerektirdiği onaylara sahiptir. 2,4 veya 5 GHz bantlarında çalışabilir ve gelecekteki kablosuz yatırımlarınızı garanti altına almak için mevcut 802.11a/b/g destekler.
- IEEE 802.11a/b/g/n compliant client
- Comprehensive interfaces with one serial port and two Ethernet LAN ports
- Client-based millisecond-level Turbo Roaming
- 2x2 MIMO future-proof technology
- Integrated robust antenna and power isolation
- Anti-vibration design
- Compact size for your industrial applications
- Easy setup, easy deployment with AeroMag
ÜRÜN SİPARİŞ KODLARI :
|
IEEE 802.11a/b/g/n wireless Serial/Ethernet client, EU band, 0 to 60°C operating temperature |
|
|
AWK-1137C-EU-T |
IEEE 802.11a/b/g/n wireless Serial/Ethernet client, EU band, -40 to 75°C operating temperature |
| • WLAN Interface | |
| Standards | IEEE 802.11a/b/g/n for Wireless LAN IEEE 802.11i for Wireless Security IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) |
| Spread Spectrum and Modulation (typical) | • DSSS with DBPSK, DQPSK, CCK • OFDM with BPSK, QPSK, 16QAM, 64QAM • 802.11b: CCK @ 11/5.5 Mbps, DQPSK @ 2 Mbps, DBPSK @ 1 Mbps • 802.11a/g: 64QAM @ 54/48 Mbps, 16QAM @ 36/24 Mbps, QPSK @ 18/12 Mbps, BPSK @ 9/6 Mbps • 802.11n: 64QAM @ 300 Mbps to BPSK @ 6.5 Mbps (multiple rates supported) |
| Operating Channels (central frequency) | US: 2.412 to 2.462 GHz (11 channels) 5.180 to 5.240 GHz (4 channels) 5.745 to 5.825 GHz (5 channels) 5.260 to 5.320 GHz (4 channels) 5.500 to 5.700 GHz (11 channels) EU: 2.412 to 2.472 GHz (13 channels) 5.180 to 5.240 GHz (4 channels) 5.260 to 5.320 GHz (4 channels) 5.500 to 5.700 GHz (11 channels) JP: 2.412 to 2.484 GHz (14 channels, DSSS) 5.180 to 5.240 GHz (4 channels) 5.260 to 5.320 GHz (4 channels) 5.500 to 5.700 GHz (11 channels) |
| Security | • SSID broadcast enable/disable • Firewall for MAC/IP/Protocol/Port-based filtering • 64-bit and 128-bit WEP encryption, WPA/WPA2-Personal and Enterprise (IEEE 802.1X/RADIUS, TKIP, and AES) |
| Transmission Rates | 802.11b: 1, 2, 5.5, 11 Mbps 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n: 6.5 to 300 Mbps (multiple rates supported) |
| TX Transmit Power | 802.11b: Typ. 26±1.5 dBm @ 1 Mbps, Typ. 26±1.5 dBm @ 2 Mbps Typ. 26±1.5 dBm @ 5.5 Mbps, Typ. 25±1.5 dBm @ 11 Mbps 802.11g: Typ. 23±1.5 dBm @ 6 to 24 Mbps, Typ. 22±1.5 dBm @ 36 Mbps Typ. 20±1.5 dBm @ 48 Mbps, Typ. 19±1.5 dBm @ 54 Mbps 802.11n (2.4 GHz): Typ. 23±1.5 dBm @ MCS0/8 20 MHz Typ. 17±1.5 dBm @ MCS7/15 20 MHz Typ. 23±1.5 dBm @ MCS0/8 40 MHz Typ. 17±1.5 dBm @ MCS7/15 40 MHz 802.11a: Typ. 23±1.5 dBm @ 6 to 24 Mbps Typ. 21±1.5 dBm @ 36 Mbps Typ. 20±1.5 dBm @ 48 Mbps, Typ. 18±1.5 dBm @ 54 Mbps 802.11n (5 GHz): Typ. 23±1.5 dBm @ MCS0/8 20 MHz Typ. 18±1.5 dBm @ MCS7/15 20 MHz Typ. 23±1.5 dBm @ MCS0/8 40 MHz, Typ. 18±1.5 dBm @ MCS7/15 40 MHz |
| Note | Based on regional regulations, the maximum transmission power allowed on the UNII bands is restricted in the firmware, as indicated below: |
| RX Receive Sensitivity | 802.11b: -89 dBm @ 1 Mbps, -89 dBm @ 2 Mbps -89 dBm @ 5.5 Mbps, -88 dBm @ 11 Mbps 802.11g: -88 dBm @ 6 Mbps, -88 dBm @ 9 Mbps -88 dBm @ 12 Mbps, -87 dBm @ 18 Mbps -84 dBm @ 24 Mbps, -81 dBm @ 36 Mbps -77 dBm @ 48 Mbps, -75 dBm @ 54 Mbps 802.11n (2.4 GHz): -70 dBm @ MCS7 20 MHz, -70 dBm @ MCS15 20 MHz -64 dBm @ MCS7 40 MHz, -65 dBm @ MCS15 40 MHz 802.11a: -90 dBm @ 6 Mbps, -88 dBm @ 9 Mbps -87 dBm @ 12 Mbps, -85 dBm @ 18 Mbps -81 dBm @ 24 Mbps, -78 dBm @ 36 Mbps -74 dBm @ 48 Mbps, -73 dBm @ 54 Mbps 802.11n (5 GHz): -69 dBm @ MCS7 20 MHz, -70 dBm @ MCS15 20 MHz -64 dBm @ MCS7 40 MHz, -66 dBm @ MCS15 40 MHz |
| • Protocol Support | |
| General Protocols | Proxy ARP, DNS, HTTP, HTTPS, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, DHCP, VLAN |
| • Interface | |
| Default Antennas | 2 dual-band omni-directional antennas, 2 dBi, RP-SMA (male) |
| Connector for External Antennas | RP-SMA (female) |
| LAN Ports | 2, RJ45, 10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection |
| Serial Port | 1, RS232/422/485, DB9 male connector |
| Reset | Present |
| LED Indicators | SYS, WLAN, LAN1, LAN2, Serial |
| • Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, XON/XOFF |
| Baudrate | 75 bps to 921.6 kbps |
| Serial Data Log | 256 KB |
| • Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| • Management | |
| Serial Operation Modes | Real COM, RCF2217, TCP Server, TCP Client, UDP |
| Device Management | Wireless Search Utility, MXconfig, SNMP |
| Network Monitoring | MXview |
| • Physical Characteristics | |
| Housing | Metal casing for high EMC-levels; provides IP30 protection |
| Weight | 470 g (1.03 lb) |
| Dimensions | 77.1 x 115.5 x 26 mm (3.035 x 4.55 x 1.024 in) |
| Installation | DIN-rail mounting (standard), wall mounting (with optional kit) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5% to 95% (non-condensing) |
| • Power Requirements | |
| Input Voltage | 9 to 30 VDC, redundant dual DC power inputs |
| Connector | 3-pin removable terminal block, 500 V insulation |
| Power Consumption | 11.7 W |
| Reverse Polarity Protection | Present |
| • Standards and Certifications | |
| Safety | UL 60950-1 |
| EMC | EN 55032/55024, EN 61000-6-2/6-4 |
| EMI | FCC Part 15B |
| EMS | IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 |
| Radio | FCC ID SLE-1137C, MIC, RED, NCC, KC, RCM, ANATEL, EAC, WPC |
| Vehicle | E-Mark E1 |
| Note | Please check Moxa’s website for the most up-to-date certification status. |
| • MTBF (mean time between failures) | |
| Time | 1,125,942 hrs |
| Standard | Telcordia SR332 |
| • Warranty | |
| Warranty Period | 5 years |
