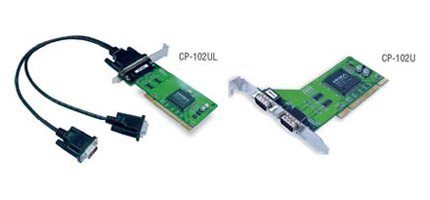

CP-102U-T
2-port RS-232 Universal PCI serial boards
CP-102U ve CP-102UL, POS ve ATM uygulamaları için tasarlanmış 2 portlu universal PCI kartlardır. Özellikle Windows, Linux ve hatta Unix gibi birçok farklı işletim sistemini destekler. Her bir RS-232 seri portu 921,6 kbps baudrate'e kadar destekler. CP-102U ve CP-102UL hem 3,3V hem de 5V PCI veriyollarıyla çalışır ve kartlar hemen hemen her PC'ye uyumludur.
- Excellent data throughput at over 800 kbps
- 921.6 kbps maximum baudrate for super fast data transmission
- 128-byte FIFO and on-chip H/W, S/W flow control
- Compatible with 3.3/5 V PCI and PCI-X
- Drivers provided for a broad selection of operating systems, including the latest Windows and Linux
- MD1 low profile form factor (CP-102UL) fits compact PCs
- Wide temperature model available for -40 to 85°C environments
ÜRÜN SİPARİŞ KODLARI :
|
2 Port PCI Board, RS-232 |
|
|
2 Port PCI Board, RS-232, Wide Temperature |
|
|
2 Port UPCI Board, w/ DB9M Cable, RS-232, Low Profile |
|
|
2 Port UPCI Board, Cable, RS-232, Low Profile, Wide Temperature |
| • Hardware | |
| Comm. Controller | MU860 (16C550C compatible) |
| Bus | 32-bit Universal PCI |
| Connector | CP-102U: DB9 male x 2 CP-102UL: DB25 female |
| • Serial Interface | |
| Number of Ports | 2 (only one IRQ required) |
| Serial Standards | RS-232 |
| Max. No. of Boards per PC | 8 |
| • Performance | |
| Baudrate | 50 bps to 921.6 kbps (supports non-standard baudrates) |
| • Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, XON/XOFF, RTS Toggle (RS-232 only) |
| • Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| • Physical Characteristics | |
| Dimensions | CP-102U: 80 x 120 mm (3.15 x 4.72 in) CP-102UL: 64.5 x 120 mm (2.53 x 4.72 in) |
| • Driver Support | |
| Windows | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows Server 2008 R2/2012/2012 R2/2016 (x64), DOS, Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux | Linux 2.4.x, 2.6.x, 3.x |
| Unix-like Systems | QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD |
| Note | Please refer to Moxa’s website for the latest driver support information. |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 85°C (-40 to 185°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Standards and Certifications | |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class B |
| EMS | CP-102U: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m CP-102UL: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 S |
| • MTBF (mean time between failures) | |
| Time | CP-102U: 574,050 hrs CP-102UL: 576,401 hrs |
| Standard | CP-102U: MIL-HDBK-217F CP-102UL: Telcordia (Bellcore) TR/SR |
| • Power Requirements | |
| Input Current | 93 mA @ 5 VDC |
| • Warranty | |
| Warranty Period | 5 years |
