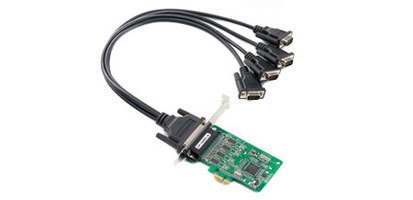

CP-104EL-A-DB9M
4-port RS-232 PCI Express serial boards
CP-104EL-A POS ve ATM uygulamaları için tasarlanmış 4 portlu PCI Express kartıdır. Moxa’nın PCI Express anakartları, özellikle Windows ve Linux gibi pek çok farklı işletim sistemini desteklediğinden, endüstriyel otomasyon mühendisleri ve sistem entegratörlerinin en iyi seçimidir. CP-104EL’in 4 RS-232 seri portu 921,6kbps baud hızı destekler ve çeşitli seri çevre birimleriyle uyumluluğu sağlamak için modem kontrol sinyalleri sağlar. Ayrıca, kartların x1 sınıflandırması, bunların herhangi bir PCI Express yuvasına kurulmasına izin verir.
- PCI Express x1 compliant
- 921.6 kbps maximum baudrate for super fast data transmission
- 128-byte FIFO and on-chip H/W, S/W flow control
- Low profile form factor fits small-sized PCs
- Drivers provided for a broad selection of operating systems, including the latest Windows and Linux
- Easy maintenance with on-board LEDs and management software
ÜRÜN SİPARİŞ KODLARI :
4 Port PCIe Board, w/o Cable, RS-232, Low Profile |
|
4 Port PCIe Board, w/ DB25M Cable, RS-232, Low Profile |
|
4 Port PCIe Board, w/ DB9M Cable, RS-232, Low Profile |
• Hardware | |
Comm. Controller | 16C550C compatible |
Bus | PCI Express x1 |
Connector | DB44 female |
• Serial Interface | |
Number of Ports | 4 |
Serial Standards | RS-232 |
Max. No. of Boards per PC | 4 |
• Performance | |
Baudrate | 50 bps to 921.6 kbps |
• Serial Communication Parameters | |
Data Bits | 5, 6, 7, 8 |
Stop Bits | 1, 1.5, 2 |
Parity | None, Even, Odd, Space, Mark |
Flow Control | RTS/CTS, XON/XOFF |
• Serial Signals | |
RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
• Physical Characteristics | |
Dimensions | 67.21 x 103 mm (2.65 x 4.06 in) |
• Driver Support | |
Windows | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), DOS |
Linux | Linux 2.4.x, 2.6.x, 3.x |
Unix-like Systems | QNX 6, SCO OpenServer, UnixWare 7, Solaris 10 |
Note | Please refer to Moxa’s website for the latest driver support information. |
• Environmental Limits | |
Operating Temperature | 0 to 55°C (32 to 131°F) |
Storage Temperature | -20 to 85°C (-4 to 185°F) |
Ambient Relative Humidity | 5 to 95% (non-condensing) |
• Standards and Certifications | |
EMC | EN 55032/24 |
EMI | CISPR 32, FCC Part 15B Class B |
EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000 |
• MTBF (mean time between failures) | |
Time | 3,601,447 hrs |
Standard | Telcordia (Bellcore) TR/SR |
• Power Requirements | |
Input Current | 805 mA @ 3.3 VDC |
• Warranty | |
Warranty Period | 5 years |
