CP-104JU

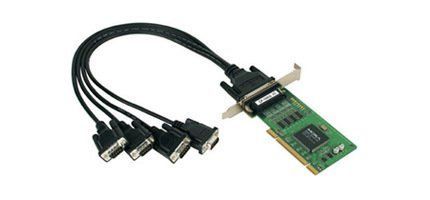

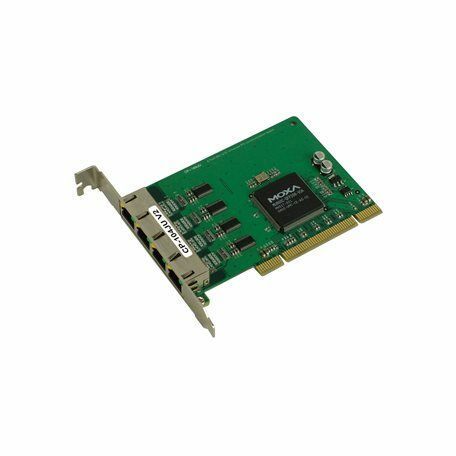

4 Port UPCI Board, RS-232, RJ45
CP-104UL ve CP-104JU, POS ve ATM uygulamaları için tasarlanmış 4 portlu PCI Express kartıdır. Moxa’nın PCI Express anakartları, özellikle Windows ve Linux gibi pek çok farklı işletim sistemini desteklediğinden, endüstriyel otomasyon mühendisleri ve sistem entegratörlerinin en iyi seçimidir. CP-104UL ve CP-104JU’nun 4 RS-232 seri portu 921,6kbps baud hızı destekler ve çeşitli seri çevre birimleriyle uyumluluğu sağlamak için modem kontrol sinyalleri sağlar.
- Over 800 kbps data throughput for top performance
- 921.6 kbps maximum baudrate for super fast data transmission
- 128-byte FIFO and on-chip H/W, S/W flow control
- Compatible with 3.3/5 V PCI and PCI-X
- Drivers provided for a broad selection of operating systems, including the latest Windows and Linux
- Wide temperature model available for -40 to 85°C environments
Serial Interface
Comm. Controller MU860 (16C550C compatible)
Bus 32-bit Universal PCI
Connector CP-104UL Series: DB44 female
CP-104JU Series: 4 x RJ45
CP-104JU Series: 4 x RJ45
FIFO 128 bytes
Max. No. of Boards per PC 8
No. of Ports 4
Serial Standards RS-232
Baudrate 50 bps to 921.6 kbps
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow Control None, RTS/CTS, XON/XOFF
Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Serial Software Features
Windows Drivers DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x
UNIX Drivers
QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD
Power Parameters
Input Current
CP-104UL Series: 120 mA @ 5 VDC
CP-104JU Series: 135 mA @ 5 VDC
Physical Characteristics
Dimensions
CP-104UL Series: 64.4 x 120 mm (2.53 x 4.72 in)
CP-104JU Series: 83 x 120 mm (3.27 x 4.72 in)
LED Interface
LED Indicators
Built-in Tx, Rx LEDs for each port
Environmental Limits
Operating Temperature
Standard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
Standards and Certifications
EMC
EN 55032/24
EMI
CISPR 32, FCC Part 15B Class B
EMS
CP-104UL Series:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
CP-104JU Series:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
International Approval
CP-104UL-DB9M: KC
Declaration
Green Product
RoHS, CRoHS, WEEE
MTBF
Time
CP-104UL Series: 558,961 hrs
CP-104JU Series: 571,627 hrs
Standards
Telcordia (Bellcore) Standard TR/SR
