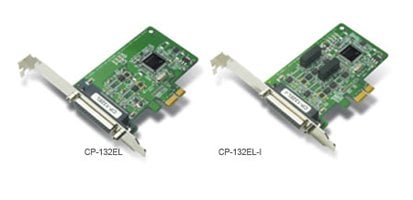

CP-132EL-DB9M
2-port RS-422/485 PCI Express boards (with optional 2 kV isolation)
CP-132EL ve CP-132EL-I, uzun mesafeli, çok noktalı, PC tabanlı veri toplama çözümü gerektiren endüstriyel otomasyon uygulamaları için tasarlanmış 2 portlu PCI Express kartlardır.
- PCI Express x1 compliant
- 921.6 kbps maximum baudrate for super fast data transmission
- 128-byte FIFO and on-chip S/W flow control
- Low profile form factor fits small-sized PCs
- Drivers provided for a broad selection of operating systems, including the latest Windows and Linux
ÜRÜN SİPARİŞ KODLARI :
|
2 Port PCIe Board, w/ DB9M Cable, RS-422/485, Low Profile |
|
|
2 Port PCIe Board, w/ DB9M Cable, RS-422/485, w/ Isolation, Low Profile |
| • Hardware | |
| Comm. Controller | 16C550C compatible |
| Bus | PCI Express x1 |
| Connector | DB25 female |
| • Serial Interface | |
| Number of Ports | 2 |
| Serial Standards | RS-422/485 |
| Max. No. of Boards per PC | 4 |
| • Serial Line Protection | |
| Electrical Isolation | 2 kV (CP-132EL-I only) |
| • Performance | |
| Baudrate | 50 bps to 921.6 kbps |
| • Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | XON/XOFF |
| • Serial Signals | |
| RS-422 | TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND |
| RS-485-4w | TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND |
| RS-485-2w | Data+(B), Data-(A), GND |
| • Physical Characteristics | |
| Dimensions | CP-132EL: 67.21 x 101.97 mm (2.65 x 4.08 in) CP-132EL-I: 67.21 x 103.97 mm (2.65 x 4.16 in) |
| • Driver Support | |
| Windows | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), DOS |
| Linux | Linux 2.4.x, 2.6.x, 3.x |
| Unix-like Systems | QNX 6, SCO OpenServer, UnixWare 7, Solaris 10 |
| Note: Please refer to Moxa’s website for the latest driver support information. | |
| • Environmental Limits | |
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Standards and Certifications | |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class B |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000 |
| • MTBF (mean time between failures) | |
| Time | CP-132EL: 4,147,133 hrs CP-132EL-I: 1,681,099 hrs |
| Standard | Telcordia (Bellcore) TR/SR |
| • Power Requirements | |
| Input Current | CP-132EL: 548 mA @ 3.3 VDC CP-132EL-I: 636 mA @ 3.3 VDC |
| • Warranty | |
| Warranty Period | 5 years |
