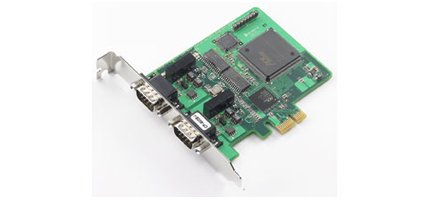

CP-602E-I-T w/o Cable
2-port CAN interface PCI Express boards with 2 kV isolation
Moxa’nın yeni CP-602E-I CAN interface kartı PCI Express arayüzünü destekler. Bağımsız bir CAN kontrolörü olarak CP-602E-I, aynı kart üzerinde bir DB9 konnektörü bulunan iki aktif CAN kontroü sağlayan uygun maliyetli bir çözümdür. -40 ila 85 ° C geniş çalışma sıcaklığı (sadece CP-602E-I-T) ve 2 kV izolasyon, ürünün zorlu endüstriyel ortamlarda kullanımına olanak sağlar.
- CAN 2.0A and CAN 2.0B supported
- Two independent CAN communication ports
- CAN transfer rate up to 1 Mbps
- 2 kV electrical isolation
- LED for transmit/receive status on each port
- Optional 120 ohm terminal resistor for CAN bus network
- DLL library and examples included
- Windows driver provided
ÜRÜN SİPARİŞ KODLARI :
|
2 Port CANbus PCI Express Board, w/Isolation, 0 to 55℃ Temperature |
|
|
2 Port CANbus PCI Express Board, w/Isolation, -40 to 85℃ Temperature |
| • Hardware | |
| Connectors | DB9 male x 2 |
| CAN Controller | NXP SJA1000 |
| CAN Transceiver | PCA82C251 |
| CAN Specification | CAN 2.0 A/B |
| Signal Support | CAN_H, CAN_L, GND |
| Transfer Rate | 1 Mbps |
| Max. Number of Boards per PC | 4 |
| Electrical Isolation | 2 kV |
| Termination Resistor | 120 ohm (selected by jumper) |
| • Driver Support | |
| Windows | Windows 2000, Windows XP/2003/Vista/2008 (x86/x64) |
| • Software | |
| Libraries | Visual C/C++, Borland C/C++ |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 85°C (-40 to 185°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Standards and Certifications | |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class B |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11 |
| • MTBF (mean time between failures) | |
| Time | 4,645,502 hrs |
| Standard | Telcordia (Bellcore) SR-332 |
| • Power Requirements | |
| Input Current | 780 mA @ 5 VDC |
| • Warranty | |
| Warranty Period | 5 years |
