CSM-200-1213

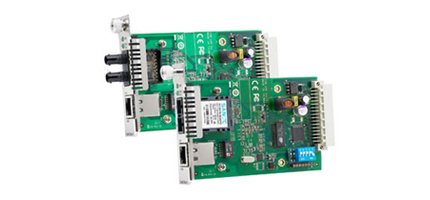

10/100BaseT(X) to 100BaseFX slide-in modules for the NRack System™
CSM-200 modülleri, NRack System™ için sürgülü Ethernet-Fiber medya dönüştürücüleridir. Modüller 10/100BaseT(X) ile 100BaseFX (SC/ST konnektörleri) arasında dönüşüm sağlar ve herhangi bir NRack System ™ şasisine kurulabilir.
- LFP (Link Fault Pass-through) and FEF (Far End Fault)
- Two different operation modes
Pass Through
- Auto Negotiation
- Plug and Play
- Hot-swap
ÜRÜN SİPARİŞ KODLARI :
|
CSM-200-1213 |
10/100BaseT(X) to 100BaseFX slide-in module media converter, multi-mode ST connector |
|
10/100BaseT(X) to 100BaseFX slide-in module media converter, multi-mode SC connector |
|
|
10/100BaseT(X) to 100BaseFX slide-in module media converter, single-mode SC connector |
| • Technology | |
| Standards | IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), 100BaseFX |
| • Interface | |
| RJ45 Ports | 10/100BaseT(X) |
| Fiber Ports | 100BaseFX (SC/ST connectors) |
| LED Indicators | PWR, Fiber Link, 10/100M (TP port) |
| DIP Switches |  |
| • Optical Fiber | |
 |
|
| • Physical Characteristics | |
| Dimensions | 86.8 x 124.3 x 21 mm (3.42 x 4.89 x 0.83 in) |
| Weight | Product only: CSM-200-1213: 115 g (0.25 lb) CSM-200-1214/1218: 125 g (0.28 lb) Packaged: CSM-200-1213: 170 g (0.37 lb) CSM-200-1214/1218: 180 g (0.40 lb) |
| • Environmental Limits | |
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Storage Temperature | -20 to 75°C (-4 to 167°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Power Requirements | |
| Input Voltage | 12 VDC |
| Input Current | 180 mA @ 12 VDC max. |
| • Standards and Certifications | |
| Safety | UL 60950-1 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | EN 61000-4-2 (ESD): Contact: 4 kV; Air: 8 kV EN 61000-4-3 (RS): 80 MHz to 1 GHz: 3 V/m EN 61000-4-4 (EFT): Power: 1 kV; Signal: 0.5 kV EN 61000-4-5 (Surge): Power: 1 kV; Signal: 0.5 kV EN 61000-4-6 (CS): 150 kHz to 80 MHz: 3 V/m EN 61000-4-8 (PFMF) EN |
| Freefall | IEC 60068-2-32 |
| • MTBF (mean time between failures) | |
| Time | 1,454,560 hrs |
| Standard | Telcordia (Bellcore), GB |
| • Warranty | |
| Warranty Period | 5 years |
