ED2100002-01 (EDS2100 serisi)
Secure device server with 2 serial port (RS-232/422/485), 921Kbps, RJ45 10/100BASE-T network interface, 32-bit processor, 8MB RAM, 8MB Flash, AES Encryption, SSH and SSL Security

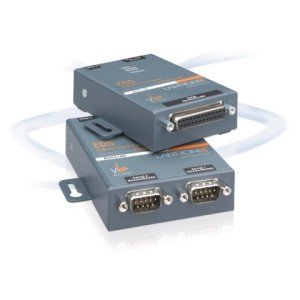

EDS1100 ve EDS2100 serisi, tüm ağ donanımlarına veya tıbbi ekipman, POS terminalleri gibi kenar aygıtlara uzaktan erişim ve yönetimine izin veren hibrit bir çözümdür. Dahili AES, SSH ve SSL özellikli Lantronix'in güçlü işletim sistemi ile güvenli uzaktan erişim ve yönetim olanağı sunar. Tümleşik IPv6 desteği ile Linux geliştiricileri için geniş yazılım kütüphaneleri sağlamaktadır. Lokal olarak seri bağlantı noktası üzerinden veya Telnet, SSH, bir web tarayıcısı (HTTP ve HTTPS) veya SNMP üzerinden uzaktan kurulum yapılabilir. Lantronix'in tescilli "Com Port Redirector” sanallaştırma yazılımı, mevcut seri port uygulamalarının EDS ile herhangi bir kod değişikliği yapılmaksızın çalışmasını sağlar.
- SSH veya SSL ile güvenli bağlantı
- Linux veya Lantronix OS ile esnek tasarım platformu
- Web, CLI, XML ve SNMP ile basit kurulum olanağı
ÜRÜN SİPARİŞ KODLARI :
|
Secure device server with 1 serial port (RS-232/422/485), 921Kbps, RJ45 10/100BASE-T network interface, 32-bit processor, 8MB RAM, 8MB Flash, AES Encryption, SSH and SSL Security |
|
|
EDS1100 One-port, secure device server, 100-240 VAC International power supply with regional, RoHS, w/ Linux OS |
|
|
ED2100002-01 |
Secure device server with 2 serial port (RS-232/422/485), 921Kbps, RJ45 10/100BASE-T network interface, 32-bit processor, 8MB RAM, 8MB Flash, AES Encryption, SSH and SSL Security |
|
EDS2100 Two-port, secure device server, 100-240 VAC International power supply with regional, RoHS, w/ Linux OS |
Features & Specifications for EDS1100 / EDS2100
- High performance 32-bit processor
On-board memory
- 8MB SDRAM/8MB Flash
Serial Interface
- Modes: Software selectable RS232, RS422 or RS485 (2- and 4-wire configurations supported)
- Software selectable RS485/422 termination and biasing
- Standard and customizable serial data rates from 300 to 921kbps
- Characters: 7 or 8 data bits
- Parity: Odd, even, none
- Stop Bits: 1 or 2
- Modem Control Signals: CTS, RTS, DTR/DCD
- Flow Control: XON/XOFF (software), CTS/RTS (hardware)
Serial Connectors

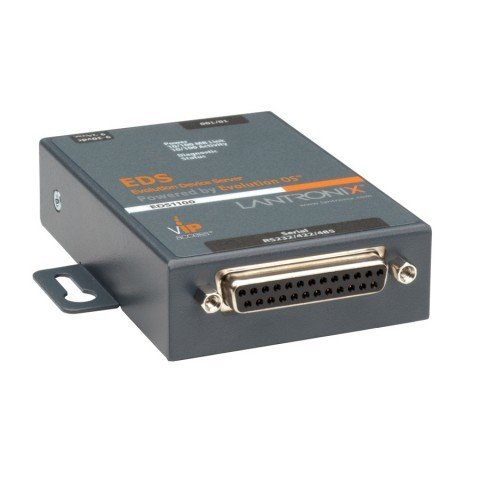

- EDS1100 (Single-port): 1 x DM25F (DCE)

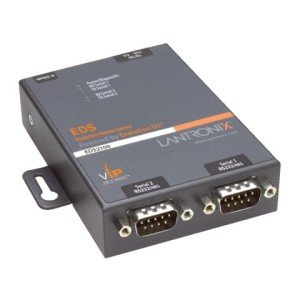

- EDS2100 (Dual-port): 2 x DB9M (DTE)
Network Interface
- 10BaseT and 100Base-TX Link
- Protocols: HTTP, HTTPS, FTP, TFTP, Telnet, TCP/IP, UDP/IP, LPD,DHCP, SSHv2, SSLv3, SNMP v2, Auto IP, RSS, ARP, ICMP, SYSLOG, AES, SMTP, DNS, BOOTP, PPP, RFC2217
Security
- SSL v3, SSH v2 Client & Server, Selectable 128/256/512/1024 Bit certificates
- Encryption: AES, 3DES, RC4
- Authentication: SHA-1, MD5, Base-64 User Access Lists
Software
- Windows 98/NT/2000/XP/Vista-Based DeviceInstaller
- ComPort Redirector
- Secure ComPort Redirector
Management
- Internal Web Manager (SSL Option for secure login)
- CLI (over Serial Ports, Telnet or SSH)
- XML Configuration Records via CLI or FTP
- DeviceInstaller software
- Flash wear leveling and erase cycle statistics
- Firmware: Upgradeable via FTP, TFTP, Web, and Serial Port
Internal Web Server
- Customizable with CGI
- Web content on local file system and updatable through ftp
Environmental
- Extended Temp: -40° to 85° C (-40° to 185° F)
- Storage: -40° to 85° C (-40° to 185° F)
- Relative Humidity: 5 to 95%, non-condensing
- IP Rating: 30
Dimensions
- EDS1100
- Length: 9.0 cm (3.5 in)
- Width: 6.4 cm (2.5 in)
- Height: 2.3 cm (0.9 in)
- Weight: 0.20 kg (0.45 lb)
- EDS2100
- Length: 9.5 cm (3.7 in)
- Width: 7.2 cm (2.8 in)
- Height: 2.3 cm (0.9 in)
- Weight: 0.4 kg (0.9 lb)
Regulatory Approvals
- FCC Part 15, Subpart B, Class A
- EN55022, Class A
- EN55022 and EN55024
- EN61000-4-2, EN6100-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-6, EN61000-4-11, EN61000-4-11
- ICES-003 Issue 4
- AS/NZS CISPR22, VCCI
- CSA C22.2 No. 60950-1-3
- UL 60950-1, EN60950-1 (Eu)
- CE, C-Tick
Warranty
- 2-year limited Warranty
