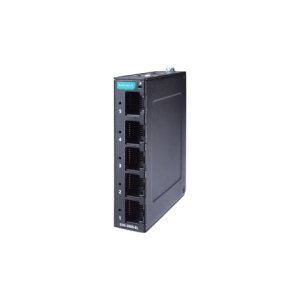

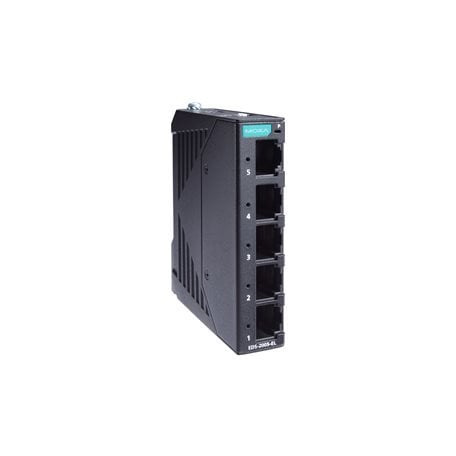

EDS-2005-ELP
5-port entry-level unmanaged Ethernet switches with plastic housing
EDS-2005-ELP serisi endüstriyel Ethernet anahtarları, basit endüstriyel Ethernet bağlantıları gerektiren uygulamalar için ideal olan 5x 10/100M port içerir. EDS-2005-ELP Serisi ile QoS fonksiyonunu kolayca aktif hale getirilebilir veya kapatılabilir.
EDS-2005-ELP Serisi, 12/24/48 VDC tek güç girişi, DIN raya montaj ve yüksek seviye EMI / EMC özelliklerine sahiptir. EDS-2005-ELP Serisi, %100 yanma testinden geçmiştir.
ÖZELLİKLER:
- 10/100BaseT(X) (RJ45 connector)
- Compact size for easy installation
- QoS supported to process critical data in heavy traffic
- IP40-rated plastic housing
| Toplam Port Sayısı | : | 5 |
| Çalışma Sıcaklığı | : | -10/+60C |
| 10/100BaseT(X) | : | 5 |
| MODEL | EDS-2005-EL | EDS-2005-EL-T | EDS-2005-ELP | |
| Ethernet Interface |
10/100BaseT(X) Ports (RJ45 connector)
|
5 | ||
| Full/Half duplex mode | ||||
| Auto MDI/MDI-X connection | ||||
| Auto negotiation speed | ||||
| Standards | IEEE 802.3 for 10BaseT | |||
| IEEE 802.1p for Class of Service | ||||
| IEEE 802.3u for 100BaseT(X) | ||||
| IEEE 802.3x for flow control | ||||
| Switch Properties |
Processing Type
|
Store and Forward | ||
| MAC Table Size | 8 K | |||
| Packet Buffer Size | 4 Mbits | |||
| DIP Switch Configuration |
Ethernet Interface
|
Quality of Service (QoS), Broadcast Storm Protection (BSP) | ||
| Power Parameters |
Connection
|
1 removable 2-contact terminal block(s) | 1 removable 3-contact terminal block(s) | |
| Input Current | 0.045 A @ 24 VDC | |||
| Input Voltage | 12/24/48 VDC | |||
| Operating Voltage | 9.6 to 60 VDC | |||
| Overload Current Protection | Supported | |||
| Reverse Polarity Protection | Supported | |||
| Physical Characteristics |
Dimensions
|
18 x 81 x 65 mm | 19 x 81 x 65 mm | |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) | |||
| Weight | 105 g | 56 g | ||
| Housing | Metal | Plastic | ||
| Environmental Limits |
Ambient Relative Humidity
|
5 to 95% (non-condensing) | ||
| Operating Temperature | -10 to 60°C | -40 to 75°C | -10 to 60°C | |
| Storage Temperature (package included) | -40 to 85°C | |||
| Standards and Certifications |
Safety
|
UL 61010-2-201, EN 62368-1 (LVD) | ||
| EMC | EN 55032/35 | |||
| EMI | CISPR 22, 32, FCC Part 15B Class A | |||
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV | |||
| IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m | ||||
| IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV | ||||
| IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV | ||||
| IEC 61000-4-6 CS: 10 V | ||||
| IEC 61000-4-8 PFMF | ||||
| Shock | IEC 60068-2-27 | |||
| Vibration | IEC 60068-2-6 | |||
| Freefall | IEC 60068-2-32 | |||
| MTBF |
Time
|
4,814,369 hrs | ||
| Standards | Telcordia (Bellcore), GB | |||
