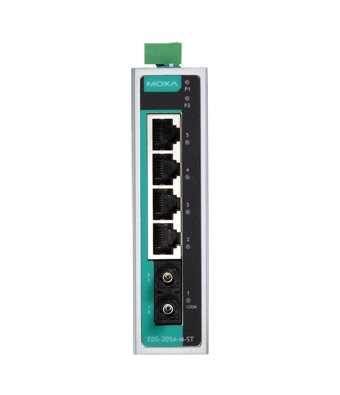

EDS-205A-S-SC
5-port unmanaged Ethernet switch
- 10/100BaseT(X) (RJ45 konnektır), 100BaseFX (multi/single-mode, SC or ST konnektor)
- Yedekli çift 12/24/48 VDC, 18 to 30 VAC güç girişleri
- IP30 aluminum housing
- Sağlam donanımı zorlu ortamlar için uygundur. (Class 1 Div. 2/ATEX Zone 2), Ulaşım (NEMA TS2/ EN 50121-4/e-Mark), and Marine (DNV/GL/LR/ABS/NK) sertifikalarına sahiptir.
- -40 to 75°C aralığında çalışma sıcaklığı (T modeller)
|
Unmanaged Ethernet switch with 5 10/100BaseT(X) ports, -10 to 60°C operating temperature |
|
|
Unmanaged Ethernet switch with 5 10/100BaseT(X) ports, -40 to 75°C operating?temperature |
|
|
Unmanaged Ethernet switch with 4 10/100BaseT(X) ports, and 1 100BaseFX multi-mode port with SC connector, -10 to 60°C operating temperature |
|
|
Unmanaged Ethernet switch with 4 10/100BaseT(X) ports, and 1 100BaseFX multi-mode port with SC connector, -40 to 75°C operating temperature |
|
|
Unmanaged Ethernet switch with 4 10/100BaseT(X) ports, and 1 100BaseFX multi-mode port with ST connector, -10 to 60°C operating temperature |
|
|
Unmanaged Ethernet switch with 4 10/100BaseT(X) ports, and 1 100BaseFX multi-mode port with ST connector, -40 to 75°C operating temperature |
|
|
EDS-205A-S-SC |
Unmanaged Ethernet switch with 4 10/100BaseT(X) ports, and 1 100BaseFX single-mode port with SC connector, -10 to 60°C operating temperature |
|
Unmanaged Ethernet switch with 4 10/100BaseT(X) ports, and 1 100BaseFX single-mode port with SC connector, -40 to 75°C operating temperature |
| Toplam Port Sayısı | : | 5 |
| Çalışma Sıcaklığı | : | -10/+60C |
| 10/100BaseT(X) | : | 4 |
| 100BaseFX SFP | : | 1 |
