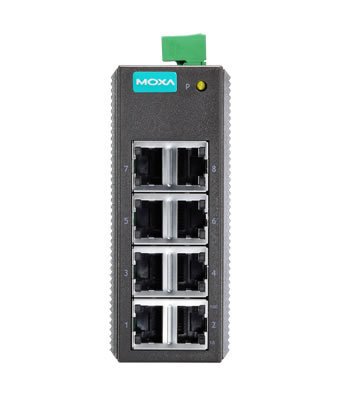

EDS-208
5 ve 8-port entry-level unmanaged Ethernet switch series
- 10/100BaseT(X) (RJ45 konektör), 100BaseFX (multi-mode, SC/ST konnektör)
- IEEE802.3/802.3u/802.3x desteği
- Broadcast storm koruması
- DIN-rail montaja uygun
- -10 to 60°C çalışma sıcaklık aralığı
ÜRÜN SİPARİŞ KODLARI :
|
Entry-level unmanaged Ethernet switch with 5 10/100BaseT(X) ports, plastic housing, -10 to 60°C operating temperature |
|
|
EDS-208 |
Entry-level unmanaged Ethernet switch with 8 10/100BaseT(X) ports, plastic housing, -10 to 60°C operating temperature |
|
Entry-level unmanaged Ethernet switch with 7 10/100BaseT(X) ports, and 1 100BaseFX multi-mode port with SC connector, plastic housing, -10 to 60°C operating temperature |
|
|
Entry-level unmanaged Ethernet switch with 7 10/100BaseT(X) ports, and 1 100BaseFX multi-mode port with ST connector, plastic housing, -10 to 60°C operating temperature |
| Toplam Port Sayısı | : | 8 |
| Çalışma Sıcaklığı | : | -10/+60C |
| 10/100BaseT(X) | : | 8 |
| • Technology | |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for Flow Control |
| Processing Type | Store and Forward |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| • Switch Properties | |
| MAC Table Size | 1 K |
| Packet Buffer Size | 512 kbit |
| • Interface | |
| Fiber Ports | 100BaseFX ports (SC/ST connector, multi-mode) |
| RJ45 Ports | 10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection |
| LED Indicators | Power, 10/100M (TP port), 100M (fiber port) |
| • Optical Fiber | |
| • Power Requirements | |
| Input Voltage | EDS-205: 24 VDC (12 to 48 VDC), 18 to 30 VAC (47 to 63 Hz), single input EDS-208 Series: 24 VDC (12 to 45 VDC), 18 to 30 VAC (47 to 63 Hz), single input |
| Input Current | EDS-205: 0.12 A @ 24 V EDS-208: 0.14 A @ 24 V EDS-208-M: 0.23 A @ 24 V |
| Overload Current Protection | 1.1 A |
| Connection | 1 removable 3-contact terminal block |
| Reverse Polarity Protection | Present |
| • Physical Characteristics | |
| Housing | Plastic, IP30 protection |
| Dimensions | EDS-205: 24.9 x 100 x 86.5 mm (0.98 x 3.94 x 3.41 in) EDS-208 Series: 40 x 100 x 86.5 mm (1.57 x 3.94 x 3.41 in) |
| Weight | EDS-205: 135 g EDS-208 Series: 170 g |
| Installation | DIN-rail mounting |
| • Environmental Limits | |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Standards and Certifications | |
| Safety | EDS-205: UL 508, EN 60950-1 EDS-208 Series: UL 508 |
| EMI | FCC Part 15 Subpart B Class A, EN 55022 Class A |
| EMS | EN 61000-4-2 (ESD) Level 2, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8, EN 61000-4-11 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| Note | Please check Moxa’s website for the most up-to-date certification status. |
| • MTBF (mean time between failures) | |
| Time | EDS-205: 3,915,945 hrs EDS-208 Series: 7,492,000 hrs |
| Database | Telcordia (Bellcore), GB |
