EDS-208A-SS-SC-T
MOXA

EDS-208A-SS-SC-T

Stokta 0 Adet Var
770,00 EUR + KDV
Kategori
Yönetilemez Endüstriyel Anahtarlar , Tüm Ürünler
Datasheet
  Döküman indir
Önsiparişli Ürün
Ürün Bilgisi

EDS-208A-SS-SC-T

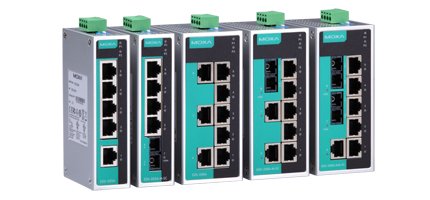

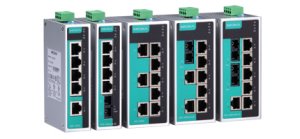

Unmanaged Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX single-mode ports with SC connectors (wide operating temperature: -40 to 75°C)

EDS-208A serisi, MDI/MDI-X otomatik algılama özelliği olan IEEE 802.3 ve IEEE 802.3u/x destekleyen 8-port yönetilemez endüstriyel ethernet cihazlarıdır. EDS-208A, AC/DC güç kaynaklarına eşzamanlı olarak bağlanabilen 12/24/48VDC (9,6-60VDC), 18-30VAC güç girişi sunar. Denizcilik (DNV/GL/LR/ABS/NK), demiryolu, karayolu ve mobil uygulamalar (EN 50121-4/NEMATS2/e-Mark) ile ATEX gerektiren çözümlerde yaygın olarak kullanılmaktadır.



  • 10 / 100BaseT (X) (RJ45 konnektör), 100BaseFX (multi/single mod, SC veya ST konektörü)
  • 12/24/48VDC, 18-30VAC güç girişi
  • IP30 alüminyum gövde
  • Class 1 Div.2/ATEX Zone 2, NEMA TS2 / EN 50121-4 / e-Mark, DNV/GL/LR/ABS/NK
  • -40/+75°C çalışma sıcaklığı (T modelleri)



ÜRÜN SİPARİŞ KODLARI :


EDS-208A

Entry-level Unmanaged Ethernet Switch with 8 10/100BaseT(X) ports, -10 to 60°C

EDS-208A-MM-SC

Unmanaged Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with SC connectors (standard operating temperature: -10 to 60°C)

EDS-208A-MM-SC-T

Unmanaged Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with SC connectors (wide operating temperature: -40 to 75°C)

EDS-208A-MM-ST

Unmanaged Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with ST connectors (standard operating temperature: -10 to 60°C)

EDS-208A-MM-ST-T

Unmanaged Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with ST connectors (wide operating temperature: -40 to 75°C)

EDS-208A-M-SC

Entry-level Unmanaged Ethernet Switch with 7 10/100BaseT(X) ports, and 1 100Base FX multi-mode port with SC connector, -10 to 60°C

EDS-208A-M-SC-T

Unmanaged Ethernet switch with 7 10/100BaseT(X) ports, and 1 100BaseFX multi-mode port with SC connector (wide operating temperature: -40 to 75°C)

EDS-208A-M-ST

Entry-level Unmanaged Ethernet Switch with 7 10/100BaseT(X) ports, and 1 100Base FX multi-mode port with ST connector, -10 to 60°C

EDS-208A-M-ST-T

Unmanaged Ethernet switch with 7 10/100BaseT(X) ports, and 1 100BaseFX multi-mode port with ST connector (wide operating temperature: -40 to 75°C)

EDS-208A-S-SC

Unmanaged Ethernet switch with 7 10/100BaseT(X) ports, and 1 100BaseFX single-mode port with SC connector (standard operating temperature: -10 to 60°C)

EDS-208A-S-SC-T

Unmanaged Ethernet switch with 7 10/100BaseT(X) ports, and 1 100BaseFX single-mode port with SC connector (wide operating temperature: -40 to 75°C)

EDS-208A-SS-SC

Unmanaged Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX single-mode ports with SC connectors (standard operating temperature: -10 to 60°C)

EDS-208A-SS-SC-T

Unmanaged Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX single-mode ports with SC connectors (wide operating temperature: -40 to 75°C)

EDS-208A-T

Unmanaged Ethernet switch with 8 10/100BaseT(X) ports (wide operating temperature: -40 to 75°C)



Toplam Port Sayısı : 8
Çalışma Sıcaklığı : -40/+75C
10/100BaseT(X) : 6
100BaseFX SFP : 2
• Technology
Standards IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for Flow Control
Processing Type Store and Forward
• Switch Properties
MAC Table Size 1 K
Packet Buffer Size 512 kbit
• Interface
RJ45 Ports 10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Fiber Ports 100BaseFX ports (SC/ST connector, multi-mode, single-mode)
DIP Switches Enable/Disable broadcast storm protection
• Optical Fiber
• Power Requirements
Input Voltage 12/24/48 VDC, 18 to 30 VAC (47 to 63 Hz), redundant dual inputs
Operating Voltage 9.6 to 60 VDC, 18 to 30 VAC (47 to 63 Hz)
Input Current EDS-205A: 0.09 A @ 24 VEDS-205A-M/S: 0.1 A @ 24 V
EDS-208A: 0.11 A @ 24 V
EDS-208A-M: 0.15 A @ 24 V
EDS-208A-MM/SS: 0.19 A @ 24 V
Overload Current Protection 1.1 A
Connection 1 removable 4-contact terminal block
Reverse Polarity Protection Present
• Physical Characteristics
Housing Aluminum
IP Rating IP30 protection
Dimensions EDS-205A Series: 30 x 115 x 70 mm (1.18 x 4.52 x 2.76 in)
EDS-208A Series: 50 x 115 x 70 mm (1.96 x 4.52 x 2.76 in)
Weight EDS-205A Series: 175 g (0.39 lb)
EDS-208A Series: 275 g (0.61 lb)
Installation DIN-rail mounting, wall mounting (with optional kit)
• Environmental Limits
Operating Temperature Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
• Standards and Certifications
Safety UL 508
Hazardous Location UL/cUL Class 1 Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nA nC IIC T4 Gc
EMC EN 55032/24
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8
IEC 61000-4-11
Wheeled Vehicles e-Mark (E1) (EDS-208A only)
Traffic Control NEMA TS2
Rail Traffic EN 50121-4
Marine DNV, GL, LR, ABS, NK
Shock IEC 60068-2-27
Freefall IEC 60068-2-32
Vibration IEC 60068-2-6
Note: Please check Moxa’s website for the most up-to-date certification status.
• MTBF (mean time between failures)
Time EDS-205A Series: 3,040,784 hrs
EDS-208A Series: 2,428,212 hrs
Standard Telcordia (Bellcore), GB
• Warranty
Warranty Period 5 years
Details See www.moxa.com/warranty
