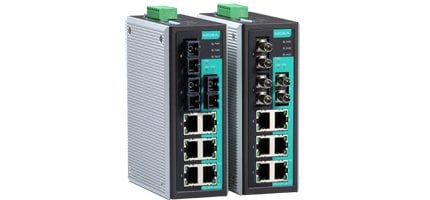

EDS-309-3M-SC
9-port unmanaged Ethernet switchess
EDS-309, endüstriyel Ethernet bağlantılarınız için ekonomik bir çözüm sağlayan 9 portlu yönetilemez ethernet anahtarlarıdır. Dahili röle uyarı fonksiyonu, güç veya bağlantı kesilmeleri meydana geldiğinde ağ mühendislerini uyarır. Tehlikeli alanlarda (Class 1 Div. 2 / ATEX Zone 2) kullanılabilir. FCC, UL ve CE standartlarına uygundur. Bu serideki ürünler %100 yanma testinden geçmektedir.
- Relay output warning for power failure and port break alarm
- Broadcast storm protection
- -40 to 75°C operating temperature range (T models)
ÜRÜN SİPARİŞ KODLARI :
|
EDS-309-3M-SC |
Unmanaged Ethernet switch with 6 10/100BaseT(X) ports, and 3 100BaseFX multi-mode ports with SC connectors, 0 to 60°C operating?temperature |
|
Unmanaged Ethernet switch with 6 10/100BaseT(X) ports, and 3 100BaseFX multi-mode ports with SC connectors, -40 to 75°C operating temperature |
|
|
Unmanaged Ethernet switch with 6 10/100BaseT(X) ports, and 3 100BaseFX multi-mode ports with ST connectors, 0 to 60°C operating temperature |
|
|
Unmanaged Ethernet switch with 6 10/100BaseT(X) ports, and 3 100BaseFX multi-mode ports with ST connectors, -40 to 75°C operating temperature |
| Toplam Port Sayısı | : | 9 |
| Çalışma Sıcaklığı | : | 0/+60C |
| 10/100BaseT(X) | : | 6 |
| 100BaseFX SFP | : | 3 |
| • Technology | |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for Flow Control |
| Processing Type | Store and Forward |
| • Switch Properties | |
| MAC Table Size | EDS-305/308/309: 1K EDS-316: 4K |
| Packet Buffer Size | EDS-305: N/A EDS-308/309: 512 kbit EDS-316: 1.25 Mbit |
| • Interface | |
| RJ45 Ports | 10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection |
| Fiber Ports | 100BaseFX ports (SC/ST connector) |
| DIP Switches | • Port break alarm mask • Enable/disable broadcast storm protection (EDS-316) |
| Alarm Contact | 1 relay output with current carrying capacity of 1 A @ 24 VDC |
| • Optical Fiber | |
| • Power Requirements | |
| Input Voltage | EDS-305/308: 24 VDC, redundant dual inputs EDS-309: 24 VDC, redundant dual inputs EDS-316: 12/24/48 VDC, redundant dual inputs |
| Operating Voltage | EDS-305/308: 12 to 48 VDC EDS-309: 12 to 45 VDC EDS-316: 9.6 to 60 VDC |
| Input Current | EDS-305: 0.11 A @ 24 V EDS-305-M/S: 0.13 A @ 24 V EDS-308: 0.11 A @ 24 V EDS-308-M/S: 0.17 A @ 24 V EDS-308-MM/SS: 0.19 A @ 24 V EDS-309-3M: 0.26 A @ 24 V EDS-316: 0.24 A @ 24 V EDS-316-M/S/MM/SS/MS: 0.31 A @ 24 V |
| Overload Current Protection | EDS-305, EDS-305-M, EDS-305-S, EDS-308: 1.1 A EDS-308-M/S/MM/SS, EDS-309 Series: 1.6 A EDS-316 Series: 2.5 A |
| Connection | 1 removable 6-pin terminal block |
| Reverse Polarity Protection | Supported |
| • Physical Characteristics | |
| Housing | Metal |
| IP Rating | IP30 protection |
| Dimensions | EDS-305/308/309 Series: 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in) EDS-316 Series: 80.1 x 135 x 105 mm (3.15 x 5.31 x 4.13 in) |
| Weight | EDS-305/308/309 Series: 790 g (1.75 lb) EDS-316 Series: 1140 g (2.52 lb) |
| Installation | DIN-rail mounting, wall mounting (with optional kit) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Standards and Certifications | |
| Safety | EDS-305 Series: UL 508, UL 60950-1, CSA C22.2 No. 60950-1 EDS-308/309/316 Series: UL 508, UL 60950-1, CSA C22.2 No. 60950-1, EN 60950-1 |
| Hazardous Location | UL/cUL Class 1 Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nA nC IIC T4 Gc |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz, 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 3 V (EDS-309/316: 10 V) IEC 61000-4-8 |
| Marine | DNV, GL |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| Note | Please check Moxa’s website for the most up-to-date certification status. |
| • MTBF (mean time between failures) | |
| Time | EDS-305 Series: 422,000 hrs EDS-308 Series: 255,000 hrs EDS-309 Series: 396,000 hrs EDS-316 Series: 257,000 hrs |
| Standard | MIL-HDBK-217F, GB 25°C |
| • Warranty | |
| Warranty Period | 5 years |
