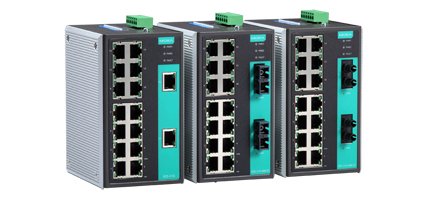

EDS-316-S-SC
16-port unmanaged Ethernet switches
EDS-316 serisi, endüstriyel ethernet uygulamaları için ekonomik bir çözüm sunan 16-port’lu yönetilemez endüstriyel anahtarlardır. Dahili röle uyarı fonksiyonu, elektrik kesintileri veya bağlantı kesilmesi durumunda ağ yöneticilerini uyarır. ATEX gerektiren uygulamalar için tasarlanmıştır. FCC, UL ve CE standartlarına uygundur ve standart çalışma sıcaklık aralığı modelleri (0 ila 60 ° C) ve geniş çalışma sıcaklık aralığı modelleri (-40 ila 75 ° C) olmak üzere iki modeldir.
- Güç kesintisi ve hat kesinti uyarısı için röle çıkışı
- Broadcast storm koruması
- -40/+75°C çalışma sıcaklığı (T modelleri)
ÜRÜN SİPARİŞ KODLARI :
|
Industrial Unmanaged Ethernet Switch with 16 10/100BaseT(X) ports, 0 to 60°C |
|
|
Industrial Unmanaged Ethernet Switch with 16 10/100BaseT(X) ports, -40 to 75°C |
|
|
Industrial Unmanaged Ethernet Switch with 14 10/100BaseT(X) ports, 2 multi mode 100BaseFX ports, SC connector, 0 to 60°C |
|
|
Industrial Unmanaged Ethernet Switch with 14 10/100BaseT(X) ports, 2 multi mode 100BaseFX ports, SC connector, -40 to 75°C |
|
|
Industrial Unmanaged Ethernet Switch with 14 10/100BaseT(X) ports, 2 multi mode 100BaseFX ports, ST connector, 0 to 60°C |
|
|
Industrial Unmanaged Ethernet Switch with 14 10/100BaseT(X) ports, 2 multi mode 100BaseFX ports, ST connector, -40 to 75°C |
|
|
Industrial Unmanaged Ethernet Switch with 15 10/100BaseT(X) ports, 1 multi mode 100BaseFX port, SC connector, 0 to 60°C |
|
|
Industrial Unmanaged Ethernet Switch with 15 10/100BaseT(X) ports, 1 multi mode 100BaseFX port, SC connector, -40 to 75°C |
|
|
Industrial Unmanaged Ethernet Switch with 15 10/100BaseT(X) ports, 1 multi mode 100BaseFX port, ST connector, 0 to 60°C |
|
|
Industrial Unmanaged Ethernet Switch with 15 10/100BaseT(X) ports, 1 multi mode 100BaseFX port, ST connector, -40 to 75°C |
|
|
Industrial Unmanaged Ethernet Switch with 15 10/100BaseT(X) ports, 1 single mode 100BaseFX port, SC connector, 0 to 60°C |
|
|
EDS-316-S-SC-T |
Industrial Unmanaged Ethernet Switch with 15 10/100BaseT(X) ports, 1 single mode 100BaseFX port, SC connector, -40 to 75°C |
|
Industrial Unmanaged Ethernet Switch with 14 10/100BaseT(X) ports, 2 single mode 100BaseFX ports, SC connector, 0 to 60°C |
|
|
Industrial Unmanaged Ethernet Switch with 14 10/100BaseT(X) ports, 2 single mode 100BaseFX ports, connector, -40 to 75°C |
|
|
Industrial Unmanaged Ethernet Switch with 14 10/100BaseT(X) ports, 1 multi mode and 1 single mode 100BaseFX ports, SC connector, 0 to 60°C |
|
|
Industrial Unmanaged Ethernet Switch with 14 10/100BaseT(X) ports, 2 long-haul (80 km) single mode 100BaseFX ports, SC connector, 0 to 60°C |
| Toplam Port Sayısı | : | 16 |
| Çalışma Sıcaklığı | : | 0/+60C |
| 10/100BaseT(X) | : | 15 |
| 100BaseFX SFP | : | 1 |
| • Technology | |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for Flow Control |
| Processing Type | Store and Forward |
| • Switch Properties | |
| MAC Table Size | EDS-305/308/309: 1K EDS-316: 4K |
| Packet Buffer Size | EDS-305: N/A EDS-308/309: 512 kbit EDS-316: 1.25 Mbit |
| • Interface | |
| RJ45 Ports | 10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection |
| Fiber Ports | 100BaseFX ports (SC/ST connector) |
| DIP Switches | • Port break alarm mask • Enable/disable broadcast storm protection (EDS-316) |
| Alarm Contact | 1 relay output with current carrying capacity of 1 A @ 24 VDC |
| • Optical Fiber | |
| • Power Requirements | |
| Input Voltage | EDS-305/308: 24 VDC, redundant dual inputs EDS-309: 24 VDC, redundant dual inputs EDS-316: 12/24/48 VDC, redundant dual inputs |
| Operating Voltage | EDS-305/308: 12 to 48 VDC EDS-309: 12 to 45 VDC EDS-316: 9.6 to 60 VDC |
| Input Current | EDS-305: 0.11 A @ 24 V EDS-305-M/S: 0.13 A @ 24 V EDS-308: 0.11 A @ 24 V EDS-308-M/S: 0.17 A @ 24 V EDS-308-MM/SS: 0.19 A @ 24 V EDS-309-3M: 0.26 A @ 24 V EDS-316: 0.24 A @ 24 V EDS-316-M/S/MM/SS/MS: 0.31 A @ 24 V |
| Overload Current Protection | EDS-305, EDS-305-M, EDS-305-S, EDS-308: 1.1 A EDS-308-M/S/MM/SS, EDS-309 Series: 1.6 A EDS-316 Series: 2.5 A |
| Connection | 1 removable 6-pin terminal block |
| Reverse Polarity Protection | Supported |
| • Physical Characteristics | |
| Housing | Metal |
| IP Rating | IP30 protection |
| Dimensions | EDS-305/308/309 Series: 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in) EDS-316 Series: 80.1 x 135 x 105 mm (3.15 x 5.31 x 4.13 in) |
| Weight | EDS-305/308/309 Series: 790 g (1.75 lb) EDS-316 Series: 1140 g (2.52 lb) |
| Installation | DIN-rail mounting, wall mounting (with optional kit) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Standards and Certifications | |
| Safety | EDS-305 Series: UL 508, UL 60950-1, CSA C22.2 No. 60950-1 EDS-308/309/316 Series: UL 508, UL 60950-1, CSA C22.2 No. 60950-1, EN 60950-1 |
| Hazardous Location | UL/cUL Class 1 Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nA nC IIC T4 Gc |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz, 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 3 V (EDS-309/316: 10 V) IEC 61000-4-8 |
| Marine | DNV, GL |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| Note | Please check Moxa’s website for the most up-to-date certification status. |
| • MTBF (mean time between failures) | |
| Time | EDS-305 Series: 422,000 hrs EDS-308 Series: 255,000 hrs EDS-309 Series: 396,000 hrs EDS-316 Series: 257,000 hrs |
| Standard | MIL-HDBK-217F, GB 25°C |
| • Warranty | |
| Warranty Period | 5 years |
