EDS-316-SS-SC-80
MOXA

EDS-316-SS-SC-80

Stokta 0 Adet Var
2.849,00 EUR + KDV
Kategori
Yönetilemez Endüstriyel Anahtarlar , Tüm Ürünler
Datasheet
  Döküman indir
Önsiparişli Ürün
Ürün Bilgisi

EDS-316-SS-SC-80

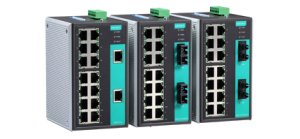

16-port unmanaged Ethernet switches

EDS-316 serisi, endüstriyel ethernet uygulamaları için ekonomik bir çözüm sunan 16-port’lu yönetilemez endüstriyel anahtarlardır. Dahili röle uyarı fonksiyonu, elektrik kesintileri veya bağlantı kesilmesi durumunda ağ yöneticilerini uyarır. ATEX gerektiren uygulamalar için tasarlanmıştır. FCC, UL ve CE standartlarına uygundur ve standart çalışma sıcaklık aralığı modelleri (0 ila 60 ° C) ve geniş çalışma sıcaklık aralığı modelleri (-40 ila 75 ° C) olmak üzere iki modeldir.

  • Güç kesintisi ve hat kesinti uyarısı için röle çıkışı
  • Broadcast storm koruması
  • -40/+75°C çalışma sıcaklığı (T modelleri)



ÜRÜN SİPARİŞ KODLARI :



EDS-316

Industrial Unmanaged Ethernet Switch with 16 10/100BaseT(X) ports, 0 to 60°C

EDS-316-T

Industrial Unmanaged Ethernet Switch with 16 10/100BaseT(X) ports, -40 to 75°C

EDS-316-MM-SC

Industrial Unmanaged Ethernet Switch with 14 10/100BaseT(X) ports, 2 multi mode 100BaseFX ports, SC connector, 0 to 60°C

EDS-316-MM-SC-T

Industrial Unmanaged Ethernet Switch with 14 10/100BaseT(X) ports, 2 multi mode 100BaseFX ports, SC connector, -40 to 75°C

EDS-316-MM-ST

Industrial Unmanaged Ethernet Switch with 14 10/100BaseT(X) ports, 2 multi mode 100BaseFX ports, ST connector, 0 to 60°C

EDS-316-MM-ST-T

Industrial Unmanaged Ethernet Switch with 14 10/100BaseT(X) ports, 2 multi mode 100BaseFX ports, ST connector, -40 to 75°C

EDS-316-M-SC

Industrial Unmanaged Ethernet Switch with 15 10/100BaseT(X) ports, 1 multi mode 100BaseFX port, SC connector, 0 to 60°C

EDS-316-M-SC-T

Industrial Unmanaged Ethernet Switch with 15 10/100BaseT(X) ports, 1 multi mode 100BaseFX port, SC connector, -40 to 75°C

EDS-316-M-ST

Industrial Unmanaged Ethernet Switch with 15 10/100BaseT(X) ports, 1 multi mode 100BaseFX port, ST connector, 0 to 60°C

EDS-316-M-ST-T

Industrial Unmanaged Ethernet Switch with 15 10/100BaseT(X) ports, 1 multi mode 100BaseFX port, ST connector, -40 to 75°C

EDS-316-S-SC

Industrial Unmanaged Ethernet Switch with 15 10/100BaseT(X) ports, 1 single mode 100BaseFX port, SC connector, 0 to 60°C

EDS-316-S-SC-T

Industrial Unmanaged Ethernet Switch with 15 10/100BaseT(X) ports, 1 single mode 100BaseFX port, SC connector, -40 to 75°C

EDS-316-SS-SC

Industrial Unmanaged Ethernet Switch with 14 10/100BaseT(X) ports, 2 single mode 100BaseFX ports, SC connector, 0 to 60°C

EDS-316-SS-SC-T

Industrial Unmanaged Ethernet Switch with 14 10/100BaseT(X) ports, 2 single mode 100BaseFX ports, connector, -40 to 75°C

EDS-316-MS-SC

Industrial Unmanaged Ethernet Switch with 14 10/100BaseT(X) ports, 1 multi mode and 1 single mode 100BaseFX ports, SC connector, 0 to 60°C

  EDS-316-SS-SC-80

Industrial Unmanaged Ethernet Switch with 14 10/100BaseT(X) ports, 2 long-haul (80 km) single mode 100BaseFX ports, SC connector, 0 to 60°C

Toplam Port Sayısı : 16
Çalışma Sıcaklığı : 0/+60C
10/100BaseT(X) : 14
100BaseFX SFP : 2
• Technology
Standards IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for Flow Control
Processing Type Store and Forward
• Switch Properties
MAC Table Size EDS-305/308/309: 1K
EDS-316: 4K
Packet Buffer Size EDS-305: N/A
EDS-308/309: 512 kbit
EDS-316: 1.25 Mbit
• Interface
RJ45 Ports 10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Fiber Ports 100BaseFX ports (SC/ST connector)
DIP Switches • Port break alarm mask
• Enable/disable broadcast storm protection (EDS-316)
Alarm Contact 1 relay output with current carrying capacity of 1 A @ 24 VDC
• Optical Fiber
• Power Requirements
Input Voltage EDS-305/308: 24 VDC, redundant dual inputs
EDS-309: 24 VDC, redundant dual inputs
EDS-316: 12/24/48 VDC, redundant dual inputs
Operating Voltage EDS-305/308: 12 to 48 VDC
EDS-309: 12 to 45 VDC
EDS-316: 9.6 to 60 VDC
Input Current EDS-305: 0.11 A @ 24 V
EDS-305-M/S: 0.13 A @ 24 V
EDS-308: 0.11 A @ 24 V
EDS-308-M/S: 0.17 A @ 24 V
EDS-308-MM/SS: 0.19 A @ 24 V
EDS-309-3M: 0.26 A @ 24 V
EDS-316: 0.24 A @ 24 V
EDS-316-M/S/MM/SS/MS: 0.31 A @ 24 V
Overload Current Protection EDS-305, EDS-305-M, EDS-305-S, EDS-308: 1.1 A
EDS-308-M/S/MM/SS, EDS-309 Series: 1.6 A
EDS-316 Series: 2.5 A
Connection 1 removable 6-pin terminal block
Reverse Polarity Protection Supported
• Physical Characteristics
Housing Metal
IP Rating IP30 protection
Dimensions EDS-305/308/309 Series:
53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
EDS-316 Series:
80.1 x 135 x 105 mm (3.15 x 5.31 x 4.13 in)
Weight EDS-305/308/309 Series: 790 g (1.75 lb)
EDS-316 Series: 1140 g (2.52 lb)
Installation DIN-rail mounting, wall mounting (with optional kit)
• Environmental Limits
Operating Temperature Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
• Standards and Certifications
Safety EDS-305 Series: UL 508, UL 60950-1, CSA C22.2 No. 60950-1
EDS-308/309/316 Series: UL 508, UL 60950-1,
CSA C22.2 No. 60950-1, EN 60950-1
Hazardous Location UL/cUL Class 1 Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nA nC IIC T4 Gc
EMC EN 55032/24
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz, 3 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 3 V (EDS-309/316: 10 V)
IEC 61000-4-8
Marine DNV, GL
Shock IEC 60068-2-27
Freefall IEC 60068-2-32
Vibration IEC 60068-2-6
Note Please check Moxa’s website for the most up-to-date certification status.
• MTBF (mean time between failures)
Time EDS-305 Series: 422,000 hrs
EDS-308 Series: 255,000 hrs
EDS-309 Series: 396,000 hrs
EDS-316 Series: 257,000 hrs
Standard MIL-HDBK-217F, GB 25°C
• Warranty
Warranty Period 5 years
Details See www.moxa.com/warranty
