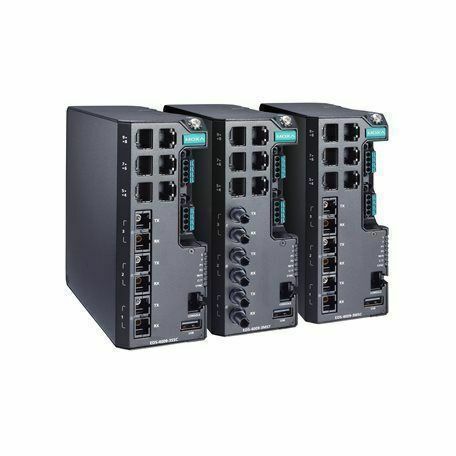

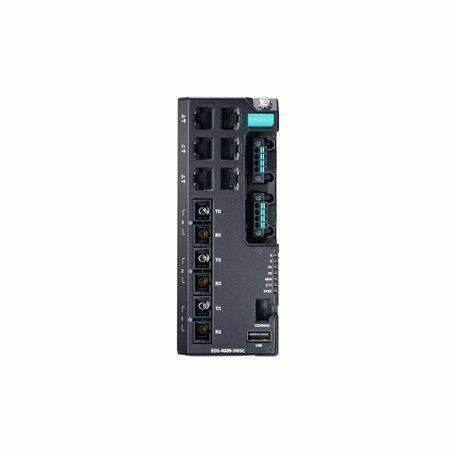

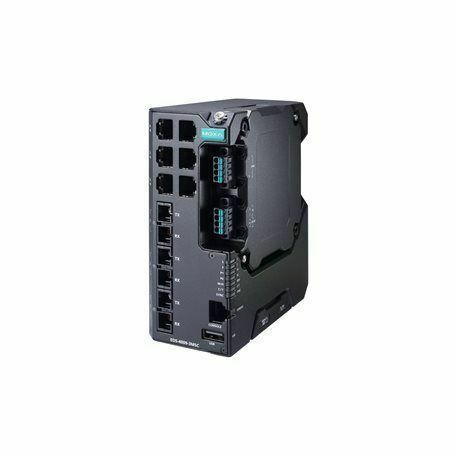

EDS-4009-3SSC-LV-T
Managed Ethernet switch with 6 10/100BaseT(X) ports, 3 100BaseFX single-mode ports with SC connectors, dual power inputs 12/24/48 VDC, -40 to 75C operating temperature
- "IEC 62443-4-1" ve "IEC 62443-4-2" endüstriyel siber güvenlik standartlarıyla uyumlu
- Turbo Ring ve Turbo Chain (recovery time< 20 ms @ 250 switch) ve ağ yedekliliği için RSTP/STP
- Farklı güç girişi seçenekleri
- Kompakt ve esnek gövde tasarımı
- Kolay ağ yönetimi için "MXstudio" desteği
| Toplam Port Sayısı | : | 9 |
| Çalışma Sıcaklığı | : | -40/+75C |
| 10/100BaseT(X) | : | 6 |
| 100BaseFX SingleMode | : | 3 |
| Konnektör Tipi | : | SC |
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
100BaseFX Ports (multi-mode SC connector)
EDS-4009-3MSC-LV/-HV/-T models: 3
100BaseFX Ports (multi-mode ST connector)
EDS-4009-3MST-LV/-HV/-T models: 3
100BaseFX Ports (single-mode SC connector)
EDS-4009-3SSC-LV/-HV/-T models: 3
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.1Q for VLAN Tagging
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1X for authentication
Ethernet Software Features
Ethernet Software Features
Filter
GMRP, GVRP ,GARP ,802.1Q VLAN ,IGMP Snooping v1/v2/v3 ,IGMP Querier
Management
IPv4/IPv6, Flow control , Back Pressure Flow Control , DHCP Server/Client , ARP, RARP ,LLDP ,Port Mirror , ,Linkup Delay , SMTP , SNMP Trap , SNMP Inform , SNMPv1/v2c/v3 , RMON ,TFTP ,SFTP ,http ,HTTPS ,Telnet ,Syslog ,Private MIB
MIB
P-BRIDGE MIB
Q-BRIDGE MIB
IEEE8021-SPANNING-TREE-MIB
Security
Broadcast storm protection
Time Management
Protocols
IPv4/IPv6 ,TCP/IP ,UDP ,ICMP ,ARP ,RARP ,TFTP ,DNS ,NTP Client ,DHCP Server ,DHCP Client ,802.1X ,QoS ,HTTPS ,http ,Telnet ,SMTP ,SNMPv1/v2c/v3 ,RMON ,Syslog
Switch Properties
MAC Table Size 16 K
Jumbo Frame Size 9.216 KB
LED Interface
LED Indicators
PWR1, PWR2, STATE, FAULT, MSTR/HEAD, CPLR/TAIL, SYNC
Serial Interface
Console Port RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
USB Interface
USB Connector USB Type A (Reserved)
Input/Output Interface
Alarm Contact Channels
1, Relay output with current carrying capacity of 1 A @ 24 VDC
Digital Input Channels
1
Digital Inputs
+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA
Buttons
Reset button
DIP Switch Configuration
DIP Switches
Turbo Ring, Master, Coupler, Reserve
Power Parameters
Connection
2 removable 4-contact terminal block(s)
Pre-installed Power Module
-LV/-LV-T models: PWR-100–LV
-HV/-HV-T models: PWR-105-HV-I
Note
The EDS-4009 Series supports modular power supplies. The model names and power parameters are determined by the installed power module.
For example:
EDS-4009-T + PWR-100–LV = EDS-4009-LV-T
EDS-4009-T + PWR-105-HV-I = EDS-4009-HV-T
If you install a different power module, refer to the specifications of the corresponding model. For example, if you replace the power module of the EDS-4009–LV-T
with the PWR-105–HV-I, refer to the specifications of the EDS-4009–HV-T.
Input Voltage
-LV/-LV-T models: 12/24/48 VDC, Redundant dual inputs
-HV/-HV-T models: 110/220 VDC/VAC, Single input
Operating Voltage
-LV/-LV-T models: 9.6 to 60 VDC
-HV/-HV-T models: 88 to 300 VDC, 85 to 264 VAC
Input Current
-LV/-LV-T models: 12-48 VDC, 1.50-0.40 A or 24 VDC, 0.70 A
-HV/-HV-T models: 110-220 VAC, 50-60 Hz, 0.30-0.20 A or 110-220 VDC, 0.30-0.20 A
Power Consumption (Max.)
EDS-4009-3MSC-LV(-T) models: 9.51 W
EDS-4009-3MSC-HV(-T) models: 12.14 W
EDS-4009-3MST-LV(-T) models: 9.51 W
EDS-4009-3MST-HV(-T) models: 12.17 W
EDS-4009-3SSC-LV(-T) models: 9.51 W
EDS-4009-3SSC-HV(-T) models: 12.34 W
Overload Current Protection Supported
Reverse Polarity Protection Supported
Physical Characteristics
IP Rating
IP40
Dimensions
EDS-4009-3MSC(-T)/EDS-4009-3SSC(-T) models: 55 x 140 x 120 mm (2.17 x 5.51 x 4.72 in)
EDS-4009-3MST(-T) models: 55 x 140 x 132 mm (2.17 x 5.51 x 5.20 in)
Weight
EDS-4009-3MSC(-T) models: 821.5 g (1.81 lb)
EDS-4009-3MST(-T) models: 920 g (2.03 lb)
EDS-4009-3SSC(-T) models: 932 g (2.05 lb)
Installation
DIN-rail mounting
Wall mounting (with optional kit)
Housing
Metal
Environmental Limits
Operating Temperature Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Standards and Certifications
Industrial Cybersecurity IEC 62443-4-1
IEC 62443-4-2
Safety UL 61010-2-201
EMC EN 62368-1 (LVD)
EN 55032/35
EN 61000-6-2/-6-4
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Maritime -LV/-LV-T models: DNV, ABS, NK, LR
Vibration IEC 60068-2-6
Shock IEC 60068-2-27
Freefall IEC 60068-2-32
Railway EN 50121-4
Traffic Control NEMA TS2
Power Substation IEC 61850-3, IEEE 1613 Class 1
Hazardous Locations ATEX (-LV/-LV-T models)
IECEx (LV/-LV-T models)
Class I Division (LV/-LV-T models)
MTBF
Time
EDS-4009-3MSC-LV/-LV-T models: 972,841 hrs
EDS-4009-3MSC-HV/-HV-T models: 482,263 hrs
EDS-4009-3MST-LV/-LV-T models: 972,841 hrs
EDS-4009-3MST-HV/-HV-T models: 482,263 hrs
EDS-4009-3SSC-LV/-LV-T models: 972,841 hrs
EDS-4009-3SSC-HV/-HV-T models: 482,263 hrs
