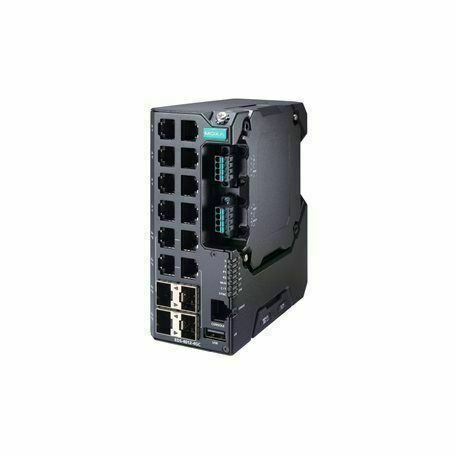

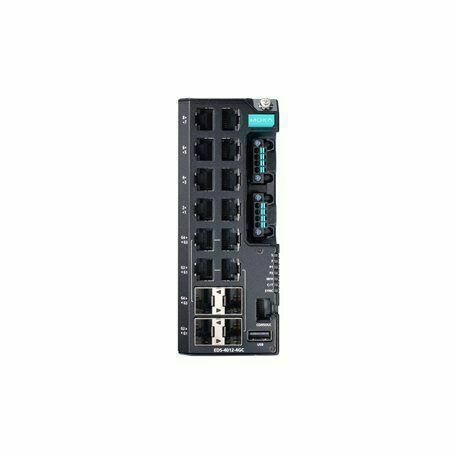

EDS-4012-4GS-LVA
Managed Gigabit Ethernet switch with 8 10/100BaseT(X) ports with 802.3bt PoE, 4 100/1000BaseSFP ports, dual power inputs 12/24/48 VDC, 48 VDC for PoE, -10 to 60°C operating temperature

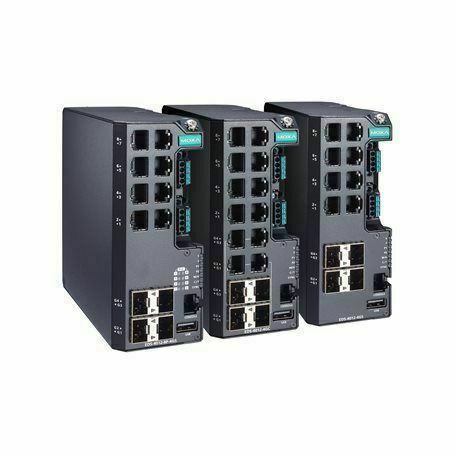

EDS-4012 Serisi, 4adet 1 Gbps fiber optik uplink port seçeneğine sahip, toplam 12 portlu yönetilebilir Fast Ethernet switch serisidir. Bu seri aynı zamanda yüksek bant genişliğine sahip PoE cihazlarını bağlamak için 4adet 10/100BaseT(X) 802.3af (PoE), 802.3at (PoE+) ve 802.3bt uyumlu PoE port seçeneğine sahip modeller içerir.
- "IEC 62443-4-1" ve "IEC 62443-4-2" endüstriyel siber güvenlik standartlarıyla uyumlu
- Port başına 90 W'a kadar çıkış için IEEE 802.3bt PoE desteği
- Turbo Ring ve Turbo Chain (recovery time < 20 ms @ 250 switch) ve ağ yedekliliği için RSTP/STP
- Çok çeşitli güç girişi seçenekleri
- Kompakt ve esnek gövde tasarımı
- Endüstriyel ağ yönetimi için "MXstudio" desteği
| Toplam Port Sayısı | : | 12 |
| Çalışma Sıcaklığı | : | -10/+60C |
| 10/100BaseT(X) | : | 8 |
| PoE Port | : | 8 |
| 100/1000Base SFP | : | 4 |
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)
EDS-4012-4GS-LV/-HV/-T models: 8
EDS-4012-4GC-LV/-HV/-T models: 8
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
PoE Ports (10/100BaseT(X), RJ45 connector)
EDS-4012-8P-4GS-LVA/-LVB/-T models: 8
100/1000BaseSFP Ports
EDS-4012-4GS-LV/-HV/-T models: 4
EDS-4012-8P-4GS-LVA/-VB/-T models: 4
Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP)
EDS-4012-4GC-LV/-HV/-T models: 4
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.3x for flow control
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.1Q for VLAN Tagging
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1X for authentication
Ethernet Software Features
Filter
GMRP ,GVRP ,GARP ,802.1Q VLAN ,IGMP Snooping v1/v2/v3 ,IGMP Querier ,Management ,IPv4/IPv6 ,Flow control ,Back Pressure Flow Control ,DHCP Server/Client ,ARP ,RARP ,LLDP ,Port Mirror ,Linkup Delay ,SMTP ,SNMP Trap ,SNMP Inform ,SNMPv1/v2c/v3 ,RMON ,TFTP ,SFTP ,http ,HTTPS ,Telnet ,Syslog
Private MIB
MIB
P-BRIDGE MIB
Q-BRIDGE MIB
IEEE8021-SPANNING-TREE-MIB
IEEE8021-PAE-MIB
IEEE8023-LAG-MIB
LLDP-EXT-DOT1-MIB
LLDP-EXT-DOT3-MIB
SNMPv2-MIB
RMON MIB Groups 1, 2, 3, 9
Redundancy Protocols
STP
RSTP
Turbo Ring v2
Turbo Chain
Ring Coupling
Dual-Homing
Link Aggregation
MSTP
Security
Broadcast storm protection
Rate Limit
Trust access control
Static Port Lock
MAC Sticky
HTTPS/SSL
SSH
RADIUS
TACACS+
Login and Password Policy
Access control list
Time Management
SNTP
NTP Server/Client
NTP Authentication
Protocols
IPv4/IPv6 ,TCP/IP ,UDP ,ICMP ,ARP ,RARP ,TFTP ,DNS ,NTP Client ,DHCP Server ,DHCP Client ,802.1X ,QoS ,HTTPS ,http ,Telnet ,SMTP ,SNMPv1/v2c/v3 ,RMON ,Syslog
Switch Properties
MAC Table Size 16 K
Jumbo Frame Size 9.216 KB
Max. No. of VLANs 256
VLAN ID Range VID 1 to 4094
IGMP Groups 512
Priority Queues 4
Packet Buffer Size 1 MB
LED Interface
LED Indicators
PWR1, PWR2, STATE, FAULT, MSTR/HEAD, CPLR/TAIL, SYNC
Serial Interface
Console Port RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
USB Interface
USB Connector USB Type A (Reserved)
Input/Output Interface
Alarm Contact Channels
1, Relay output with current carrying capacity of 1 A @ 24 VDC
Digital Input Channels
1
Digital Inputs
+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA
Buttons
Reset button
DIP Switch Configuration
DIP Switches
Turbo Ring, Master, Coupler, Reserve
Power Parameters
Connection
2 removable 4-contact terminal block(s)
Pre-installed Power Module
-LV/-LV-T models: PWR-100–LV
-HV/-HV-T models: PWR-105-HV-I
-LVA/-LVA-T models: PWR-101-LV-BP-I
-LVB/-LVB-T models: PWR-103-LV-VB-I
Note
The EDS-4012 Series supports modular power supplies. The model names and power parameters are determined by the installed power module.
For example:
EDS-4012-4GS-T + PWR-100–LV = EDS-4012-4GS-LV-T
EDS-4012-4GS-T + PWR-105-HV-I = EDS-4012-4GS-HV-T
If you install a different power module, refer to the specifications of the corresponding model. For example, if you replace the power module of the EDS-4012-4GS–LV-T
with the PWR-105–HV-I, refer to the specifications of the EDS-4012–4GS-HV-T.
Input Voltage
-LV/-LV-T models: 12/24/48 VDC, Redundant dual inputs
-HV/-HV-T models: 110/220 VDC/VAC, Single input
-LVA/-LVA-T models: 48 VDC, Redundant dual inputs
-LVB/-LVB-T models: 12/24/48 VDC, Redundant dual inputs
Operating Voltage
-LV/-LV-T models: 9.6 to 60 VDC
-HV/-HV-T models: 88 to 300 VDC, 85 to 264 VAC
-LVA/-LVA-T models: 44 to 57 VDC (>52 VDC for PoE+ output recommended)
-LVB/-LVB-T models: 12 to 57 VDC (>52 VDC for PoE+ output recommended)
Input Current
-LV/-LV-T models: 12-48 VDC, 1.50-0.40 A or 24 VDC, 0.70 A
-HV/-HV-T models: 110-220 VAC, 50-60 Hz, 0.30-0.20 A or 110-220 VDC, 0.30-0.20 A
-LVA/-LVA-T models: 48 VDC, 5.42 A
-LVB/-LVB-T models: 12/48 VDC, 7.46/4.27 A or 24 VDC, 7.26 A
Power Consumption (Max.)
EDS-4012-4GS-LV/-T models: 10.52 W
EDS-4012-4GS-HV-/T models: 12.22 W
EDS-4012-4GC-LV/-T models: 10.7 W
EDS-4012-4GC-HV/-T models: 13.35 W
EDS-4012-8P-4GS-LVA/-T models:
Without PoE: 13.34 W
With PoE: Max. 240 W for total PD power consumption @ 48 VDC input
EDS-4012-8P-4GS-LVB/-T models:
Without PoE: 15.32 W
With PoE:
Max. 180 W for total PD power consumption @ 48 VDC input
Max. 150 W for total PD power consumption @ 24 VDC input (Max. 120 W for -T model)
Max. 62 W for total PD consumption @ 12 VDC input
Max. PoE Power Output per Port 90 W
Overload Current Protection Supported
Reverse Polarity Protection Supported
Physical Characteristics
IP Rating
IP40
Dimensions
55 x 140 x 120 mm (2.17 x 5.51 x 4.72 in)
Weight
827 g (1.82 lb)
Installation
DIN-rail mounting
Wall mounting (with optional kit)
Housing
Metal
Environmental Limits
Operating Temperature Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Standards and Certifications
Industrial Cybersecurity IEC 62443-4-1
IEC 62443-4-2
Safety UL 61010-2-201
EN 62368-1 (LVD)
EMC EN 55032/35
EN 61000-6-2/-6-4
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Maritime -LV/-LV-T, PoE/PoE-T models: DNV, ABS, NK, LR
Vibration IEC 60068-2-6
Shock IEC 60068-2-27
Freefall IEC 60068-2-32
Railway EN 50121-4
Traffic Control NEMA TS2
Power Substation IEC 61850-3
Hazardous Locations ATEX (-LV/-LV-T models)
IECEx (-LV/-LV-T models:)
Class I Division 2
MTBF
Time
EDS-4012-4GC-LV/-T models: 1,036,336 hrs
EDS-4012-4GC-HV/-T models: 497,392 hrs
EDS-4012-4GS-LV/-T models: 874,838 hrs
EDS-4012-4GS-HV/-T models: 456,870 hrs
