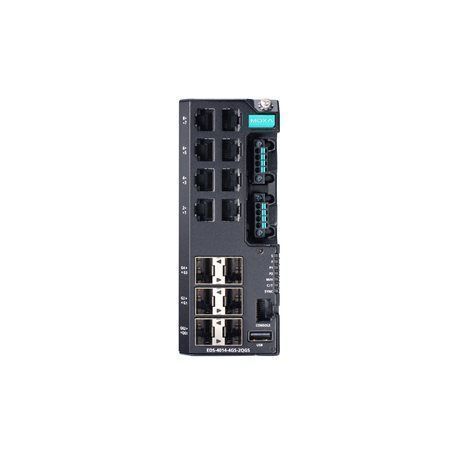

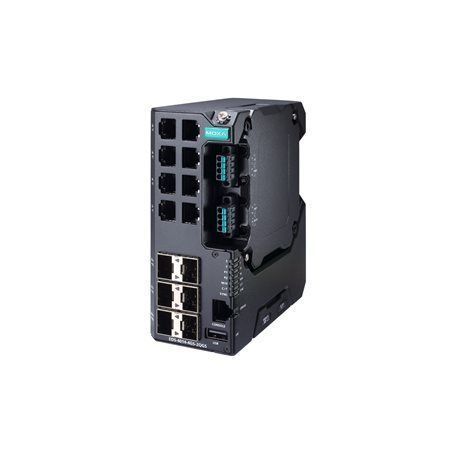

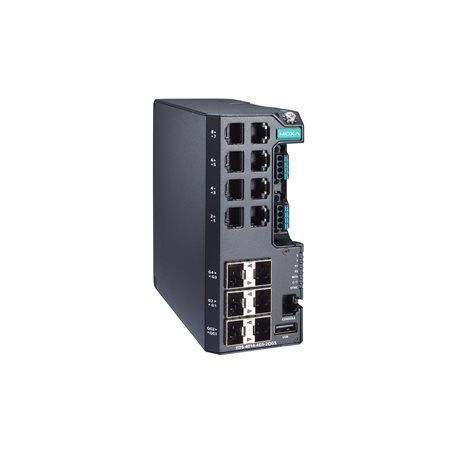

EDS-4014-4GS-2QGS-LV-T
Managed Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 4 100/1000BaseSFP ports, 2 1000/2500BaseSFP ports, dual power inputs 12/24/48 VDC, -40 to 75ÂC operating temperature
EDS-4014 Serisi, 4adet 1 Gbps ve 2adet 2.5Gbps fiber optik uplink port seçeneğine sahip, toplam 12 portlu yönetilebilir Fast Ethernet switch serisidir.
Turbo Ring, Turbo Chain ve RSTP/STP gibi yedek ethernet teknolojileri, sisteminizin güvenilirliğini ve ağ omurganızın kullanılabilirliğini artırır. EDS-4012 Serisi, tümü ölçeklenebilir bir omurgadan yararlanabilen video ve süreç izleme, ITS ve DCS sistemleri gibi zorlu uygulamalar için özel olarak tasarlanmıştır.
EDS-4014 Serisi, ürün güvenliğini kapsayan "IEC 62443-4-2" ve "IEC 62443-4-1" Endüstriyel Siber Güvenlik sertifikalarıyla uyumludur ve müşterilerimizin güvenli endüstriyel ağlarının uyumluluk gereksinimlerini karşılamalarına yardımcı olur.
- "IEC 62443-4-1" ve "IEC 62443-4-2" endüstriyel siber güvenlik standartlarıyla uyumlu
- 2.5Gbps destekli SFP yuvaları
- Turbo Ring ve Turbo Chain (recovery time < 20 ms @ 250 switch) ve ağ yedekliliği için RSTP/STP
- Çok çeşitli güç girişi seçenekleri
- Kompakt ve esnek gövde tasarımı
- Endüstriyel ağ yönetimi için "MXstudio" desteği
| Toplam Port Sayısı | : | 14 |
| Çalışma Sıcaklığı | : | -40/+75C |
| 10/100BaseT(X) | : | 8 |
| 100/1000Base SFP | : | 4 |
| 1000/2500BaseSFP | : | 2 |
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector) 8
Auto MDI/MDI-X connection
Auto negotiation speed
Full/Half duplex mode
100/1000BaseSFP Slots 4
1000/2500BaseSFP Ports 2
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.3bz for 2.5GBaseX
IEEE 802.3x for flow control
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.1Q for VLAN Tagging
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1X for authentication
Ethernet Software Features
Filter
GMRP, GVRP, GARP, 802.1Q VLAN, IGMP Snooping v1/v2/v3, IGMP Querier
Management
IPv4/IPv6, Flow control, Back Pressure Flow Control, DHCP Server/Client, ARP, RARP, LLDP, Port Mirror, Linkup Delay, SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB
MIB
P-BRIDGE MIB,
Q-BRIDGE MIB,
IEEE8021-SPANNING-TREE-MIB,
IEEE8021-PAE-MIB,
IEEE8023-LAG-MIB,
LLDP-EXT-DOT1-MIB,
LLDP-EXT-DOT3-MIB,
SNMPv2-MIB, RMON MIB Groups 1, 2, 3, 9
Q-BRIDGE MIB,
IEEE8021-SPANNING-TREE-MIB,
IEEE8021-PAE-MIB,
IEEE8023-LAG-MIB,
LLDP-EXT-DOT1-MIB,
LLDP-EXT-DOT3-MIB,
SNMPv2-MIB, RMON MIB Groups 1, 2, 3, 9
Redundancy Protocols
STP,
RSTP,
Turbo Ring v2,
Turbo Chain,
Ring Coupling,
Dual-Homing,
Link Aggregation,
MSTP
RSTP,
Turbo Ring v2,
Turbo Chain,
Ring Coupling,
Dual-Homing,
Link Aggregation,
MSTP
Security
Broadcast storm protection,
Rate Limit,
Trust access control,
Static Port Lock,
MAC Sticky,
HTTPS/SSL,
SSH,
RADIUS,
TACACS+,
Access control list,
Login and Password Policy
Rate Limit,
Trust access control,
Static Port Lock,
MAC Sticky,
HTTPS/SSL,
SSH,
RADIUS,
TACACS+,
Access control list,
Login and Password Policy
Time Management
SNTP,
NTP Server/Client,
NTP Authentication
NTP Server/Client,
NTP Authentication
Protocols
IPv4/IPv6, TCP/IP, UDP, ICMP, ARP, RARP, TFTP, DNS, NTP Client, DHCP Server, DHCP Client, 802.1X, QoS, HTTPS, HTTP, Telnet, SMTP, SNMPv1/v2c/v3, RMON, Syslog
Switch Properties
MAC Table Size 16 K
Jumbo Frame Size 9.216 KB
Max. No. of VLANs 256
VLAN ID Range VID 1 to 4094
IGMP Groups 512
Priority Queues 4
Packet Buffer Size 1 MB
LED Interface
LED Indicators
PWR1, PWR2, STATE, FAULT, MSTR/HEAD, CPLR/TAIL, SYNC
Serial Interface
Console Port RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
USB Interface
USB Connector USB Type A (Reserved)
Input/Output Interface
Alarm Contact Channels
1, Relay output with current carrying capacity of 1 A @ 24 VDC
Digital Input Channels 1
Digital Inputs
+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA
Buttons
Reset button
DIP Switch Configuration
DIP Switches
Turbo Ring, Master, Coupler, Reserve
Power Parameters
Connection
2 removable 4-contact terminal block(s)
Pre-installed Power Module
-LV/-LV-T models: PWR-100–LV
-HV/-HV-T models: PWR-105-HV-I
Note
The EDS-4014 Series supports modular power supplies. The model names and power parameters are determined by the installed power module.
For example:
EDS-4014-4GS-2QGS-T + PWR-100-LV = EDS-4014-4GS-2QGS-LV-T
EDS-4014-4GS-2QGS-T + PWR-105-HV-I = EDS-4014-4GS-2QGS-HV-T
If you install a different power module, refer to the specifications of the corresponding model. For example, if you replace the power module of the EDS-4014-4GS-2QGS-LV-T with the PWR-105-HV-I, refer to the specifications of the EDS-4014-4GS-2QGS-HV-T.
Input Voltage
-LV/-LV-T models: 12/24/48 VDC, Redundant dual inputs
-HV/-HV-T models: 110/220 VDC/VAC, Single input
Operating Voltage
-LV/-LV-T models: 9.6 to 60 VDC
-HV/-HV-T models: 88 to 300 VDC, 85 to 264 VAC
Input Current
-LV/-LV-T models: 12-48 VDC, 1.50-0.40 A or 24 VDC, 0.70 A
-HV/-HV-T models: 110-220 VAC, 50-60 Hz, 0.30-0.20 A or 110-220 VDC, 0.30-0.20 A
Power Consumption (Max.)
EDS-4014-4GS-2QGS-LV(-T) models: 12.15 W
EDS-4014-4GS-2QGS-HV(-T) models: 14.44 W
Overload Current Protection Supported
Reverse Polarity Protection Supported
Physical Characteristics
IP Rating
IP40
Dimensions
55 x 140 x 122.5 mm (2.17 x 5.51 x 4.82 in)
Weight
846 g (1.87 lb)
Installation
DIN-rail mounting, Wall mounting (with optional kit)
Housing
Metal
Environmental Limits
Operating Temperature Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Standards and Certifications
Industrial Cybersecurity IEC 62443-4-1
IEC 62443-4-2
Safety
UL 61010-2-201,
EN 62368-1 (LVD)
EN 62368-1 (LVD)
EMC EN 55032/35,
EN 61000-6-2/-6-4
EN 61000-6-2/-6-4
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Maritime -LV/-LV-T models: DNV, ABS, NK, LR
Vibration
IEC 60068-2-6
Shock IEC 60068-2-27
Freefall IEC 60068-2-32
Railway EN 50121-4
Traffic Control NEMA TS2
Power Substation IEC 61850-3,
IEEE 1613 Class 1
IEEE 1613 Class 1
Hazardous Locations Class I Division 2,
ATEX,
IECEx
ATEX,
IECEx
MTBF
Time
EDS-4014-4GS-2QGS-LV/LV-T: 1,003,814 hrs
EDS-4014-4GS-2QGS-HV/HV-T: 489,769 hrs
