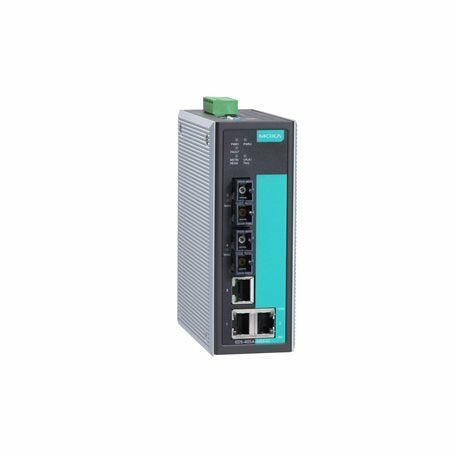

EDS-405A-PTP-T
Managed Ethernet switch with 5 10/100BaseT(X) ports, hardware-based IEEE 1588 PTPv2 protocol support, -40°C to 75°C operating temperature
EDS-405A serisi, özellikle endüstriyel uygulamalar için tasarlanmış giriş seviyesi 5 portlu yönetilebilir ethernet anahtarlardır. Turbo Ring, Turbo Chain, Port Mirroring, Ring Coupling, IGMP, IEEE 802.1Q VLAN, port tabanlı VLAN, QoS, RMON, bant genişliği yönetimi gibi çeşitli yönetim fonksiyonlarını destekler. Kullanıma hazır Turbo Ring, web tabanlı yönetim arabirimi kullanılarak veya EDS-405A serisi anahtarların üst panelinde bulunan DIP Switch kullanılarak kolayca kurulabilir.
- Turbo Ring ve Turbo Chain (recovery time < 20 ms @ 250 switch) ve ağ yedekliliği için RSTP/STP
- IGMP, QoS, IEEE 802.1Q VLAN ve bağlantı noktası tabanlı VLAN desteği
- Web tarayıcısı, CLI, Telnet/seri konsol, Windows yardımcı programı ve ABC-01 ile kolay ağ yönetimi
- PROFINET veya EtherNet/IP varsayılan olarak etkindir (PN veya EIP modelleri)
- Endüstriyel ağ yönetimi için "MXstudio" desteği
| Toplam Port Sayısı | : | 5 |
| Çalışma Sıcaklığı | : | -40/+75C |
| 10/100BaseT(X) | : | 5 |
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)
EDS-405A, 405A-EIP/PN/PTP models: 5
EDS-405A-MM-SC/MM-ST/SS-SC models: 3
All models support:
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
100BaseFX Ports (multi-mode SC connector)
EDS-405A-MM-SC models: 2
100BaseFX Ports (multi-mode ST connector)
EDS-405A-MM-ST models: 2
100BaseFX Ports (single-mode SC connector)
EDS-405A-SS-SC models: 2
Standards IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1w for Rapid Spanning Tree Protocol
Ethernet Software Features
Ethernet Software Features
Filter
802.1Q VLAN, GMRP, GVRP, IGMP v1/v2, Port-based VLAN
Industrial Protocols
Modbus TCP
EDS-405A-EIP models: EtherNet/IP
EDS-405A-EIP models: EtherNet/IP
EDS-405A-PN models: PROFINET IO Device (Slave)
Management
Back Pressure Flow Control, BOOTP, DHCP Option 66/67/82, DHCP Server/Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP
MIB
Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
Redundancy Protocols
RSTP, STP, Turbo Chain, Turbo Ring v1/v2
Time Management
All models: NTP Server/Client, SNTP
EDS-405A-PTP models: IEEE 1588v2 PTP (hardware-based)
Switch Properties
IGMP Groups 256
MAC Table Size
EDS-405A, EDS-405A-EIP/MM-SC/MM-ST/PN/SS-SC models: 2 K
EDS-405A-PTP models : 8 K
Max. No. of VLANs 64
Packet Buffer Size 1 Mbits
Priority Queues 4
VLAN ID Range VID 1 to 4094
Serial Interface
Console Port
RS-232 (TxD, RxD, GND), 10-pin RJ45 (115200, n, 8, 1)
DIP Switch Configuration
DIP Switch Configuration
Ethernet Interface
Turbo Ring, Master, Coupler, Reserve
Input/Output Interface
Input/Output Interface
Alarm Contact Channels
Relay output with current carrying capacity of 1 A @ 24 VDC
Power Parameters
Power Parameters
Input Voltage
12/24/48 VDC, Redundant dual inputs
Operating Voltage
9.6 to 60 VDC
Input Current
EDS-405A, 405A-EIP/PN/MM-SC/MM-ST/SS-SC models:
0.594 A @ 12 VDC
0.286 A @ 24 VDC
0.154 A @ 48 VDC
EDS-405A-PTP models:
0.23 A @ 24 VDC
Overload Current Protection
Supported
Reverse Polarity Protection
Supported
Connection
1 removable 6-contact terminal block(s)
Physical Characteristics
Physical Characteristics
Housing
Metal
IP Rating
IP30
Dimensions
53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Weight
EDS-405A-EIP/MM-SC/MM-ST/PN/SS-SC models: 650 g (1.44 lb)
EDS-405A-PTP models: 820 g (1.81 lb)
Installation
DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
Environmental Limits
Operating Temperature
Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
Standards and Certifications
Standards and Certifications
Safety
All models: UL 508
Non-PTP models: UL 60950-1
EMC
EN 55032/24
EMI
CISPR 32, FCC Part 15B Class A
EMS
Non-PTP models:
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8
PTP models:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8
Hazardous Locations
Non-PTP models: ATEX, Class I Division 2
Maritime
Non-PTP models: DNV
Traffic Control
Non-PTP models: NEMA TS2
Freefall
IEC 60068-2-31
Shock
IEC 60068-2-27
Vibration
IEC 60068-2-6
MTBF
MTBF
Time
EDS-405A, EDS-405A-EIP/PN models: 1,547,941 hrs
EDS-405A-MM-SC/MM-ST/SS-SC models: 1,429,327 hrs
EDS-405A-PTP models: 1,316,464 hrs
Standards
Telcordia (Bellcore), GB
