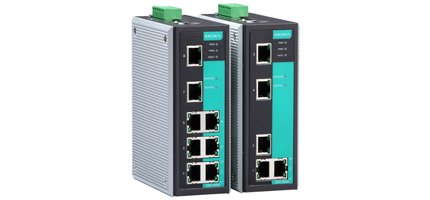

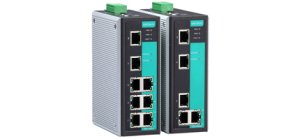

EDS-408A-EIP-T
8-port managed Ethernet switches with EtherNet/IP enabled
EDS-408A-EIP, EtherNet/IP özellikli 8 portlu Ethernet anahtarlarıdır. Gömülü Ethernet/IP özelliği ile özellikle fabrika otomasyonu uygulamalarında tercih edilir. IGMP, IEEE 802.1Q VLAN, QoS, port mirroring, SNMP, bant genişliği yönetimi ve e-posta veya röle ile uyarı gibi çeşitli kullanışlı yönetim işlevlerini de destekler.
- EtherNet/IP and IGMP snooping enabled by default
- Port mirroring, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
- EtherNet/IP EDS (Electronic Data Sheet) file, custom AOI (Add-On Instructions) file, and FactoryTalk® View faceplate included
ÜRÜN SİPARİŞ KODLARI :
Entry-level managed Ethernet switch with 5 10/100BaseT(X) ports, 0 to 60°C operating temperature, EtherNet/IP enabled |
|
Entry-level managed Ethernet switch with 5 10/100BaseT(X) ports, -40 to 75°C operating temperature, EtherNet/IP enabled |
|
Entry-level managed Ethernet switch with 8 10/100BaseT(X) ports, 0 to 60°C operating temperature, EtherNet/IP enabled |
|
Entry-level managed Ethernet switch with 8 10/100BaseT(X) ports, -40 to 75°C operating temperature, EtherNet/IP enabled |
Toplam Port Sayısı | : | 8 |
Çalışma Sıcaklığı | : | -40/+75C |
10/100BaseT(X) | : | 8 |
• Technology | |
Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3x for Flow Control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid STP IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging |
• Software Features | |
Management | IPv4/IPv6, SNMP v1/v2c/v3, LLDP, Port Mirror, RMON, DHCP Server/Client, DHCP Option 66/67/82, BootP, TFTP, SNTP, SMTP, RARP, Telnet, Syslog, SNMP inform, Flow Control, Backpressure flow control |
Filter | 802.1Q, Port-Based VLAN, GVRP, IGMP v1/v2, GMRP |
Redundancy Protocols | STP, RSTP, Turbo Ring v1/v2, Turbo Chain |
Time Management | SNTP, NTP Server/Client |
Industrial Protocols | EtherNet/IP, Modbus/TCP |
MIB | MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9 |
• Switch Properties | |
MAC Table Size | 2 K (EDS-405A-EIP), 8 K (EDS-408A-EIP) |
Packet Buffer Size | 1 Mbit |
• Interface | |
RJ45 Ports | 10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection |
Console Port | RS-232 (RJ45 connector) |
DIP Switches | Turbo Ring, Master, Coupler, Reserve |
LED Indicators | PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, 10/100M |
Alarm Contact | 1 relay output with current carrying capacity of 1 A @ 24 VDC |
• Power Requirements | |
Input Voltage | 24 VDC, redundant dual inputs |
Operating Voltage | 12 to 45 VDC |
Input Current | EDS-405A-EIP: 0.21 A @ 24 V EDS-408A-EIP: 0.22 A @ 24 V |
Overload Current Protection | Present |
Connection | 1 removable 6-contact terminal block |
Reverse Polarity Protection | Present |
• Physical Characteristics | |
Housing | Metal, IP30 protection |
Dimensions | 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in) |
Packing Size | 19.2 x 16.8 x 9.3 cm |
Weight | 650 g |
Packing Weight | EDS-405A-EIP series: 1140 g EDS-408A-EIP series: 1220 g |
Installation | DIN-rail mounting, wall mounting (with optional kit) |
• Environmental Limits | |
Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
Storage Temperature | -40 to 85°C (-40 to 185°F) |
Ambient Relative Humidity | 5 to 95% (non-condensing) |
• Standards and Certifications | |
Safety | UL 508, UL 60950-1, CSA C22.2 No. 60950-1, EN 60950-1* |
Hazardous Location | UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nC IIC |
EMC | EN 55032 Class A |
EMI | CISPR 32, FCC Part 15B Class A |
EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 |
Traffic Control | NEMA TS2 |
Rail Traffic | EN 50121-4* |
Marine | DNV, GL |
Shock | IEC 60068-2-27 |
Freefall | IEC 60068-2-32 |
Vibration | IEC 60068-2-6 |
• MTBF (mean time between failures) | |
Time | EDS-405A-EIP Series: 392,000 hrs EDS-408A-EIP Series: 363,000 hrs |
Standard | Telcordia (Bellcore), GB |
• Warranty | |
Warranty Period | 5 years |
