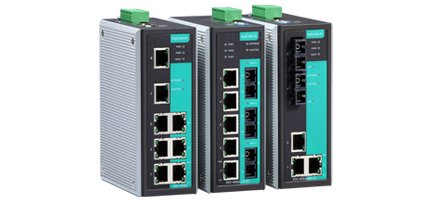

EDS-408A-MM-ST-T
8-port entry-level managed Ethernet switches
EDS-408A serisi, özellikle endüstriyel uygulamalar için tasarlanmış giriş seviyesi 8 portlu yönetilebilir ethernet anahtarlardır. Turbo Ring, Turbo Chain, Port Mirroring, Ring Coupling, IGMP, IEEE 802.1Q VLAN, port tabanlı VLAN, QoS, RMON, bant genişliği yönetimi gibi çeşitli yönetim fonksiyonlarını destekler. . Kullanıma hazır Turbo Ring, web tabanlı yönetim arabirimi kullanılarak veya EDS-408A anahtarlarının üst panelinde bulunan DIP Switch kullanılarak kolayca kurulabilir.
- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
- IGMP Snooping, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
- Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
- PROFINET or EtherNet/IP enabled by default (PN or EIP models)
- Supports MXstudio for easy, visualized industrial network management
ÜRÜN SİPARİŞ KODLARI :
|
Entry-level managed Ethernet switch with 8 10/100BaseT(X) ports, 0 to 60°C operating temperature |
|
|
Entry-level managed Ethernet switch with 8 10/100BaseT(X) ports, -40 to 75°C operating temperature |
|
|
Entry-level managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with SC connectors, 0 to 60°C operating temperature |
|
|
Entry-level managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with SC connectors, -40 to 75°C operating temperature |
|
|
Entry-level managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with ST connectors, 0 to 60°C operating temperature |
|
|
Entry-level managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with ST connectors, -40 to 75°C operating temperature |
|
|
Entry-level managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX single-mode ports with SC connectors, 0 to 60°C operating temperature |
|
|
Entry-level managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX single-mode ports with SC connectors, -40 to 75°C operating temperature |
| Toplam Port Sayısı | : | 8 |
| Çalışma Sıcaklığı | : | -40/+75C |
| 10/100BaseT(X) | : | 6 |
| 100BaseFX SFP | : | 2 |
| • Technology | |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for Flow Control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid STP IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging |
| • Software Features | |
| Management | IPv4/IPv6, SNMP v1/v2c/v3, LLDP, Port Mirror, RMON, DHCP Server/Client, DHCP Option 66/67/82, BootP, TFTP, SMTP, RARP, Telnet, Syslog, SNMP Inform, Flow Control, Back Pressure Flow Control |
| Filter | 802.1Q VLAN, Port-Based VLAN, GVRP, IGMP v1/v2, GMRP |
| Redundancy Protocols | STP, RSTP, Turbo Ring v1/v2, Turbo Chain |
| Time Management | SNTP, NTP Server/Client |
| Industrial Protocols | EtherNet/IP, Modbus/TCP |
| MIB | MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9 |
| • Switch Properties | |
| MAC Table Size | 2 K (EDS-405A), 8 K (EDS-408A) |
| Packet Buffer Size | 1 Mbit |
| • Interface | |
| RJ45 Ports | 10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection |
| Fiber Ports | 100BaseFX ports (SC/ST connector) |
| Console Port | RS-232 (RJ45 connector) |
| DIP Switches | Turbo Ring, Master, Coupler, Reserve |
| Alarm Contact | 1 relay output with current carrying capacity of 1 A @ 24 VDC |
| • Optical Fiber | |
| • Power Requirements | |
| Input Voltage | 24 VDC, redundant dual inputs |
| Operating Voltage | 12 to 45 VDC |
| Input Current | EDS-405A, EDS-405A-EIP, EDS-405A-PN: 0.20 A @ 24 V EDS-405A-MM/SS: 0.28 A @ 24 V EDS-408A, EDS-408A-EIP, EDS-408A-PN: 0.22 A @ 24 V EDS-408A-MM/SS: 0.31 A @ 24 V EDS-408A-3M/3S/2M1S/1M2S: 0.32 A @ 24 V |
| Overload Current Protection | Present |
| Connection | 1 removable 6-contact terminal block |
| Reverse Polarity Protection | Present |
| • Physical Characteristics | |
| Housing | Metal |
| IP Rating | IP30 protection |
| Dimensions | 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in) |
| Weight | EDS-405A, EDS-405A-MM, EDS-405A-SS, EDS-405A-PN, EDS-405A-EIP: 650 g (1.44 lb) EDS-408A, EDS-408A-MM, EDS-408A-SS, EDS-408A-PN, EDS-408A-EIP: 650 g (1.44 lb) EDS-408A-3M/3S/2M1S/1M2S: 890 g (1.97 lb) |
| Installation | DIN-rail mounting, wall mounting (with optional kit) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Standards and Certifications | |
| Safety | UL 508, UL 60950-1*, CSA C22.2 No. 60950-1, EN 60950-1** |
| Hazardous Location | UL/cUL Class 1 Division 2 Groups A/B/C/D*, ATEX Zone 2 Ex nA nC IIC T4 Gc***, ATEX Zone 2 Ex nA nC op is IIC T4 Gc**** |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 |
| Traffic Control | NEMA TS2 |
| Rail Traffic | EN 50121-4** |
| Marine | EDS-405A/408A, EDS-405A/408A 2 Fiber series: DNV, GL EDS-408A 3 Fiber series: DNV, GL, LR, ABS, NK |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| *EDS-405A/408A, EDS-405A/408A 2 Fiber series only**EDS-408A only ***EDS-405A, EDS-405A 2 Fiber series only ****EDS-408A, EDS-408A 2 Fiber series only Note | Please check Moxa’s website for the most up-to-date certification status. |
| • MTBF (mean time between failures) | |
| Time | EDS-405A Series: 852,421 hrs EDS-408A Series: 1,102,845 hrs |
| Standard | Telcordia (Bellcore), GB |
| • Warranty | |
| Warranty Period | 5 years |
