Datasheet

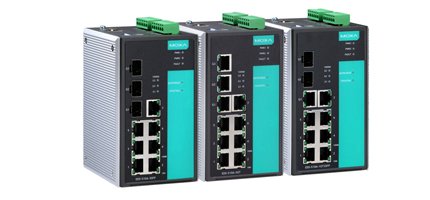

EDS-510A-3SFP-T
7+3G-port Gigabit managed Ethernet switches
EDS-510A Gigabit yönetilebilir Ethernet anahtarı, 3 Gigabit Ethernet portuna sahiptir. Bu sayede Gigabit Turbo Ring oluşturmak için idealdir. Ancak uplink kullanımı için yedek bir Gigabit port opsiyonu sağlar. Turbo Ring ve Turbo Chain (kurtarma süresi <20 ms), RSTP/STP ve MSTP özellikleri ile sistem güvenilirliğini ve ağ omurganızın kullanılabilirliğini arttırır.
- 2 Gigabit Ethernet ports for redundant ring and 1 Gigabit Ethernet port for uplink solution
- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy
- TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
- Easy network management by web browser, CLI, Telnet/ serial console, Windows utility, and ABC-01
ÜRÜN SİPARİŞ KODLARI :
|
Managed Gigabit Ethernet switch with 7 10/100BaseT(X) ports, 1 10/100/1000BaseT(X) port, and 2 SFP slots for adding SFP-1G series Gigabit Ethernet modules, 0 to 60°C operating temperature |
|
|
Managed Gigabit Ethernet switch with 7 10/100BaseT(X) ports, 1 10/100/1000BaseT(X) port, and 2 SFP slots for adding SFP-1G series Gigabit Ethernet modules, -40 to 75°C operating temperature |
|
|
Managed Gigabit Ethernet switch with 7 10/100BaseT(X) ports, and 3 10/100/1000BaseT(X) ports, 0 to 60°C operating temperature |
|
|
Managed Gigabit Ethernet switch with 7 10/100BaseT(X) ports, and 3 10/100/1000BaseT(X) ports, -40 to 75°C operating temperature |
|
|
Managed Gigabit Ethernet switch with 7 10/100BaseT(X) ports, and 3 SFP slots for adding SFP-1G series Gigabit Ethernet modules, 0 to 60°C operating temperature |
|
|
Managed Gigabit Ethernet switch with 7 10/100BaseT(X) ports, and 3 SFP slots for adding SFP-1G series Gigabit Ethernet modules, -40 to 75°C operating temperature |
| Toplam Port Sayısı | : | 10 |
| Çalışma Sıcaklığı | : | -40/+75C |
| 10/100BaseT(X) | : | 7 |
| 1000Base SFP | : | 3 |
| • Technology | |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3x for Flow Control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid STP IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.1X for Authentication IEEE 802.3ad for Port Trunk with LACP |
| • Software Features | |
| Management | IPv4/IPv6, SNMP v1/v2c/v3, LLDP, Port Mirror, DDM, RMON, DHCP Server/Client, DHCP Option 66/67/82, BootP, TFTP, SNTP, SMTP, RARP, Telnet, Syslog, SNMP inform, Flow Control, Backpressure flow control |
| Filter | 802.1Q, Port-Based VLAN, GVRP, IGMP v1/v2, GMRP |
| Redundancy Protocols | STP, RSTP, MSTP, Turbo Ring v1/v2, Turbo Chain, Link Aggregation |
| Time Management | SNTP, NTP Server/Client, IEEE 1588 PTP v1/v2 (SW-based) |
| Industrial Protocols | EtherNet/IP, Modbus/TCP |
| MIB | MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9 |
| • Switch Properties | |
| Priority Queues | 4 |
| Max. Number of Available VLANs | 64 |
| VLAN ID Range | VID 1 to 4094 |
| IGMP Groups | 256 |
| MAC Table Size | 8 K |
| Packet Buffer Size | 1 Mbit |
| • Interface | |
| RJ45 Ports | 10/100BaseT(X) or 10/100/1000BaseT(X) auto negotiation speed |
| Fiber Ports | 1000BaseSFP slot |
| Console Port | RS-232 (RJ45 connector) |
| DIP Switches | Turbo Ring, Master, Coupler, Reserve |
| LED Indicators | PWR1, PWR2, FAULT, 10/100M (TP port), 1000M (Gigabit port), MSTR/HEAD, CPLR/TAIL |
| Alarm Contact | 2 relay outputs with current carrying capacity of 1 A @ 24 VDC |
| Digital Inputs | 2 inputs with the same ground, but electrically isolated from the electronics. • +13 to +30V for state '1” • -30 to +3V for state '0” • Max. input current: 8 mA |
| • Power Requirements | |
| Input Voltage | 24 VDC, redundant dual inputs |
| Operating Voltage | 12 to 45 VDC |
| Input Current | EDS-510A-3GT: 0.55 A @ 24 V EDS-510A-1GT2SFP: 0.38 A @ 24 V EDS-510A-3SFP: 0.39 A @ 24 V |
| Overload Current Protection | Present |
| Connection | 2 removable 6-contact terminal blocks |
| Reverse Polarity Protection | Present |
| • Physical Characteristics | |
| Housing | Metal, IP30 protection |
| Dimensions | 80.2 x 135 x 105 mm (3.16 x 5.31 x 4.13 in) |
| Weight | 1170 g |
| Installation | DIN-Rail mounting, wall mounting (with optional kit) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Standards and Certifications | |
| Safety | UL 508, UL 60950-1, CSA C22.2 No. 60950-1, EN 60950-1 |
| Hazardous Location | UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nC IIC |
| EMC | EN 55032 Class A |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 |
| Traffic Control | NEMA TS2 |
| Marine | DNV, GL |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| • MTBF (mean time between failures) | |
| Time | 204,000 hrs |
| Standard | MIL-HDBK-217J, GB 25°C |
| • Warranty | |
| Warranty Period | 5 years |
