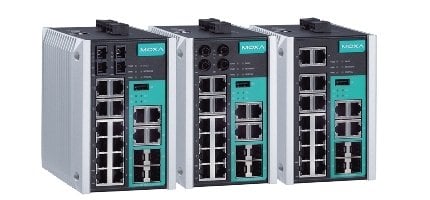

EDS-518E-MM-ST-4GTXSFP

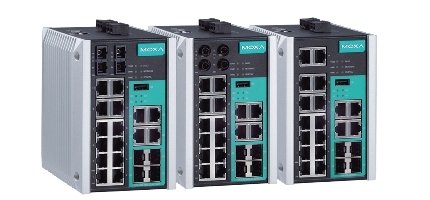

14+4G-port Gigabit managed Ethernet switches
- 4 Gigabit plus 14 Fast Ethernet ports for copper and fiber
- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy
- RADIUS, TACACS+, MAB Authentication, SNMPv3, IEEE 802.1x, MAC ACL, HTTPS, SSH, and MAC-address sticky to enhance network security
- Security features based on IEC-62443
- EtherNet/IP, PROFINET, and Modbus/TCP protocols supported for device management and monitoring
- Fiber Check™—comprehensive fiber status monitoring and warning on MST/MSC/SSC/SFP fiber ports
- Supports MXstudio for easy, visualized industrial network management
- V-ON™ ensures millisecond-level multicast data and video network recovery
|
Managed Gigabit Ethernet switch with 14 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, -10 to 60°C operating temperature |
|
|
Managed Gigabit Ethernet switch with 14 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, -40 to 75°C operating temperature |
|
|
Managed Gigabit Ethernet switch with 12 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, 2 100BaseFX (Multi-mode, SC Connector), -10 to 60°C operating temperature |
|
|
Managed Gigabit Ethernet switch with 12 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, 2 100BaseFX (Multi-mode, SC Connector), -40 to 75°C operating temperature |
|
|
Managed Gigabit Ethernet switch with 12 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, 2 100BaseFX (Multi-mode, ST Connector), -10 to 60°C operating temperature |
|
|
Managed Gigabit Ethernet switch with 12 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, 2 100BaseFX (Multi-mode, ST Connector), -40 to 75°C operating temperature |
|
|
Managed Gigabit Ethernet switch with 12 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, 2 100BaseFX (Single-mode, SC Connector), -10 to 60°C operating temperature |
|
|
Managed Gigabit Ethernet switch with 12 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, 2 100BaseFX (Single-mode, SC Connector), -40 to 75°C operating temperature |
| Toplam Port Sayısı | : | 18 |
| Çalışma Sıcaklığı | : | -10/+60C |
| 10/100BaseT(X) | : | 12 |
| 100BaseFX SFP | : | 2 |
| Combo Port | : | 4 |
| • Technology | |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3x for Flow Control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid STP IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.1x for Authentication IEEE 802.3ad for Port Trunk with LACP |
| • Software Features | |
| Management | IPv4/IPv6, SNMP v1/v2c/v3, LLDP, Port Mirror, DDM, Fiber Check, RMON, DHCP Server/Client, DHCP Option 66/67/82, BootP, TFTP, SMTP, RARP, Telnet, Syslog, SNMP Inform, Flow Control, Back Pressure Flow Control |
| Filter | 802.1Q VLAN, Port-Based VLAN, GVRP, IGMP v1/v2/v3, GMRP |
| Redundancy Protocols | STP, RSTP, MSTP, Turbo Ring v1/v2, Turbo Chain, Link Aggregation |
| Security | RADIUS, TACACS+, MAB Authentication, HTTPS, SSL, SSH, Broadcast Storm Protection, Port Lock, MAC ACL, MAC Sticky, NTP Authentication, SMTP with TLS |
| Time Management | SNTP, NTP Server/Client, IEEE 1588v2 PTP (software-based) |
| Industrial Protocols | EtherNet/IP, Modbus/TCP, PROFINET IO |
| MIB | MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9 |
| • Switch Properties | |
| Priority Queues | 4 |
| Max. Number of Available VLANs | 64 |
| VLAN ID Range | VID 1 to 4094 |
| IGMP Groups | 256 |
| MAC Table Size | 16 K |
| Packet Buffer Size | 1 Mbit |
| • Interface | |
| RJ45 Ports | 10/100BaseT(X) or 10/100/1000BaseT(X) auto negotiation speed |
| Fiber Ports | 100BaseFX (SC/ST connector) and 100/1000BaseSFP slot |
| Console Port | USB-serial console (Type B connector) |
| Storage Port | USB storage port (Type A connector) |
| LED Indicators | PWR1, PWR2, STATE, FAULT, 10/100M (TP port), 100M (fiber port), 100/1000M (Gigabit port), MSTR/HEAD, CPLR/TAIL |
| Alarm Contact | 1 relay output with current carrying capacity of 1 A @ 24 VDC |
| Digital Inputs | 1 input with the same ground, but electrically isolated from the electronics.• +13 to +30 V for state '1” • -30 to +3 V for state '0” • Max. input current: 8 mA |
| Button | Reset button |
| • Optical Fiber | |
| Table | |
| • Power Requirements | |
| Input Voltage | 12/24/48/-48 VDC, redundant dual inputs |
| Operating Voltage | 9.6 to 60 VDC |
| Input Current | EDS-518E-4GTXSFP: 0.37 A @ 24 V EDS-518E-MM-ST/SC-4GTXSFP: 0.41 A @ 24 V EDS-518E-SS-SC-4GTXSFP: 0.41 A @ 24 V |
| Overload Current Protection | Present |
| Connection | 2 removable 4-contact terminal blocks |
| Reverse Polarity Protection | Present |
| • Physical Characteristics | |
| Housing | Metal |
| IP Rating | IP30 protection |
| Dimensions | 94 x 135 x 137 mm (3.7 x 5.31 x 5.39 in) |
| Weight | 1,518 g (3.35 lb) |
| Installation | DIN-rail mounting, wall mounting (with optional kit) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: -10 to 60°C (14 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Standards and Certifications | |
| Note | Please check Moxa’s website for the most up-to-date certification status. |
| Safety | UL 508 |
| Hazardous Location | UL/cUL Class 1 Division 2 Groups A/B/C/D,ATEX Zone 2 Ex nA nC IIC |
| EMC | EN 61000-6-2/6-4 |
| EMI | CISPR 22, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV IEC 61000-4-6 CS: Signal: 10 V IEC 61000-4-8 |
| Electrical Substations | IEC 61850-3, IEEE 1613 |
| Traffic Control | NEMA TS2 |
| Rail Traffic | EN 50121-4 |
| Marine | DNV, ABS, LR, GL, NKK |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| • MTBF (mean time between failures) | |
| Time | 723,953 hrs |
| Standard | Telcordia (Bellcore), GB |
| • Warranty | |
| Warranty Period | 5 years |
