EDS-518E-SS-SC-4GTXSFP
MOXA

EDS-518E-SS-SC-4GTXSFP

Stokta 0 Adet Var
2.251,00 EUR + KDV
Kategori
Yönetilebilir Endüstriyel Anahtarlar , Tüm Ürünler
Datasheet
  Döküman indir
Ürün Bilgisi

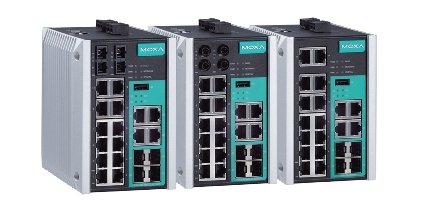

EDS-518E-SS-SC-4GTXSFP

14+4G-port Gigabit managed Ethernet switches



EDS-518E serisi, Gigabit fiber optik haberleşme için tümleşik RJ45 veya SFP yuvalarına sahip 4 adet Combo Gigabit port içeren, 18-port yönetilebilir Ethernet anahtarıdır. Çeşitli bakır ve fiber port kombinasyonlarına sahip 14 Fast Ethernet portu, ağınızı ve uygulamanızı tasarlarken daha fazla esneklik sağlar. Ethernet yedekli Turbo Ring, Turbo Chain, RSTP/STP ve MSTP, ağ omurganızın sistem güvenilirliğini ve kullanılabilirliğini artırır.
EDS-518E serisi özellikle deniz, demiryolu, petrol ve doğal gaz, fabrika otomasyonu ve proses otomasyonu gibi yüksek koruma seviyesi gereksinimlerine sahip zorlu endüstriyel ortamlar için tasarlanmıştır.
  • 4 Gigabit plus 14 Fast Ethernet ports for copper and fiber
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy
  • RADIUS, TACACS+, MAB Authentication, SNMPv3, IEEE 802.1x, MAC ACL, HTTPS, SSH, and MAC-address sticky to enhance network security
  • Security features based on IEC-62443
  • EtherNet/IP, PROFINET, and Modbus/TCP protocols supported for device management and monitoring
  • Fiber Check™—comprehensive fiber status monitoring and warning on MST/MSC/SSC/SFP fiber ports
  • Supports MXstudio for easy, visualized industrial network management
  • V-ON™ ensures millisecond-level multicast data and video network recovery

ÜRÜN SİPARİŞ KODLARI :


EDS-518E-4GTXSFP

Managed Gigabit Ethernet switch with 14 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, -10 to 60°C operating temperature

EDS-518E-4GTXSFP-T

Managed Gigabit Ethernet switch with 14 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, -40 to 75°C operating temperature

EDS-518E-MM-SC-4GTXSFP

Managed Gigabit Ethernet switch with 12 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, 2 100BaseFX (Multi-mode, SC Connector), -10 to 60°C operating temperature

EDS-518E-MM-SC-4GTXSFP-T

Managed Gigabit Ethernet switch with 12 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, 2 100BaseFX (Multi-mode, SC Connector), -40 to 75°C operating temperature

EDS-518E-MM-ST-4GTXSFP

Managed Gigabit Ethernet switch with 12 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, 2 100BaseFX (Multi-mode, ST Connector), -10 to 60°C operating temperature

EDS-518E-MM-ST-4GTXSFP-T

Managed Gigabit Ethernet switch with 12 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, 2 100BaseFX (Multi-mode, ST Connector), -40 to 75°C operating temperature

EDS-518E-SS-SC-4GTXSFP

Managed Gigabit Ethernet switch with 12 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, 2 100BaseFX (Single-mode, SC Connector), -10 to 60°C operating temperature

EDS-518E-SS-SC-4GTXSFP-T

Managed Gigabit Ethernet switch with 12 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, 2 100BaseFX (Single-mode, SC Connector), -40 to 75°C operating temperature

Toplam Port Sayısı : 18
Çalışma Sıcaklığı : -10/+60C
10/100BaseT(X) : 12
100BaseFX SFP : 2
Combo Port : 4
• Technology
Standards IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.3x for Flow Control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid STP
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1x for Authentication
IEEE 802.3ad for Port Trunk with LACP
• Software Features
Management IPv4/IPv6, SNMP v1/v2c/v3, LLDP, Port Mirror, DDM, Fiber Check, RMON, DHCP Server/Client, DHCP Option 66/67/82, BootP, TFTP, SMTP, RARP, Telnet, Syslog, SNMP Inform, Flow Control, Back Pressure Flow Control
Filter 802.1Q VLAN, Port-Based VLAN, GVRP, IGMP v1/v2/v3, GMRP
Redundancy Protocols STP, RSTP, MSTP, Turbo Ring v1/v2, Turbo Chain, Link Aggregation
Security RADIUS, TACACS+, MAB Authentication, HTTPS, SSL, SSH, Broadcast Storm Protection, Port Lock, MAC ACL, MAC Sticky, NTP Authentication, SMTP with TLS
Time Management SNTP, NTP Server/Client, IEEE 1588v2 PTP (software-based)
Industrial Protocols EtherNet/IP, Modbus/TCP, PROFINET IO
MIB MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
• Switch Properties
Priority Queues 4
Max. Number of Available VLANs 64
VLAN ID Range VID 1 to 4094
IGMP Groups 256
MAC Table Size 16 K
Packet Buffer Size 1 Mbit
• Interface
RJ45 Ports 10/100BaseT(X) or 10/100/1000BaseT(X) auto negotiation speed
Fiber Ports 100BaseFX (SC/ST connector) and 100/1000BaseSFP slot
Console Port USB-serial console (Type B connector)
Storage Port USB storage port (Type A connector)
LED Indicators PWR1, PWR2, STATE, FAULT, 10/100M (TP port), 100M (fiber port), 100/1000M (Gigabit port), MSTR/HEAD, CPLR/TAIL
Alarm Contact 1 relay output with current carrying capacity of 1 A @ 24 VDC
Digital Inputs 1 input with the same ground, but electrically isolated from the electronics.• +13 to +30 V for state '1”
• -30 to +3 V for state '0”
• Max. input current: 8 mA
Button Reset button
• Optical Fiber
• Power Requirements
Input Voltage 12/24/48/-48 VDC, redundant dual inputs
Operating Voltage 9.6 to 60 VDC
Input Current EDS-518E-4GTXSFP: 0.37 A @ 24 V
EDS-518E-MM-ST/SC-4GTXSFP: 0.41 A @ 24 V
EDS-518E-SS-SC-4GTXSFP: 0.41 A @ 24 V
Overload Current Protection Present
Connection 2 removable 4-contact terminal blocks
Reverse Polarity Protection Present
• Physical Characteristics
Housing Metal
IP Rating IP30 protection
Dimensions 94 x 135 x 137 mm (3.7 x 5.31 x 5.39 in)
Weight 1,518 g (3.35 lb)
Installation DIN-rail mounting, wall mounting (with optional kit)
• Environmental Limits
Operating Temperature Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
• Standards and Certifications
Note Please check Moxa’s website for the most up-to-date certification status.
Safety UL 508
Hazardous Location UL/cUL Class 1 Division 2 Groups A/B/C/D,ATEX Zone 2 Ex nA nC IIC
EMC EN 61000-6-2/6-4
EMI CISPR 22, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
IEC 61000-4-6 CS: Signal: 10 V
IEC 61000-4-8
Electrical Substations IEC 61850-3, IEEE 1613
Traffic Control NEMA TS2
Rail Traffic EN 50121-4
Marine DNV, ABS, LR, GL, NKK
Shock IEC 60068-2-27
Freefall IEC 60068-2-32
Vibration IEC 60068-2-6
• MTBF (mean time between failures)
Time 723,953 hrs
Standard Telcordia (Bellcore), GB
• Warranty
Warranty Period 5 years
