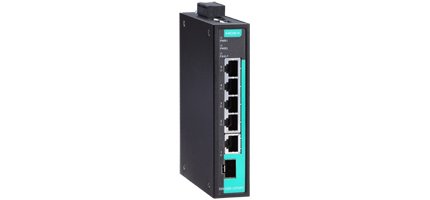

EDS-G205-1GTXSFP
5G-port full Gigabit unmanaged Ethernet switches
EDS-G205-1GTXSFP anahtarları sırasıyla 5 Gigabit Ethernet portu ve 1 adet fiber optik port içerir. EDS-G205-1GTXSFP, endüstriyel Gigabit Ethernet bağlantılarınız için ekonomik bir çözüm sunar ve dahili röle uyarı fonksiyonu, güç arızaları veya bağlantı kopuklukları meydana geldiğinde ağ yöneticilerini uyarır. Serinin ürünleri endüstriyel otomasyon uygulamalarına yönelik olarak % 100 yanma testinden geçmektedir.
- Fiber optic options for extending distance and electrical noise immunity
- Redundant dual 12/24/48 VDC power inputs
- Supports jumbo frame transmission up to 10 KB
- Relay output warning for power failure and port break alarm
- Broadcast storm protection
- -40 to 75°C operating temperature range (T models)
ÜRÜN SİPARİŞ KODLARI :
|
Unmanaged full Gigabit Ethernet switch with 4 10/100/1000BaseT(X) ports and 1 combo 10/100/1000BaseT(X) or 100/1000BaseSFP port, -10 to 60°C operating temperature |
|
|
Unmanaged full Gigabit Ethernet switch with 4 10/100/1000BaseT(X) ports and 1 combo 10/100/1000BaseT(X) or 100/1000BaseSFP port, -40 to 75°C operating temperature |
| Toplam Port Sayısı | : | 5 |
| Çalışma Sıcaklığı | : | -10/+60C |
| 10/100/1000BaseT(X) | : | 4 |
| Combo Port | : | 1 |
| • Technology | |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3x for Flow Control IEEE 802.3az for Energy-Efficient Ethernet |
| Processing Type | Store and Forward |
| • Switch Properties | |
| MAC Table Size | 8 K |
| Packet Buffer Size | 1024 Kbit (EDS-G205-1GTXSFP Series), 4 Mbit (EDS-G308 Series) |
| Jumbo Frame Size | 10 KB (EDS-G205-1GTXSFP Series), 9.6 KB (EDS-G308 Series) |
| • Interface | |
| RJ45 Ports | 10/100/1000BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection |
| Fiber Ports | 100/1000BaseSFP slot (SFP model) |
| DIP Switches | One for port break alarm, one for Enable/Disable broadcast storm protection, jumbo frame, IEEE 802.3az energy saving and 100/1000 SFP speed switching |
| Alarm Contact | 1 relay output with current carrying capacity of 1 A @ 24 VDC |
| • Power Requirements | |
| Input Voltage | 12/24/48 VDC, redundant dual inputs |
| Operating Voltage | 9.6 to 60 VDC |
| Input Current | EDS-G205-1GTXSFP: 0.14 A @ 24 V EDS-G308: 0.29 A @ 24 V EDS-G308-2SFP: 0.31 A @ 24 V |
| Connection | 1 removable 6-contact terminal block |
| Reverse Polarity Protection | Present |
| • Physical Characteristics | |
| Housing | Metal |
| IP Rating | IP30 protection |
| Dimensions | EDS-G205-1GTXSFP Series: 29 x 135 x 105 mm (1.14 x 5.31 x 4.13 in) EDS-G308 Series: 53 x 135 x 105 mm (2.08 x 5.31 x 4.13 in) |
| Weight | EDS-G205-1GTXSFP Series: 290 g (0.64 lb) EDS-G308 Series: 880 g (1.94 lb) |
| Installation | DIN-rail mounting, wall mounting (with optional kit) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: -10 to 60°C (14 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Standards and Certifications | |
| Note | Please check Moxa’s website for the most up-to-date certification status. |
| Safety | UL 508, EN 60950-1 (LVD) |
| Hazardous Location | UL/cUL Class 1 Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nA nC IIC T4 Gc |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 |
| Rail Traffic | EN 50121-4 |
| Marine | DNV, ABS, LR, GL, NKK |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| • MTBF (mean time between failures) | |
| Time | EDS-G205-1GTXSFP Series: 2,823,446 hrs EDS-G308 Series: 2,424,649 hrs |
| Standard | Telcordia (Bellcore), GB |
| • Warranty | |
| Warranty Period | 5 years |
