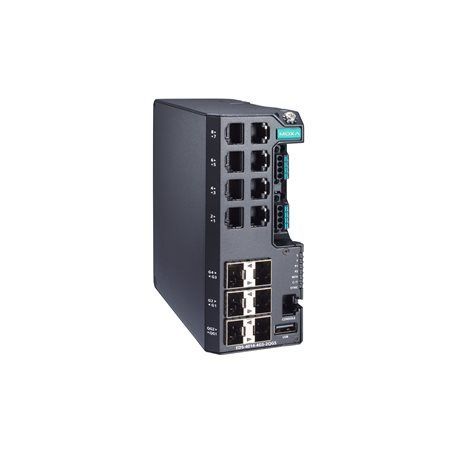

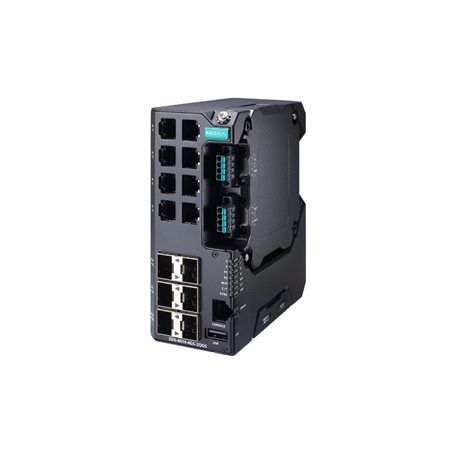

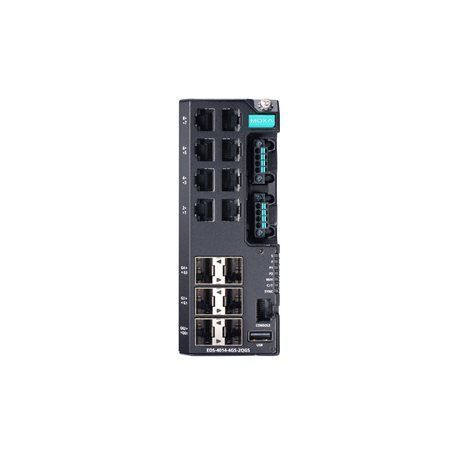

EDS-G4014-6QGS-HV
Managed Full Gigabit Ethernet switch with 8 10/100/1000BaseT(X) ports, 6 1000/2500BaseSFP ports, single power input 110/220 VAC/VDC, -10 to 60C operating temperature
EDS-G4014 Serisi, 8 Gigabit Ethernet Port ve 6adet 2.5Gbps fiber optik uplink port seçeneğine sahip, toplam 14 portlu yönetilebilir Full-Gigabit Ethernet switch serisidir.
Turbo Ring, Turbo Chain ve RSTP/STP gibi yedek ethernet teknolojileri, sisteminizin güvenilirliğini ve ağ omurganızın kullanılabilirliğini artırır. EDS-G4014Serisi, tümü ölçeklenebilir bir omurgadan yararlanabilen video ve süreç izleme, ITS ve DCS sistemleri gibi zorlu uygulamalar için özel olarak tasarlanmıştır.
EDS-G4014 Serisi, ürün güvenliğini kapsayan "IEC 62443-4-2" ve "IEC 62443-4-1" Endüstriyel Siber Güvenlik sertifikalarıyla uyumludur ve müşterilerimizin güvenli endüstriyel ağlarının uyumluluk gereksinimlerini karşılamalarına yardımcı olur.
- "IEC 62443-4-1" ve "IEC 62443-4-2" endüstriyel siber güvenlik standartlarıyla uyumlu
- 2.5Gbps destekli SFP yuvaları
- Turbo Ring ve Turbo Chain (recovery time < 50 ms @ 250 switch) ve ağ yedekliliği için RSTP/STP
- Çok çeşitli güç girişi seçenekleri
- Kompakt ve esnek gövde tasarımı
- Endüstriyel ağ yönetimi için "MXstudio" desteği
| Toplam Port Sayısı | : | 14 |
| Çalışma Sıcaklığı | : | -10/+60C |
| 10/100/1000BaseT(X) | : | 8 |
| 1000/2500BaseSFP | : | 6 |
Ethernet Interface
10/100/1000BaseT(X) Ports (RJ45 connector) 8
Auto MDI/MDI-X connection
Auto negotiation speed
Full/Half duplex mode
100/1000/2500BaseSFP Ports 4
1000/2500BaseSFP Ports 2
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.3bz for 2.5GBaseX
IEEE 802.3x for flow control
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.1Q for VLAN Tagging
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1X for authentication
Ethernet Software Features
Filter
GMRP, GVRP, GARP, 802.1Q VLAN, IGMP Snooping v1/v2/v3, IGMP Querier
Management
IPv4/IPv6, Flow control, Back Pressure Flow Control, DHCP Server/Client, ARP, RARP, LLDP, Port Mirror, Linkup Delay, SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB
MIB
P-BRIDGE MIB,
Q-BRIDGE MIB,
IEEE8021-SPANNING-TREE-MIB,
IEEE8021-PAE-MIB,
IEEE8023-LAG-MIB,
LLDP-EXT-DOT1-MIB,
LLDP-EXT-DOT3-MIB,
SNMPv2-MIB, RMON MIB Groups 1, 2, 3, 9
Q-BRIDGE MIB,
IEEE8021-SPANNING-TREE-MIB,
IEEE8021-PAE-MIB,
IEEE8023-LAG-MIB,
LLDP-EXT-DOT1-MIB,
LLDP-EXT-DOT3-MIB,
SNMPv2-MIB, RMON MIB Groups 1, 2, 3, 9
Redundancy Protocols
STP,
RSTP,
Turbo Ring v2,
Turbo Chain,
Ring Coupling,
Dual-Homing,
Link Aggregation,
MSTP
RSTP,
Turbo Ring v2,
Turbo Chain,
Ring Coupling,
Dual-Homing,
Link Aggregation,
MSTP
Security
Broadcast storm protection,
Rate Limit,
Trust access control,
Static Port Lock,
MAC Sticky,
HTTPS/SSL,
SSH,
RADIUS,
TACACS+,
Login and Password Policy,
Access control list
Rate Limit,
Trust access control,
Static Port Lock,
MAC Sticky,
HTTPS/SSL,
SSH,
RADIUS,
TACACS+,
Login and Password Policy,
Access control list
Time Management
SNTP,
NTP Server/Client,
NTP Authentication
NTP Server/Client,
NTP Authentication
Protocols
IPv4/IPv6, TCP/IP, UDP, ICMP, ARP, RARP, TFTP, DNS, NTP Client, DHCP Server, DHCP Client, 802.1X, QoS, HTTPS, HTTP, Telnet, SMTP, SNMPv1/v2c/v3, RMON, Syslog
Switch Properties
MAC Table Size 16 K
Jumbo Frame Size 9.216 KB
Max. No. of VLANs 256
VLAN ID Range VID 1 to 4094
IGMP Groups 512
Priority Queues 4
Packet Buffer Size 1 MB
LED Interface
LED Indicators
PWR1, PWR2, STATE, FAULT, MSTR/HEAD, CPLR/TAIL, SYNC
Serial Interface
Console Port RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
USB Interface
USB Connector USB Type A (Reserved)
USB Connector USB Type A (Reserved)
Input/Output Interface
Alarm Contact Channels
1, Relay output with current carrying capacity of 1 A @ 24 VDC
Digital Input Channels 1
Digital Inputs
+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA
Buttons
Reset button
DIP Switch Configuration
DIP Switches
Turbo Ring, Master, Coupler, Reserve
Turbo Ring, Master, Coupler, Reserve
Power Parameters
Connection
2 removable 4-contact terminal block(s)
Pre-installed Power Module
-LV/-LV-T models: PWR-100-LV
-HV/-HV-T models: PWR-105-HV-I
Note
The EDS-G4014 Series supports modular power supplies. The model names and power parameters are determined by the installed power module.
For example:
EDS-G4014-6QGS-T + PWR-100-LV = EDS-G4014-6QGS-LV-T
EDS-G4014-6QGS-T + PWR-105-HV-I = EDS-G4014-6QGS-HV-T
If you install a different power module, refer to the specifications of the corresponding model. For example, if you replace the power module of the EDS-G4014-6QGS-LV-T with the PWR-105-HV-I, refer to the specifications of the EDS-G4014-6QGS-HV-T.
Input Voltage
-LV/-LV-T models: 12/24/48 VDC, Redundant dual inputs
-HV/-HV-T models: 110/220 VDC/VAC, Single input
Operating Voltage
-LV/-LV-T models: 9.6 to 60 VDC
-HV/-HV-T models: 88 to 300 VDC, 85 to 264 VAC
Input Current
-LV/-LV-T models: 12-48 VDC, 1.50-0.40 A or 24 VDC, 0.70 A
-HV/-HV-T models: 110-220 VAC, 50-60 Hz, 0.30-0.20 A or 110-220 VDC, 0.30-0.20 A
Power Consumption (Max.)
EDS-G4014-6QGS-LV(-T) models: 14.91 W
EDS-G4014-6QGS-HV(-T) models: 17.32 W
Overload Current Protection Supported
Reverse Polarity Protection Supported
Physical Characteristics
IP Rating
IP40
Dimensions
55 x 140 x 122.5 mm (2.17 x 5.51 x 4.82 in)
Weight
846 g (1.87 lb)
Installation
DIN-rail mounting, Wall mounting (with optional kit)
Housing
Metal
Environmental Limits
Operating Temperature
Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Standards and Certifications
Industrial Cybersecurity IEC 62443-4-1
IEC 62443-4-2
Safety UL 61010-2-201,
EN 62368-1 (LVD)
EN 62368-1 (LVD)
EMC EN 55032/35,
EN 61000-6-2/-6-4
EN 61000-6-2/-6-4
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Maritime -LV/-LV-T models: DNV, ABS, NK, LR
Vibration IEC 60068-2-6
Shock IEC 60068-2-27
Freefall IEC 60068-2-32
Railway EN 50121-4
Traffic Control NEMA TS2
Power Substation IEC 61850-3, IEEE 1613 Class 1
Hazardous Locations Class I Division 2,
ATEX,
IECEx
ATEX,
IECEx
MTBF
Time
EDS-G4014-6QGS-LV/LV-T models: 994,797 hrs
EDS-G4014-6QGS-HV/HV-T models: 487,613 hrs
