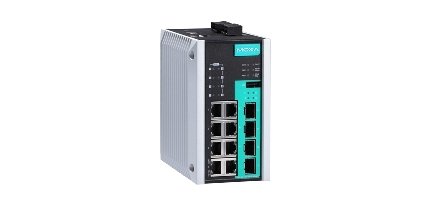

EDS-G512E-8PoE-4GSFP-T
12G-port full gigabit PoE+ managed Ethernet switches
EDS-G512E-8PoE Serisi, ful gigabit yönetilebilir PoE serisidir. 8x10/100/1000BaseT(X), 802.3af (PoE) ve 802.3at (PoE+) uyumlu ethernet portları ve 4 adede kadar fiber optic port içerir.
Standart modda PoE+ port başına 30 watt'a kadar güç sağlayabilir. EDS-G512E-8PoE Ethernet anahtarlarının SFP fiber portları, yüksek EMI özelliği ile cihazdan 120km uzaklığa kadar veri iletebilir. Ethernet anahtarları STP/RSTP, Turbo Ring, Turbo Chain, PoE güç yönetimi, PoE cihazı otomatik kontrol, PoE güç programlama, IGMP, VLAN, QoS, RMON, ve port mirroring gibi çeşitli yönetim özelliklerini destekler.
- 8 10/100/1000BaseT(X) ports and 4 100/1000BaseSFP ports
- 8 IEEE 802.3af and IEEE 802.3at PoE+ standard ports
- Intelligent PoE power management functions
- Operate with 240 watts full PoE+ loading at -40 to 75°C
- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy
- Security features based on IEC-62443
- Supports MXstudio for easy, visualized industrial network management
- V-ON™ ensures millisecond-level multicast data and video network recovery
ÜRÜN SİPARİŞ KODLARI :
|
12-port full Gigabit managed Ethernet switch, 8 10/100/1000BaseT PoE/PoE+ ports, 4 100/1000BaseSFP slots, -10 to 60°C operating temperature |
|
|
EDS-G512E-8PoE-4GSFP-T |
12-port full Gigabit managed Ethernet switch, 8 10/100/1000BaseT PoE/PoE+ ports, 4 100/1000BaseSFP slots, -40 to 75°C operating temperature |
| Toplam Port Sayısı | : | 12 |
| Çalışma Sıcaklığı | : | -40/+75C |
| 10/100/1000BaseT(X) | : | 8 |
| PoE Port | : | 8 |
| 100/1000Base SFP | : | 4 |
| • Technology | |
| Standards | IEEE 802.3af/at for Power-over-Ethernet IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3x for Flow Control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid STP IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.1X for Authentication IEEE 802.3ad for Port Trunk with LACP |
| • Software Features | |
| Management | IPv4/IPv6, SNMP v1/v2c/v3, LLDP, Port Mirror, DDM, RMON, DHCP Server/Client, DHCP Option 66/67/82, BootP, TFTP, SMTP, RARP, Telnet, Syslog, SNMP Inform, Flow Control, Back Pressure Flow Control |
| Filter | 802.1Q VLAN, Port-Based VLAN, GVRP, IGMP v1/v2/v3, GMRP |
| Redundancy Protocols | STP, RSTP, MSTP, Turbo Ring v1/v2, Turbo Chain, Link Aggregation |
| Security | RADIUS, TACACS+, SSL, SSH, Broadcast Storm Protection, Port Lock |
| Time Management | SNTP, NTP Server/Client, IEEE 1588v2 PTP (software-based) |
| Industrial Protocols | EtherNet/IP, Modbus/TCP, PROFINET IO |
| MIB | MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9 |
| • Switch Properties | |
| Priority Queues | 4 |
| Max. Number of VLANs | 256 |
| VLAN ID Range | VID 1 to 4094 |
| IGMP Groups | 2048 |
| MAC Table Size | 8 K |
| Packet Buffer Size | 1 Mbit |
| Jumbo Frame Size | 9.6 KB |
| • Interface | |
| RJ45 Ports | 10/100/1000BaseT(X) auto negotiation speed |
| Fiber Ports | 100/1000BaseSFP slot |
| Console Port | USB-serial console (Type B connector) |
| Storage Port | USB storage (Type A connector for ABC-02-USB) |
| PoE Pinout | V+, V+, V-, V-, for pin 1, 2, 3, 6 (Endspan, MDI, Mode A) |
| DIP Switches | Turbo Ring, Master, Coupler, Reserve |
| Alarm Contact | 1 relay output with current carrying capacity of 1 A @ 24 VDC |
| Digital Inputs | 1 input with the same ground, but electrically isolated from the electronics.• +13 to +30 V for state '1” • -30 to +3 V for state '0” • Max. input current: 8 mA |
| Button | Reset button |
| • Power Requirements | |
| Input Voltage | 48 VDC, redundant dual inputs |
| Operating Voltage | 44 to 57 VDC (> 50 VDC for PoE+ output recommended) |
| Input Current | 5.42 A @ 48 VDC |
| Overload Current Protection | Present |
| Connection | 2 removable 4-contact terminal blocks |
| Reverse Polarity Protection | Present |
| Note | When selecting power supply, check the PD power consumption. |
| Power Consumption | Max. 20.16 W full loading without PDs' consumption |
| Power Budget | Max. 240 W for total PD consumption Max. 36 W for each PoE port |
| • Physical Characteristics | |
| Housing | Metal |
| IP Rating | IP30 protection |
| Dimensions | 79.2 x 135 x 137 mm (3.1 x 5.3 x 5.4 in) |
| Weight | 1540 g (3.40 lb) |
| Installation | DIN-rail mounting, wall mounting (with optional kit) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: -10 to 60°C (14 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Standards and Certifications | |
| Note | Please check Moxa’s website for the most up-to-date certification status. |
| Safety | UL 508, EN60950-1 (LVD) |
| EMC | EN 61000-6-2/6-4 |
| EMI | CISPR 22, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV IEC 61000-4-6 CS: Signal: 10 kV IEC 61000-4-8 |
| Electrical Substations | IEC 61850-3, IEEE 1613 |
| Rail Traffic | EN 50121-4 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| • MTBF (mean time between failures) | |
| Time | 361,368 hrs. |
| Standard | Telcordia (Bellcore), GB |
| • Warranty | |
| Warranty Period | 5 years |
