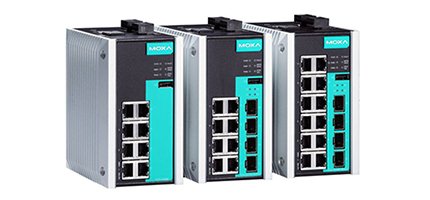

EDS-G516E-4GSFP
16G-port full Gigabit managed Ethernet switches
EDS-G500E serisi, 8/12/16 gigabit ethernet portu ve 4 adede kadar fiber optik port ile donatılmış olup, mevcut bir ağı gigabit hızına yükseltmek veya yeni bir gigabit omurgası oluşturmak için idealdir. Gigabit iletimi, daha yüksek performans için bant genişliğini artırır. Turbo Ring, Turbo Chain, RSTP/STP ve MSTP, sistem güvenilirliğini ve ağ omurganızın kullanılabilirliğini artırır. EDS-G500E serisi, video ve proses izleme, ITS ve DCS sistemleri gibi iletişim gerektiren uygulamalar için tasarlanmıştır.
- Up to 12 10/100/1000BaseT(X) ports and 4 100/1000BaseSFP ports (EDS-G516E)
- Turbo Ring and Turbo Chain (recovery time < 50 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy
- RADIUS, TACACS+, MAB Authentication, SNMPv3, IEEE 802.1x, MAC ACL, HTTPS, SSH, and MAC-address sticky to enhance network security
- Security features based on IEC-62443
- EtherNet/IP, PROFINET, and Modbus/TCP protocols supported for device management and monitoring
- Supports MXstudio for easy, visualized industrial network management
- V-ON™ ensures millisecond-level multicast data and video network recovery
ÜRÜN SİPARİŞ KODLARI :
|
8-port full Gigabit managed Ethernet switch,8 Gigabit T(X) ports, -10 to 60°C operating temperature |
|
|
8-port full Gigabit managed Ethernet switch,8 Gigabit T(X) ports, -40 to 75°C operating temperature |
|
|
12-port full Gigabit managed Ethernet switch,8 Gigabit T(X) ports, 4 Gigabit SFP slots, -10 to 60°C operating temperature |
|
|
12-port full Gigabit managed Ethernet switch,8 Gigabit T(X) ports, 4 Gigabit SFP slots, -40 to 75°C operating temperature |
|
|
16-port full Gigabit managed Ethernet switch, 12 Gigabit T(X) ports, 4 Gigabit SFP slots, -10 to 60°C operating temperature |
|
|
16-port full Gigabit managed Ethernet switch, 12 Gigabit T(X) ports, 4 Gigabit SFP slots, -40 to 75°C operating temperature |
| Toplam Port Sayısı | : | 16 |
| Çalışma Sıcaklığı | : | -10/+60C |
| 10/100/1000BaseT(X) | : | 12 |
| 100/1000Base SFP | : | 4 |
| • Technology | |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3x for Flow Control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid STP IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.1X for Authentication IEEE 802.3ad for Port Trunk with LACP |
| • Software Features | |
| Management | IPv4/IPv6, SNMP v1/v2c/v3, LLDP, Port Mirror, DDM, RMON, DHCP Server/Client, DHCP Option 66/67/82, BootP, TFTP, SMTP, RARP, Telnet, Syslog, SNMP Inform, Flow Control, Back Pressure Flow Control |
| Filter | 802.1Q VLAN, Port-Based VLAN, GVRP, IGMP v1/v2/v3, GMRP |
| Redundancy Protocols | STP, RSTP, MSTP, Turbo Ring v1/v2, Turbo Chain, Link Aggregation |
| Security | RADIUS, TACACS+, SSL, SSH, Broadcast Storm Protection, Port Lock |
| Time Management | SNTP, NTP Server/Client, IEEE 1588v2 PTP (software-based) |
| Industrial Protocols | EtherNet/IP, Modbus/TCP, PROFINET IO |
| MIB | MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9 |
| • Switch Properties | |
| Priority Queues | 4 |
| Max. Number of VLANs | 256 |
| VLAN ID Range | VID 1 to 4094 |
| IGMP Groups | 2048 |
| MAC Table Size | 8 K |
| Packet Buffer Size | 4 Mbits |
| Jumbo Frame Size | 9.6 KB |
| • Interface | |
| RJ45 Ports | 10/100/1000BaseT(X) auto negotiation speed |
| Fiber Ports | 100/1000BaseSFP slot |
| Console Port | USB-serial console (Type B connector) |
| Storage Port | USB storage (Type A connector for ABC-02-USB) |
| DIP Switches | Turbo Ring, Master, Coupler, Reserve |
| Alarm Contact | 1 relay output with current carrying capacity of 1 A @ 24 VDC |
| Digital Inputs | 1 input with the same ground, but electrically isolated from the electronics.• +13 to +30 V for state '1” • -30 to +3 V for state '0” • Max. input current: 8 mA |
| Button | Reset button |
| • Power Requirements | |
| Input Voltage | 12/24/48/-48 VDC, redundant dual inputs |
| Input Current | EDS-G516E: 0.39 A @ 24 VDC EDS-G512E: 0.34 A @ 24 VDC EDS-G508E: 0.28 A @ 24 VDC |
| Overload Current Protection | Present |
| Connection | 2 removable 2-contact terminal blocks |
| Reverse Polarity Protection | Present |
| • Physical Characteristics | |
| Housing | Metal |
| IP Rating | IP30 protection |
| Dimensions | 79.2 x 135 x 137 mm (3.1 x 5.3 x 5.4 in) |
| Weight | 1440 g (3.18 lb) |
| Installation | DIN-rail mounting, wall mounting (with optional kit) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: -10 to 60°C (14 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Standards and Certifications | |
| Safety | UL 508 |
| Hazardous Location | UL/cUL Class 1 Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nA nC IIC T4 Gc |
| EMC | EN 61000-6-2/6-4 |
| EMI | CISPR 22, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV IEC 61000-4-6 CS: Signal: 10 V IEC 61000-4-8 |
| Electrical Substations | IEC 61850-3, IEEE 1613 |
| Traffic Control | NEMA TS2 |
| Rail Traffic | EN 50121-4 |
| Marine | DNV, GL, LR, ABS, NK |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| Note | Please check Moxa’s website for the most up-to-date certification status. |
| • MTBF (mean time between failures) | |
| Time | EDS-G508E Series: 808,970 hrsEDS-G512E-4GSFP Series: 816,823 hrs EDS-G516E-4GSFP Series: 805,491 hrs |
| Standard | Telcordia (Bellcore), GB |
| • Warranty | |
| Warranty Period | 5 years |
