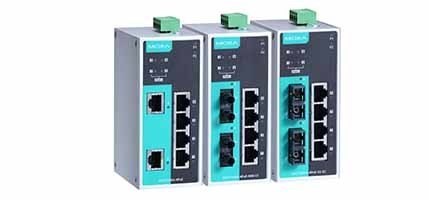

EDS-P206A-4PoE-T
Unmanaged PoE Ethernet switch with 4 PoE 10/100BaseT(X) ports, 2 10/100BaseT(X) ports, -40 to 75°C
EDS-P206 serisi, 4 PoE-port içeren 6-port’lu yönetilemez ethernet anahtarlarıdır. Güç kaynağı ekipmanı (PSE) olarak sınıflandırılmıştır ve bu şekilde kullanıldığında, EDS-P206 serisi, güç kaynağı merkezileştirilmesini sağlar ve her port için 30 watt'a kadar güç sağlar.
· IEEE 802.3af/at uyumlu PoE ve Ethernet combo port
· Maksimum 30 wat/PoE-port
· 12/24/48 VDC güç girişleri
· -40/+75°C çalışma sıcaklığı (T modellerinde)
ÜRÜN SİPARİŞ KODLARI :
|
EDS-P206A-4PoE |
Unmanaged PoE Ethernet switch with 4 PoE 10/100BaseT(X) ports, 2 10/100BaseT(X) ports, 0 to 60°C |
|
EDS-P206A-4PoE-MM-SC |
Unmanaged PoE Ethernet switch with 4 PoE 10/100BaseT(X) ports, and 2 100BaseFX multi mode port with SC connector, 0 to 60°C |
|
EDS-P206A-4PoE-MM-SC-T |
Unmanaged PoE Ethernet switch with 4 PoE 10/100BaseT(X) ports, and 2 100BaseFX multi mode port with SC connector, -40 to 75°C |
|
EDS-P206A-4PoE-MM-ST |
Unmanaged PoE Ethernet switch with 4 PoE 10/100BaseT(X) ports, and 2 100BaseFX multi mode port with ST connector, 0 to 60°C |
|
EDS-P206A-4PoE-MM-ST-T |
Unmanaged PoE Ethernet switch with 4 PoE 10/100BaseT(X) ports, and 2 100BaseFX multi mode port with ST connector, -40 to 75°C |
|
EDS-P206A-4PoE-M-SC |
Unmanaged PoE Ethernet switch with 1 10/100BaseT(X) ports, 4 PoE 10/100BaseT(X) ports, and 1 100BaseFX multi mode port with SC connector, 0 to 60°C |
|
EDS-P206A-4PoE-M-SC-T |
Unmanaged PoE Ethernet switch with 1 10/100BaseT(X) ports, 4 PoE 10/100BaseT(X) ports, and 1 100BaseFX multi mode port with SC connector, -40 to 75°C |
|
EDS-P206A-4PoE-M-ST |
Unmanaged PoE Ethernet switch with 1 10/100BaseT(X) ports, 4 PoE 10/100BaseT(X) ports, and 1 100BaseFX multi mode port with ST connector, 0 to 60°C |
|
EDS-P206A-4PoE-M-ST-T |
Unmanaged PoE Ethernet switch with 1 10/100BaseT(X) ports, 4 PoE 10/100BaseT(X) ports, and 1 100BaseFX multi mode port with ST connector, -40 to 75°C |
|
EDS-P206A-4PoE-S-SC |
Unmanaged PoE Ethernet switch with 1 10/100BaseT(X) ports, 4 PoE 10/100BaseT(X) ports, and 1 100BaseFX single mode port with SC connector, 0 to 60°C |
|
EDS-P206A-4PoE-S-SC-T |
Unmanaged PoE Ethernet switch with 1 10/100BaseT(X) ports, 4 PoE 10/100BaseT(X) ports, and 1 100BaseFX single mode port with SC connector, -40 to 75°C |
|
EDS-P206A-4PoE-SS-SC |
Unmanaged PoE Ethernet switch with 4 PoE 10/100BaseT(X) ports, and 2 100BaseFX single mode port with SC connector, 0 to 60°C |
|
EDS-P206A-4PoE-SS-SC-T |
Unmanaged PoE Ethernet switch with 4 PoE 10/100BaseT(X) ports, and 2 100BaseFX single mode port with SC connector, -40 to 75°C |
|
EDS-P206A-4PoE-T |
Unmanaged PoE Ethernet switch with 4 PoE 10/100BaseT(X) ports, 2 10/100BaseT(X) ports, -40 to 75°C |
| Toplam Port Sayısı | : | 6 |
| Çalışma Sıcaklığı | : | -40/+75C |
| 10/100BaseT(X) | : | 6 |
| PoE Port | : | 4 |
| • Technology | |
| Standards | IEEE 802.3af/at for Power-over-Ethernet IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3x for Flow Control |
| Processing Type | Store and Forward |
| • Switch Properties | |
| MAC Table Size | 2 K |
| Packet Buffer Size | 768 Kbit |
| • Interface | |
| RJ45 Ports | 10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection |
| Fiber Ports | 100BaseFX ports (SC/ST connector) |
| PoE Pinout | V+, V+, V-, V- for pins 1, 2, 3, 6 (Endspan, MDI-X Alternative A) |
| • Optical Fiber | |
| Table | |
| • Power Requirements | |
| Input Voltage | 12/24/48 VDC, redundant dual inputs |
| Operating Voltage | 12 to 57 VDC |
| Input Current | 5.55 A @ 24 VDC |
| Overload Current Protection | Present |
| Connection | 1 removable 4-contact terminal block |
| Reverse Polarity Protection | Present |
| Power Consumption | Max. 13.2 W full loading without PDs' consumption |
| Power Budget | Max. 120 W for total PDs’ consumptionMax. 30 W for each PoE port |
| • Physical Characteristics | |
| Housing | Metal |
| IP Rating | IP30 protection |
| Dimensions | 50.3 × 114 × 70 mm (1.98 x 4.53 x 2.76 in) |
| Weight | 375 g (0.83 lb) |
| Installation | DIN-rail mounting, wall mounting (with optional kit) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: -10 to 60°C (14 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Standards and Certifications | |
| Note | Please check Moxa’s website for the most up-to-date certification status. |
| Safety | UL 508 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: Signal: 10 V IEC 61000-4-8 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| • MTBF (mean time between failures) | |
| Time | 1,398,743 hrs |
| Standard | Telcordia (Bellcore), GB |
| • Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
