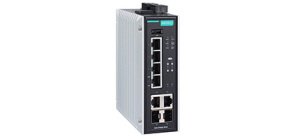

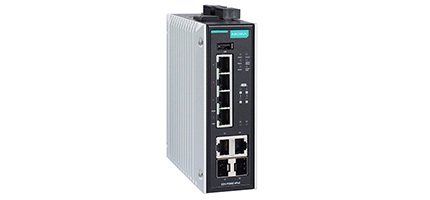

EDS-P506E-4PoE-2GTXSFP
4+2G-port Gigabit PoE+ managed Ethernet switches with 4 IEEE 802.3af/at PoE+ ports
Moxa EDS-P506E-4PoE Serisi, 4 adet 10/100BaseT(X), 802.3af(PoE) ve 802.3at(PoE+) uyumlu ethernet portu ve 2 adet combo gigabit ethernet portu içerir. EDS-P506E-4PoE serisi standart mod çalışmada PoE+ port'u başına 30 watt güç sağlar. SFP fiber portları, cihazdan 120km uzaklığa kadar veri iletebilir. STP/RSTP, Turbo Ring, Turbo Chain, PoE güç yönetimi, PoE güç programlama, IGMP, VLAN, QoS, RMON, bant genişliği yönetimi ve Port Mirroring gibi çeşitli yönetim fonksiyonlarını destekler. EDS-P506E-4PoE serisi, özellikle PoE sistemlerinin kesintisiz güvenilirliğini sağlamak için 4kV surge protection özelliğine sahiptir.
- Built-in 4 PoE+ ports compliant with IEEE 802.3af/at standards
- Up to 60 W output per PoE+ port
- 4 kV LAN surge protection for extreme outdoor environments
- PoE diagnostic for powered device mode analysis
- 2 Gigabit combo ports for high-bandwidth and long-distance communication
- Operates at 180 watts full PoE+ loading at -40 to 75°C
- Supports MXstudio for easy, visualized industrial network management
- V-ON™ ensures millisecond-level multicast data and video network recovery
ÜRÜN SİPARİŞ KODLARI :
|
EDS-P506E-4PoE-2GTXSFP |
6-port Gigabit managed Ethernet switch, 4 10/100BaseT(X) PoE/PoE+ ports, 2 Combo Port( 10/100/1000BaseT(X) or 100/1000BaseSFP), -10 to 60°C operating temperature |
|
6-port Gigabit managed Ethernet switch, 4 10/100BaseT(X) PoE/PoE+ ports, 2 Combo Port( 10/100/1000BaseT(X) or 100/1000BaseSFP), -40 to 75°C operating temperature |
| Toplam Port Sayısı | : | 6 |
| Çalışma Sıcaklığı | : | -10/+60C |
| 10/100BaseT(X) | : | 4 |
| PoE Port | : | 4 |
| Combo Port | : | 2 |
| • Technology | |
| Standards | IEEE 802.3af/at for Power-over-Ethernet IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3x for Flow Control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid STP IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.1X for Authentication IEEE 802.3ad for Port Trunk with LACP |
| • Software Features | |
| Management | IPv4/IPv6, SNMP v1/v2c/v3, LLDP, Port Mirror, DDM, RMON, DHCP Server/Client, DHCP Option 66/67/82, BootP, TFTP, SMTP, RARP, Telnet, Syslog, SNMP Inform, Flow Control, Back Pressure Flow Control |
| Filter | 802.1Q VLAN, Port-Based VLAN, GVRP, IGMP v1/v2/v3, GMRP |
| Redundancy Protocols | STP, RSTP, MSTP, Turbo Ring v1/v2, Turbo Chain, Link Aggregation, V-ON |
| Security | RADIUS, TACACS+, MAB Authentication, HTTPS, SSL, SSH,Broadcast Storm Protection, Port Lock, MAC ACL, MAC Sticky, NTP Authentication, SMTP with TLS |
| Time Management | SNTP, NTP Server/Client, IEEE 1588v2 PTP (software-based) |
| Industrial Protocols | EtherNet/IP, Modbus/TCP, PROFINET IO |
| MIB | MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9 |
| • Switch Properties | |
| Priority Queues | 4 |
| Max. Number of VLANs | 4096 |
| VLAN ID Range | VID 1 to 4094 |
| IGMP Groups | 256 |
| MAC Table Size | 16 K |
| Packet Buffer Size | 12 Mbits |
| • Interface | |
| RJ45 Ports | 10/100BaseT(X) or 10/100/1000BaseT(X) auto negotiation speed |
| Fiber Ports | 100/1000BaseSFP slot |
| Console Port | USB serial console (Type B connector) |
| PoE Pinout | 2-Pair PoE Mode: V+, V+, V-, V- for pins 1, 2, 3, 6 (Endspan, MDI, Mode A) |
| DIP Switches | Turbo Ring, Master, Coupler, Reserve |
| Alarm Contact | 1 relay output with current carrying capacity of 0.5 A @ 48 VDC |
| Digital Inputs | 1 input with the same ground, but electrically isolated from the electronics.• +13 to +30 V for state '1” • -30 to +3 V for state '0” • Max. input current: 8 mA |
| • Power Requirements | |
| Input Voltage | 12/24/48 VDC, redundant dual inputs (> 50 VDC for PoE+ or 60W output recommended) |
| Operating Voltage | 12 to 57 VDC |
| Input Current | 4.08 A @ 48 VDC |
| Overload Current Protection | Present |
| Connection | 2 removable 4-contact terminal blocks |
| Reverse Polarity Protection | Present |
| Power Consumption | Max. 18.96 W full loading without PDs' consumption |
| Power Budget | • Max. 180 W for total PDs’ consumption @ 48 VDC input • Max. 150 W for total PDs’ consumption @ 24 VDC input • Max. 62 W for total PDs’ consumption @ 12 VDC input • Max. 60 W for each PoE port |
| • Physical Characteristics | |
| Housing | Metal |
| IP Rating | IP40 protection |
| Dimensions | 49.1 x 135 x 116 mm (1.93 x 5.31 x 4.57 in) |
| Weight | 910 g (2.00 lb) |
| Installation | DIN-rail mounting, wall mounting (with optional kit) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: -10 to 60°C (14 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Standards and Certifications | |
| Note | Please check Moxa’s website for the most up-to-date certification status. |
| Safety | UL 61010-2-201, EN 61010 (LVD) |
| EMC | EN 61000-6-2/6-4 |
| EMI | CISPR 22, FCC Part 15B Class A |
| EMS | EN 61000-4-2 (ESD): Contact: 8 kV; Air: 15 kV EN 61000-4-3 (RS): 80 MHz to 1 GHz: 20 V/m EN 61000-4-4 (EFT): Power: 4 kV; Signal: 4 kV EN 61000-4-5 (Surge): Power: 4 kV; Signal: 4 kV EN 61000-4-6 (CS): 10 V EN 61000-4-8 |
| Electrical Substations | IEC 61850-3, IEEE 1613 |
| Traffic Control | NEMA-TS2 |
| Rail Traffic | EN 50121-4 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-31 |
| Vibration | IEC 60068-2-6 |
| • MTBF (mean time between failures) | |
| Time | 755,167 hrs |
| Standard | Telcordia (Bellcore), GB |
| • Warranty | |
| Warranty Period | 5 years |
