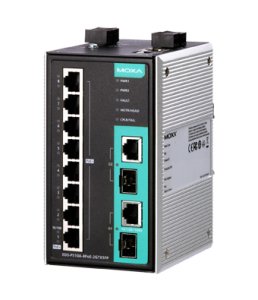

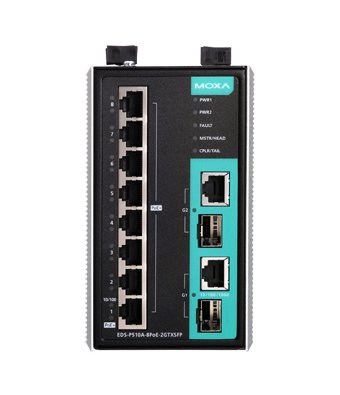

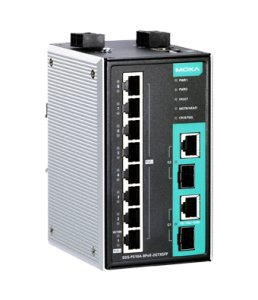

EDS-P510A-8PoE-2GTXSFP-T
8+2G-port Gigabit PoE+ managed Ethernet switches with 8 IEEE 802.3af/at PoE+ ports
- Gelişmiş PoE Yönetim Fonksiyonu (PoE Port Ayarları,PD Hata Kontrolü, PoE Zaman Ayarlama)
- Major yönetim fonksiyonları ve hızlı kurulum için CLI desteği
- IPv6 Ready desteği (IPv6 Logo Komitesi Sertifikalı)
- Hassas zaman senkronizasyonu için yazılım tabanlı IEEE 1588 PTPv2 (Hassas Zaman Protokolü) desteği sağlar.
- Farklı kurallar ile IP ataması için DHCP Option 82 desteği
- Cihaz yönetim ve izleme için Ethernet/IP ve Modbus/TCP desteği.
- Transperent data trasnferlerinde PROFINET protokol uyumu
- Ağ yedekliliği için Turbo Ring, Turbo Chain (recovery time < 50 ms @ 250 switches), RSTP/STP, ve MSTP desteği
- Multicast trafik kontrolü için IGMP snooping ve GMRP desteği
- Port Based VLAN, IEEE 802.1Q VLAN ve GVRP protokol desteği
- QoS (IEEE 802.1p/1Q and TOS/DiffServ) desteği
- Optimum bantgenişliği kullanımı için Port Trunking desteği
- TACACS+, SNMPv3, IEEE 802.1X, HTTPS ve SSH desteği
- SNMPv1/v2c/v3 desteği
- RMON desteği
- Öngörülemeyen network problemlerine karşı bant genişliği yönetimi
- Yetkisiz erişimleri engellemek için Mac Adress tabanlı port kilitleme
- Anlık hata ayıklama için Port Mirroring desteği
- E-mail ya da röle çıkışlı hata uyarı desteği
ÜRÜN SİPARİŞ KODLARI :
|
Managed Gigabit Ethernet switch with 8 PoE/PoE+ 10/100BaseT(X) ports, and 2 combo 10/100/1000BaseT(X) or 100/1000BaseSFP slots for adding SFP-1G/1FE series Gigabit/fast Ethernet modules, 0 to 60°C operating temperature |
|
|
EDS-P510A-8PoE-2GTXSFP-T |
Managed Gigabit Ethernet switch with 8 PoE/PoE+ 10/100BaseT(X) ports, and 2 combo 10/100/1000BaseT(X) or 100/1000BaseSFP slots for adding SFP-1G/1FE series Gigabit/fast Ethernet modules, -40 to 75°C operating temperature |
| Toplam Port Sayısı | : | 10 |
| Çalışma Sıcaklığı | : | -40/+75C |
| 10/100BaseT(X) | : | 8 |
| PoE Port | : | 8 |
| Combo Port | : | 2 |
| • Technology | |
| Standards | IEEE 802.3af/at for Power-over-Ethernet IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3x for Flow Control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid STP IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.1X for Authentication IEEE 802.3ad for Port Trunk with LACP |
| • Software Features | |
| Management | IPv4/IPv6, SNMP v1/v2c/v3, LLDP, Port Mirror, DDM, RMON, DHCP Server/Client, DHCP Option 66/67/82, BootP, TFTP, SMTP, RARP, Telnet, Syslog, SNMP Inform, Flow Control, Back Pressure Flow Control |
| Filter | 802.1Q VLAN, Port-Based VLAN, GVRP, IGMP v1/v2, GMRP |
| Redundancy Protocols | STP, RSTP, MSTP, Turbo Ring v1/v2, Turbo Chain, Link Aggregation |
| Security | RADIUS, TACACS+, SSL, SSH, Port Lock |
| Time Management | SNTP, NTP Server/Client, IEEE 1588v2 PTP (software-based) |
| Industrial Protocols | EtherNet/IP, Modbus/TCP |
| MIB | MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9 |
| • Switch Properties | |
| Priority Queues | 4 |
| Max. Number of VLANs | 64 |
| VLAN ID Range | VID 1 to 4094 |
| IGMP Groups | 1024 |
| MAC Table Size | 8 K |
| Packet Buffer Size | 1 Mbit |
| • Interface | |
| RJ45 Ports | 10/100BaseT(X) or 10/100/1000BaseT(X) auto negotiation speed |
| Fiber Ports | 100/1000BaseSFP slot |
| Console Port | RS-232 (RJ45 connector) |
| PoE Pinout | V+, V+, V-, V- for pin 1, 2, 3, 6 (Endspan, MDI, Mode A) |
| DIP Switches | Turbo Ring, Master, Coupler, Reserve |
| Alarm Contact | 1 relay output with current carrying capacity of 0.5 A @ 48 VDC |
| Digital Inputs | 1 input with the same ground, but electrically isolated from the electronics. • +13 to +30 V for state '1” • -30 to +3 V for state '0” • Max. input current: 8 mA |
| • Power Requirements | |
| Input Voltage | 48 VDC, redundant dual inputs |
| Operating Voltage | 44 to 57 VDC |
| Input Current | 5.36 A @ 48 VDC |
| Overload Current Protection | Present |
| Connection | 2 removable 2-contact terminal blocks |
| Reverse Polarity Protection | Present |
| Power Consumption | Max. 17.28 W full loading without PDs' consumption |
| Power Budget | Max. 240 W for total PDs’ consumption Max. 36 W for each PoE port |
| • Physical Characteristics | |
| Housing | Metal |
| IP Rating | IP30 protection |
| Dimensions | 79.2 x 135 x 105 mm (3.12 x 5.31 x 4.13 in) |
| Weight | 1030 g (2.28 lb) |
| Installation | DIN-rail mounting, wall mounting (with optional kit) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Standards and Certifications | |
| Safety | UL 508 |
| Hazardous Location | UL/cUL Class 1 Division 2 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: Signal: 10 V IEC 61000-4-8 |
| Traffic Control | NEMA-TS2 |
| Rail Traffic | EN 50121-4 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 Note: Please check Moxa’s website for the most up-to-date certification status. |
| • MTBF (mean time between failures) | |
| Time | 710,166 hrs |
| Standard | Telcordia (Bellcore), GB |
| • Warranty | |
| Warranty Period | 5 years |
