EDSOR04P-01

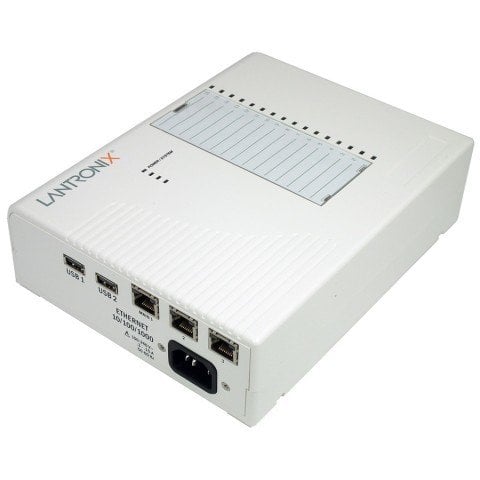

EDS-MD 4-Port Medical Device Server
Medikal uygulamalar için özel olarak tasarlanan ve UL / IEC-60601 uyumlu olan EDS-MD, tüm medikal elektronik cihazların uzaktan erişimini ve yönetimini sağlar. EDS-MD serisi, her biri izole olan 4,8 veya 16 RS-232 port içeren ve Gigabit (10/100/1000Mbps) içeren bir cihazdır. Uygulamada bir topraklama problemi meydana geldiğinde EDS-MD veya bağlı diğer cihazların çalışması etkilenmez. Lantronix'in "Secure Com Port Redirector” yazılımı ile varolan seri port uygulamaları herhangi bir kod değişikliği yapmaksızın EDS-MD ile çalışabilir. Sanal COM bağlantı noktaları EDS-MD'ye eşleştirilebilir ve iletişimin her iki ucunda da şifrelenebilir ve böylece en üst düzeyde güvenlikle Internet üzerinden uzaktaki aygıt sunucularına hassas bilgi aktarımı yapılabilir.
- UL ve IEC-60601 uyumlu (bağlı tıbbi cihazların korunması için galvanik port izolasyonu)
- SSL ve SSH ile güvenli ağ bağlantısı
- Web, CLI ve XML ile basit kurulum ve konfigürasyon
- Gigabit Ethernet
- 4, 8 veya 16 port seçenekleri
ÜRÜN SİPARİŞ KODLARI :
|
EDSOR04P-01 |
EDS-MD 4-Port Medical Device Server |
|
EDS-MD 8-Port Medical Device Server |
|
|
EDS-MD 16-Port Medical Device Server |
Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
- USB 2.0
Hardware
- 600MHz ARM 11 processor
- 8 MB Flash
- 4 GB SD Card (internal only)
- 256 MB SDRAM
- Real Time Clock with Battery back-up
- Onboard Thermal Sensor
Physical Interface

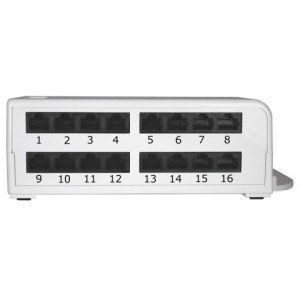

- 4/8/16 RJ45 (DTE) Serial Connectors
- RS-232 Interface
- Data rates – up to 921 Kbps
- ESD Protection – 15kV
- Circuit and port isolation – 1.5KVAC

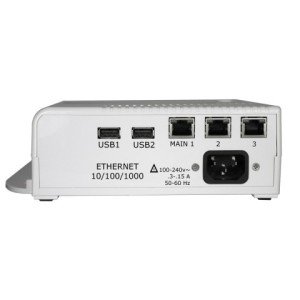

- 2 USB Host ports – USB-A receptacle connectors
- Output Capability = 0.5A
- Circuit and port isolation – 1.5KVAC
- 1 Ethernet port – RJ45 connector^
- 10/100/1000Mbps
- Autosensing MDI/MDIX
- Full/half duplex
- Circuit and port isolation – 1.5KVAC
- 1 Reset Button
^ 2 additional Ethernet ports enabled with future firmware release.
LED Indicators
- Power/System
- Serial Ports (4, 8, 16)
- Ethernet – Activity/Link
Physical Dimensions
- Size: L x W x H
- 21 cm (8.25 in) x 19 cm (7.5 in) x 6 cm (2.4 in)
- Weight:
- 16-Port = 0.9 Kg (2.0) lbs
- 8-port = 0.82 Kg (1.8 lbs)
- 4-port = 0.8 Kg (1.75 lbs)
Software
- DeviceInstaller™ supported on
- Windows 7 (32-bit and 64-bit)
- Windows 8/8.1 (32-bit and 64-bit)
- Windows 10 (32-bit and 64-bit)
- Server 2008 R2 (64-bit only)
- Server 2012 (32-bit and 64-bit)
- Server 2012 R2 (64-bit only)
- Secure Com Port Redirector™
Security
- SSL v3, SSH v2 Client & Server – up to 1024-bit certificates
- Encryption: AES, 3DES, RC4
- Authentication: SHA-1, MD5, Base-64
Management
- Web Browser (SSL option for secure login)
- CLI (over Serial Ports, Telnet or SSH)
- XML Configuration Records via CLI or FTP
Environmental
- Operating Temp: 0°C to +55° C (32°F to 131°F)
- Storage Temp: -30°C to +80° C
- Relative Humidity: 20% to 90% relative humidity, non-condensing
- IP Rating = 20
Power
- Input: IEC60320 C14 receptacle without a power switch
- 100-240 VAC, 50/60 HZ, 0.4A
- Power Consumption: 23 Watts Max
- Nominal Power: 12 Watts
Mounting
- Wall mount
- Desktop
Certifications
- Emissions:
- FCC part 15 Subpart B
- EN 60601-1-2: 2007
- Industry Canada ICES-003 Issue 4 February 2004
- CISPR 22:2005 + A1: 2005 + A2: 2006 ITE
- CISPR 11:2003 + A1: 2004 + A2: 2006
- VCCI V-3/2010.04
- AS/NZS CISPR 22: 2009
- EN 55022: 2006 + A1: 2007
- EN61000-3-2: 2006 + A1: 2009 + A2: 2009
- EN61000-3-3: 2008
- Immunity:
- EN55024 1998 + A1: 2001 + A2: 2003
- EN60601-1-2: 2007
- EN61000-4-2: 2009
- EN61000-4-3: 2006 + A1: 2008
- EN61000-4-4: 2004 + A1: 2010
- EN61000-4-5: 2006
- EN61000-4-6: 2009
- EN61000-4-8: 1994 + A1: 2001
- EN61000-4-11: 2004
- Safety:
- UL 60950-1: 2nd edition; US Safety Standard for Information Technology Equipment
- UL 60601-1: 1st edition; US Safety Standard for Medical Electrical Equipment
- CAN/CSA-C22.2; No. 60950-1-07: 2nd edition; Canada Safety Standard for Information Technology Equipment
- CAN/CSA C22.2; No. 601.1: 1990; Canada Safety Standard for Medical Electrical Equipment
- IEC 60601-1: 1998 (2nd edition); International Safety Standard for Medical Electrical Equipment
- EN60601-1: 1990 (2nd edition) Medical Electrical Equipment –Part 1: General Requirements for Safety
- JIS T 0601-1:1999, Japan Safety Standard for Medical Electrical Equipment
- Reach
- RoHS
Warranty
- 5-year Limited
