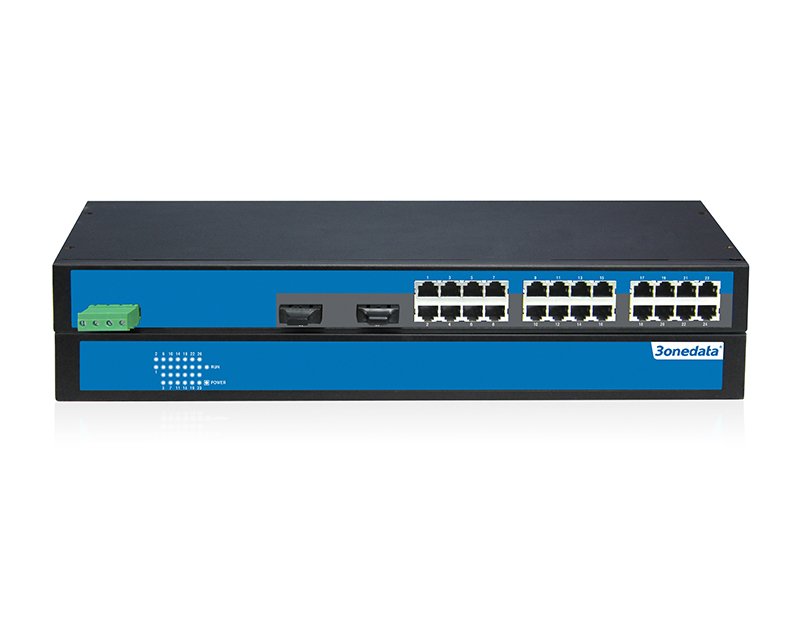

ES1026-2F (MM,SC)
24*10/100Base-TX (RJ45)v+ 2*100Base-FX (Multi-Mode, SC, dual fibers, 2KM), single power supply: 110-220VAC
- Support 24 100M copper ports and 2 100M fiber ports
- Input power supply; 100-240VAC
- Support 0~70℃ wide operating temperature range
| ES1026-2F (MM,SC) | 24*10/100Base-TX (RJ45)+ 2*100Base-FX (SC, multi-mode, dual fibers, 2KM), single power supply: 110-220VAC |
| ES1026-2F (MM,ST) | 24*10/100Base-TX (RJ45)+ 2*100Base-FX (ST, multi-mode, dual fibers, 2KM), single power supply: 110-220VAC |
| ES1026-2F (SM,SC) | 24*10/100Base-TX (RJ45)+ 2*100Base-FX (SC, single mode, dual fibers, 20KM), single power supply: 110-220VAC |
| ES1026-2F (SM,ST) | 24*10/100Base-TX (RJ45)+ 2*100Base-FX (ST, single mode, dual fibers, 20KM), single power supply: 110-220VAC |
| Toplam Port Sayısı | : | 26 |
| Çalışma Sıcaklığı | : | 0/+70C |
| 10/100BaseT(X) | : | 24 |
| 100BaseFX SFP | : | 2 |
|
Standard &Protocol
|
IEEE 802.3 for 10Base-TX IEEE 802.3u for 100Base-TX and 100Base-FX
|
| Interface |
Copper port: 10/100Base-TX, RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning Fiber port: 100Base-FX SC/ST/FC Interface
|
|
LED Indicator |
Running Indicator, Port Indicator, Power Supply Indicator
|
|
Switch Property |
Transmission mode: store and forward MAC address: 8K Packet buffer size: 2.5M Backplane bandwidth: 12.8G Switch time delay: < 15μs
|
|
Power Requirement |
100-240VAC/DC, 4-pin 7.62mm pitch terminal blocks
|
|
Power Consumption |
No-load: 4.2W@220VAC Full-load: 6.7W@220VAC |
|
Environmental Limit |
Operating temperature: 0~70℃ Storage temperature: -40~75℃ Relative humidity: 5%～95%（no condensation）
|
|
Physical Characteristic |
Housing: IP30 protection, metal Installation: 19 inches rack mounting Dimension (W x H x D): 441.6mm×44.6mm×207.9mm
|
|
Industrial Standard |
IEC61000-4-2 (ESD)，Level 4 Air discharge: ±8kV Contact discharge: ±8kV IEC61000-4-4 (EFT), Level 4 Power supply: ±4kV Ethernet interface: ±2kV IEC61000-4-5 (Surge), Level 4 Power supply: common mode ±4kV, differential mode ±2kV Ethernet interface: ±4kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
|
|
Certification |
CE, FCC, RoHS |
