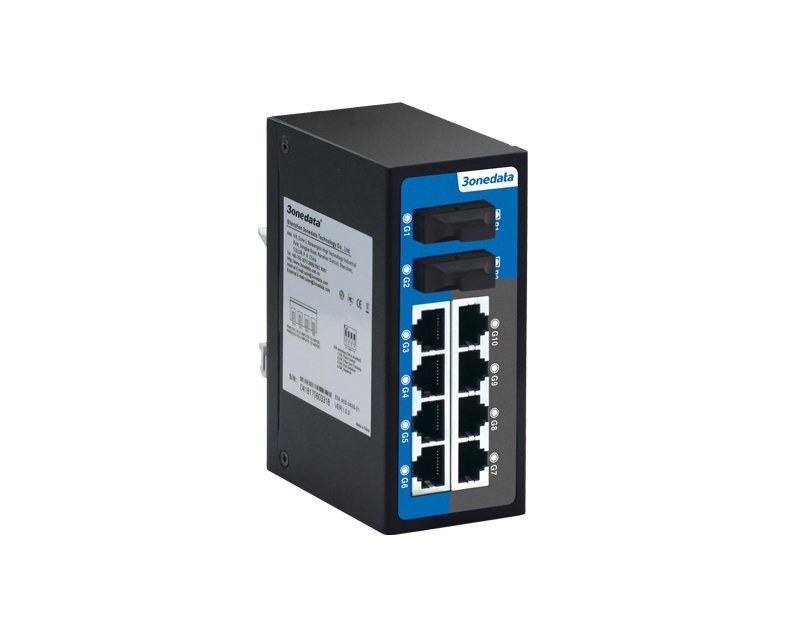

ES2010G-2GF (SM,SC)
8*10/100/1000Base-TX (RJ45) + 2*1000Base-FX (Single-Mode, SC, dual fibers, 20KM), , dual power supply:12~48VDC
- Support 2 Gigabit fiber ports, 8 Gigabit copper ports
- Input voltage: 12~48VDC, nonpolarity, reverse polarity protection
- Support 0~55℃ wide operating temperature range
| ES2010G-2GS | 8*10/100/1000Base-TX (RJ45)+2*Gigabit SFP(SFP slot), dual power supply:12~48VDC |
| ES2010G-2GF (MM,SC) | 8*10/100/1000Base-TX (RJ45)+2*1000Base-FX (SC/ST/FC, multi-mode, dual fibers, 2KM), , dual power supply:12~48VDC |
| ES2010G-2GF (MM,ST) | |
| ES2010G-2GF (SM,SC) | 8*10/100/1000Base-TX (RJ45)+2*1000Base-FX (SC/ST/FC, single-mode, dual fibers, 20KM), , dual power supply:12~48VDC |
| ES2010G-2GF (SM,ST) |
| Toplam Port Sayısı | : | 10 |
| Çalışma Sıcaklığı | : | 0/+55C |
| 10/100/1000BaseT(X) | : | 8 |
| 1000BaseFX SFP | : | 2 |
|
Standard &Protocol
|
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3z for 1000Base-X IEEE 802.3x for Flow Control
|
| Interface |
Copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning Fiber port: 1000Base-FX, SC/ST/FC optional SFP slot: 1000Base-SFP
|
|
LED Indicator |
Power Supply Indicator, Port Indicator
|
|
Switch Property |
Transmission mode: store and forward MAC address: 8K Packet buffer size: 1Mbit Backplane bandwidth: 20G Switch time delay: < 10μs
|
|
Power Requirement |
12~48VDC, 4-pin 7.62mm pitch terminal blocks Dual power supply redundancy, reverse polarity protection
|
|
Environmental Limit |
Operating temperature: 0~55℃ Storage temperature: -10~65℃ Relative humidity: 5%～95%（no condensation）
|
|
Physical Characteristic |
Housing: IP30 protection, metal Installation: DIN-Rail mounting Dimension (W x H x D): 50mm×115mm×80mm Weight: ≤450g
|
|
Industrial Standard |
IEC 61000-4-2 (ESD) ，Level 4 (Suit for ES2010G-2GS) Air discharge: ±15kV Contact discharge: ±8kV IEC 61000-4-2 (ESD), Level 1 (Suit for ES2010G-2GF) Air discharge: ±2kV Contact discharge: ±2kV IEC 61000-4-5 (Surge), Level 2 (Suit for ES2010G-2GF) Power supply: common mode ±1kV, differential mode ±0.5kV Ethernet port: ±1kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
|
|
Certification |
CE, FCC, RoHS |
