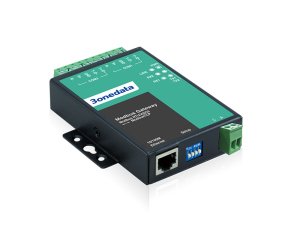

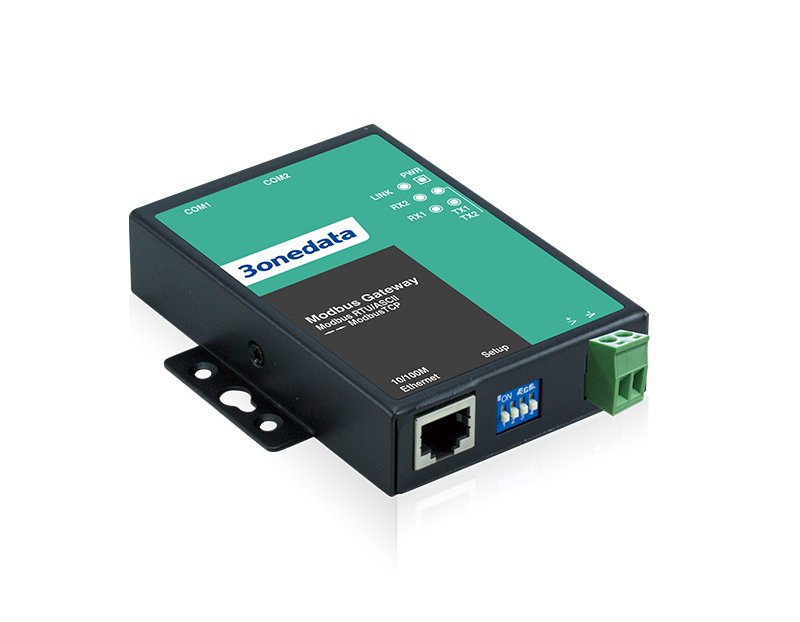

GW1102-2D(RS-485)
Ethernet Modbus Gateway
2*RS-422/485 + 1*10/100Base-T(X), single power supply 12-48VDC, wall-mounting
- 2 adet RS-232 veya RS-422/485 seri port ,1 adet 10/100Base-T(X) ethernet
- Modbus RTU/ASCII ve Modbus TCP protokolleri arası çevrim
- RTU Master, RTU Slave, ASCII Master, ASCII Slave çalışma modları
- Sunucu ve istemci cihazlar arası esnek erişim için "Virtual&Real ID mapping"
- -40~75℃
| GW1102-2D(RS-232) | 2*RS-232+1*10/100Base-T(X), single power supply 12-48VDC, wall-mounting |
| GW1102-2D(RS-485) | 2*RS-422/485+1*10/100Base-T(X), single power supply 12-48VDC, wall-mounting |
| Çalışma Sıcaklığı | : | -40/+75C |
| Toplam Port Sayısı | : | 3 |
| RS-422/485 | : | 2 |
| Konnektör Tipi | : | Terminal Block |
| 10/100BaseT(X) | : | 1 |
| MODBUS | : | VAR |
|
Ethernet Port |
Standard: 10Base-T, 100Base-TX Protocol: Modbus TCP, TCP, IP, UDP, ARP, HTTP, TELNET, SNMP, ICMP, DHCP, DNS Rate: 10/100M automatic flow control, MDI/MDI-X autotunning Interface quantity: 1 Interface form: RJ45 Duplex mode: full/half duplex mode self-adaption
|
| Serial Port |
Standard: EIA RS-232C, RS-485, RS-422 Protocol: Modbus RTU/ASCII Quantity of serial port: 2 RS-232 or RS-485/422 serial port RS-232 signal: RXD, TXD, DTR, GND, DSR, RTS, CTS, DCD RS-485 signal: D+, D-, GND RS-422 signal: T+, T-, GND, R+, R- Baud rate: 300-115200bps Data bit: 5bit, 6bit, 7bit, 8bit Parity bit: None, Even, Odd, Space, Mark Stop bit: 1bit, 2bit Interface form: RS-232, adopt RJ45; RS-485/422, adopt 10-pin 5.08mm pitch terminal blocks Flow control: RTS/CTS, DTR/DSR, XON/XOFF Pull high/low resistor for RS-485: 4.7kΩ Operating mode: RTU Master, RTU Slave, ASCII Master and ASCII Slave Connection quantity: up to 32 TCP Slave requests are supported under Master mode up to 16 TCP Master connections are supported under Slave mode
|
| Configuration |
WEB configuration management, TELNET configuration, Windows configuration tool
|
| Security |
Classification of User Permissions, IP address filtering, MAC address filtering, WEB Console, TELNET Console
|
|
Indicator
|
Power supply indicator, Ethernet port indicator, serial port indicator |
|
Power Requirement
|
9~48VDC, 2 pins 5.08mm pitch terminal blocks
|
|
Power Consumption |
GW1102-2D(RS-232) No-load: 0.86W@24VDC Full-load: 0.94W@24VDC GW1102-2D(RS-485) No-load: 1.00W@24VDC Full-load: 1.32W@24VDC
|
|
Environmental Limit |
Operating temperature range: -40~75℃ Storage temperature range: -40~85℃ Relative humidity: 5%～95%（no condensation）
|
|
Physical Characteristic |
Housing: IP40 protection, metal Installation: wall mounting Dimension (W x H x D): 69mm×22mm×100mm Weight: 230g (RS-232), 250g (RS-485)
|
|
Industrial Standard |
IEC 61000-4-2 (ESD, Electro-static Discharge), Level 3 Air discharge: ±8kV Contact discharge: ±6kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
|
|
Certification |
CE, FCC, RoHS |
