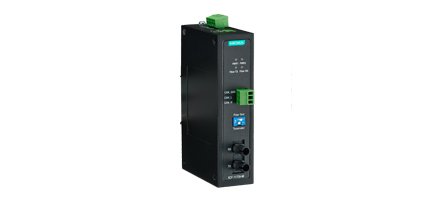

ICF-1170I-M-ST
Endüstriyel CAN-Fiber çeviriciler
ICF-1170I serisi CAN-fiber dönüştürücüler, CAN sinyallerini bakırdan optik fibere dönüştürmek için kullanılır. Konvertörler, CANbus sisteminizin çevrimiçi kalmasını sağlamak için CANbus sistemi için 2 kV optik izolasyon ve alarm kontak röleli çift güç girişleri ile gelir.
Fiber Test Modu, iki ICF-1170I birimi arasındaki fiber kabloyu test etmek için kullanılabilir ve fiber kablonun verileri doğru şekilde iletip iletmediğini belirlemenin basit bir yolunu sağlar. Fiber Test Modunda, fiber alıcı verici (TX) sürekli olarak bir veri sinyali gönderir ve "Fiber TX” LED'i yanar. Bağlantının diğer tarafında, ICF-1170I fiber alıcı-vericisi (RX) TX tarafındaki veri sinyalini aldığında, "Fiber RX” LED'i yanar.
- Transmits up to 2 km over optical fiber
- Converts CAN signals to fiber and fiber to CAN signals
- Baudrate up to 1 Mbps
- Dual power inputs for redundancy
- DIP switch for 120 ohm terminal resistance
- DIP switch for fiber test mode
- LEDs for Fiber TX, Fiber RX, Power 1, Power 2
- Wide temperature model available for -40 to 85°C environments
- Fully compatible with the ISO 11898 standard
ÜRÜN SİPARİŞ KODLARI :
|
ICF-1170I-M-ST |
Industrial CAN bus to Fiber Optic Converter, ST Multi-mode, 0 to 60℃ Temperature |
|
Industrial CAN bus to Fiber Optic Converter, ST Multi-mode, -40 to 85 ℃ Temperature |
| Çalışma Sıcaklığı | : | 0/+60C |
| Toplam Port Sayısı | : | 2 |
| 100BaseFX | : | 1 |
| CAN Port | : | 1 |
| • CAN Communication | |
| CAN Interface | ISO 11898-2, Terminals (CAN_H, CAN_L,CAN_GND) |
| Protocols | CAN 2.0A and 2.0B (ISO 11898-2) |
| Connector Type | 3-pin removable screw terminal x1 |
| Termination Resistor | Dip switch selector for 120 Ω terminal resistor |
| Transfer Rate | Up to 1 Mbps |
| System Delay | 150 ns |
| Isolation Protection | 2 kV |
| Transmission Distance | Max 2 km (depends on the data rate and the protocol used) Note: The transmission distance is limited by the signal rate, as indicated in the ISO 11898-2 standard. |
| LED Indicators | PWR1, PWR2, Fiber TX, Fiber RX |
| • Fiber Communication | |
| Connector Type | ST (multi-mode) fiber ports |
| Fiber Cable Requirements | |
| • Physical Characteristics | |
| Housing | Metal |
| Dimensions | 30.3 x 70 x 115 mm (1.19 x 2.76 x 4.53 in) |
| Weight | 178 g (0.39 lb) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 85°C (-40 to 185°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Power Requirements | |
| Input Voltage | 12 to 48 VDC dual power for redundant power |
| Input Current | ICF-1170I: 221 mA @ 12 VDC Alarm Contact: 1 relay output with current-carrying capacity of 1 A @ 24 VDC |
| Voltage Reversal Protection | Protects against V+/V- reversal |
| Overcurrent Protection | 1.1 A (protects against two signals shorted together) |
| • Standards and Certifications | |
| Safety | UL 508 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | EN 61000-4-2 (ESD): Contact: 8 kV; Air: 15 kV EN 61000-4-3 (RS): 80 MHz to 1 GHz: 3 V/m EN 61000-4-4 (EFT): Power: 4 kV; Signal: 2 kV EN 61000-4-5 (Surge): Power: 2 kV; Signal: 1 kV EN 61000-4-6 (CS): 150 kHz to 80 MHz: 3 V/m EN 61000-4-8 (PFMF) |
| Green Product | RoHS, CRoHS, WEEE |
| Freefall | IEC 60068-2-32 |
| • MTBF (mean time between failures) | |
| Time | 792,085 hrs |
| Standard | Telcordia (Bellcore), GB |
| • Warranty | |
| Warranty Period | 5 years |
