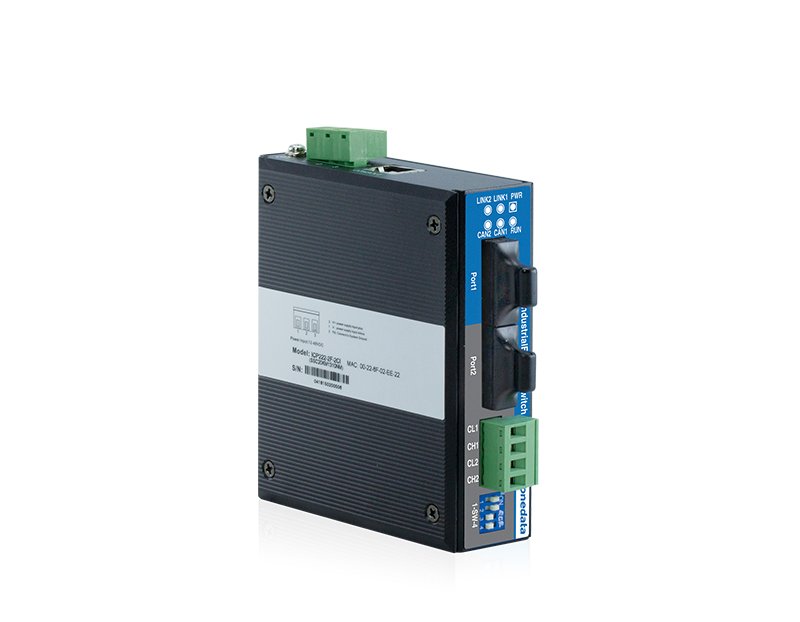

ICP222-2F-2CI (MM,ST)
CAN Bus to Fiber Converter
2-port CAN to 2-port Fiber converter, Multi-Mode, ST ,2Km, 9-48VDC
- 2xFiber ve 2xCAN
- SW-Ring ve Single Ring desteği
- TCP Server, TCP Client, UDP ve TCP Auto
- Ağ sorunlarında otomatik kurtarma <20ms
- 5K-1000Kbps
- 12-48VDC
- -40~75℃
| ICP222-2F-2CI (MM,SC) | 2-port CAN to 2-port Fiber converter, Multi-Mode, SC ,2Km, 9-48VDC |
| ICP222-2F-2CI (MM,ST) | 2-port CAN to 2-port Fiber converter, Multi-Mode, ST ,2Km, 9-48VDC |
| ICP222-2F-2CI (SM,SC) | 2-port CAN to 2-port Fiber converter, Single-Mode, SC, 20Km, 9-48VDC |
| ICP222-2F-2CI (SM,ST) | 2-port CAN to 2-port Fiber converter, Single-Mode, ST, 20Km, 9-48VDC |
| Çalışma Sıcaklığı | : | -40/+75C |
| Toplam Port Sayısı | : | 4 |
| 100BaseFX | : | 2 |
| CAN Port | : | 2 |
|
Fiber Port |
Standard: IEEE 802.3u for 100Base-FX Protocol: TCP, UDP, ARP, HTTP, SW-Ring, TELNET, ICMP, DHCP, DNS Port quantity: 2 Ring network configuration: single ring Transmission speed: 100M Interface form: SC/ST/FC Duplex mode: full duplex Transmission distance: multimode: 2km single mode: 20/40/60/80/100/120km Transmission wavelength: multimode: 1310nm single mode: 1310nm or 1550nm Operating mode: 4 sessions, support operating modes like TCP Server, TCP Client, UDP, TCP Auto, advanced TCP Server and advanced UDP
|
| CAN Interface |
Standard: CAN2.0A, CAN2.0B Interface quantity: 2 CAN ports CAN signal: CANH, CANL Duplex mode: 2-wire Half Duplex Mode Baud rate: 2.5kbps-1000kbps Load capacity: support concurrent transmitting of 110 nodes Transmission distance: 40m~10km Interface form: adopt 4-pin 5.08mm pitch terminal blocks Terminating resistor: optional external 120Ω terminating resistor Interface protection: 2kVAC isolation protection
|
| Console Port |
CLI command line management port (RS-232), RJ45 |
| Configuration Method |
WEB configuration management, TELNET configuration, Windows configuration tool |
| Redundancy Technology |
SW-Ring |
|
LED Indicator
|
Power supply indicator, running indicator, Ethernet fiber port indicator, CAN port indicator |
|
Power Requirement
|
12~48VDC 3-pin 7.62mm pitch terminal blocks Support non-polar connection
|
|
Power Consumption |
No-load: 2.81W@24VDC Full-load: 3.00W@24VDC
|
|
Environmental Limit |
Operating temperature: -40~75℃ Storage temperature:-40~85℃ Relative humidity: 5%～95%(no condensation)
|
|
Physical Characteristic |
Housing: IP40 protection, metal Installation: DIN-Rail mounting Dimension (W x H x D): 35mm×110mm×95mm Weight: 374g
|
|
Industrial Standard |
IEC 61000-4-2 (ESD, electrostatic discharge), Level 3 Air discharge: ±8kV Contact discharge: ±6kV IEC 61000-4-4 (EFT, electrical fast transient), Level 4 Power supply: ±4kV IEC 61000-4-5 (Surge), Level 3 Power supply: common mode±2kV, differential mode±1kV CAN port: common mode±2kV, differential mode±1kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
|
|
Certification |
CE, FCC, RoHS |
