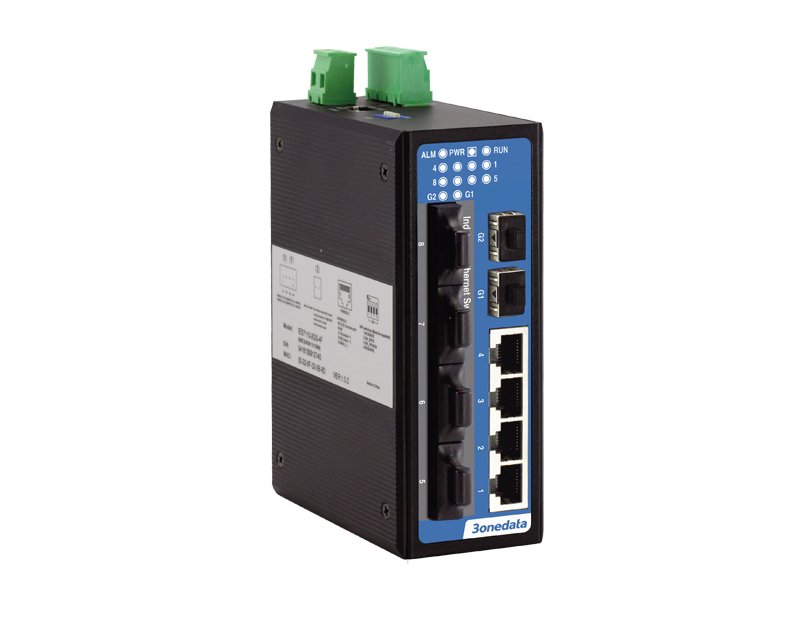

IES2010-2GS-4F (SM,SC)
2*1000M SFP(SFP slot) + 4*100Base-FX (Single-mode, SC, 20KM) + 4*10/100Base-T(X) (RJ45), dual power supply:12～48VDC
- Support 2 gigabit fiber ports(SFP slot), 4 100M copper ports and 4 100M fiber or copper ports optional
- Support dual power supply, input voltage: 12~48VDC
- Support -40~75℃ wide operating temperature range
| IES2010-2GS | 2*1000M SFP(SFP slot) +8*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| IES2010-2GS-4F (MM,SC) | 2*1000M SFP(SFP slot) + 4*100Base-FX (Multi-mode, SC, 2KM) + 4*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| IES2010-2GS-4F (MM,ST) | 2*1000M SFP(SFP slot) + 4*100Base-FX (Multi-mode, ST, 2KM) + 4*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| IES2010-2GS-4F (SM,SC) | 2*1000M SFP(SFP slot) + 4*100Base-FX (Single-mode, SC, 20KM) + 4*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| IES2010-2GS-4F (SM,ST) | 2*1000M SFP(SFP slot) + 4*100Base-FX (Single-mode, ST, 20KM) + 4*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| Toplam Port Sayısı | : | 10 |
| Çalışma Sıcaklığı | : | -40/+75C |
| 10/100BaseT(X) | : | 4 |
| 100BaseFX SFP | : | 4 |
| 1000Base SFP | : | 2 |
|
Standard &Protocol
|
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3z for 1000Base-X
|
| Interface |
Copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning Fiber port: 100Base-FX, SC/ST/FC optional SFP slot: 1000Base-SFP
|
|
LED Indicator |
Power Supply Indicator, Port Indicator
|
|
Switch Property |
Transmission mode: store and forward MAC address: 8K Packet buffer size: 1Mbit Backplane bandwidth: 7.6G Switch time delay: <10μs
|
|
Power Requirement |
12~48VDC, 4-pin 7.62mm pitch terminal blocks Dual power supply redundancy, non-polarity, reverse connection protection
|
|
Environmental Limit |
Operating temperature range: -40~75℃ Storage temperature range: -40~85℃ Relative humidity: 5%～95%（no condensation）
|
|
Physical Characteristic |
Housing: IP30 protection, metal Installation: DIN-Rail mounting or wall mounting Dimension (W x H x D): 53mm×136mm×105mm
|
|
Industrial Standard |
IEC 61000-4-2 (ESD), Level 4 Air discharge: ±15kV Contact discharge: ±8kV
IEC 61000-4-4 (EFT), Level 4 Power supply: ±4kV Ethernet port: ±2kV Relay: ±4kV
IEC 61000-4-5 (Surge), Level 4 Power supply: common mode±4kV, differential mode±2kV Ethernet port:±2kV Relay: common mode±4kV, differential mode±2kV
IEC 61000-4-6 (CS), Level 3 Test level: 10V Frequency range: 180kHz-80MHz
Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
|
|
Certification |
CE, FCC, RoHS |
